0.787" 20mm Hss Titanium Roughing End Mills Set HRC55 RLD Tools

Place of Origin China
Brand Name RLD Tools
Model Number HRC55
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 20000pcs/month
Product Details
Product Name HRC55 Roughing End Mill 20mm Coating AlTiSiN/Others
Raw Material WF25 Flute Diameter 20mm
Flute Length 45mm Overall Length 100mm
High Light

0.787" 20mm titanium roughing end mill set

,

20mm titanium roughing end mill set HRC55

,

hss roughing end mill

Leave a Message
Product Description

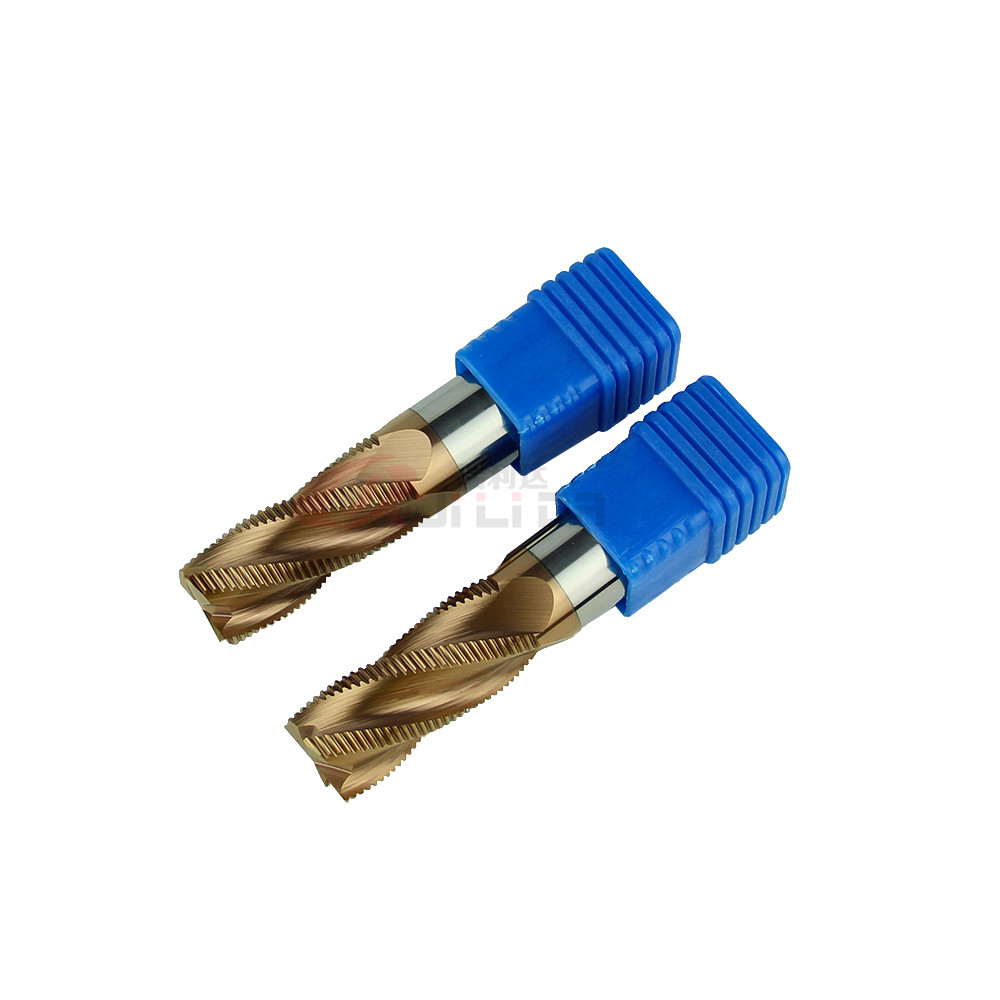

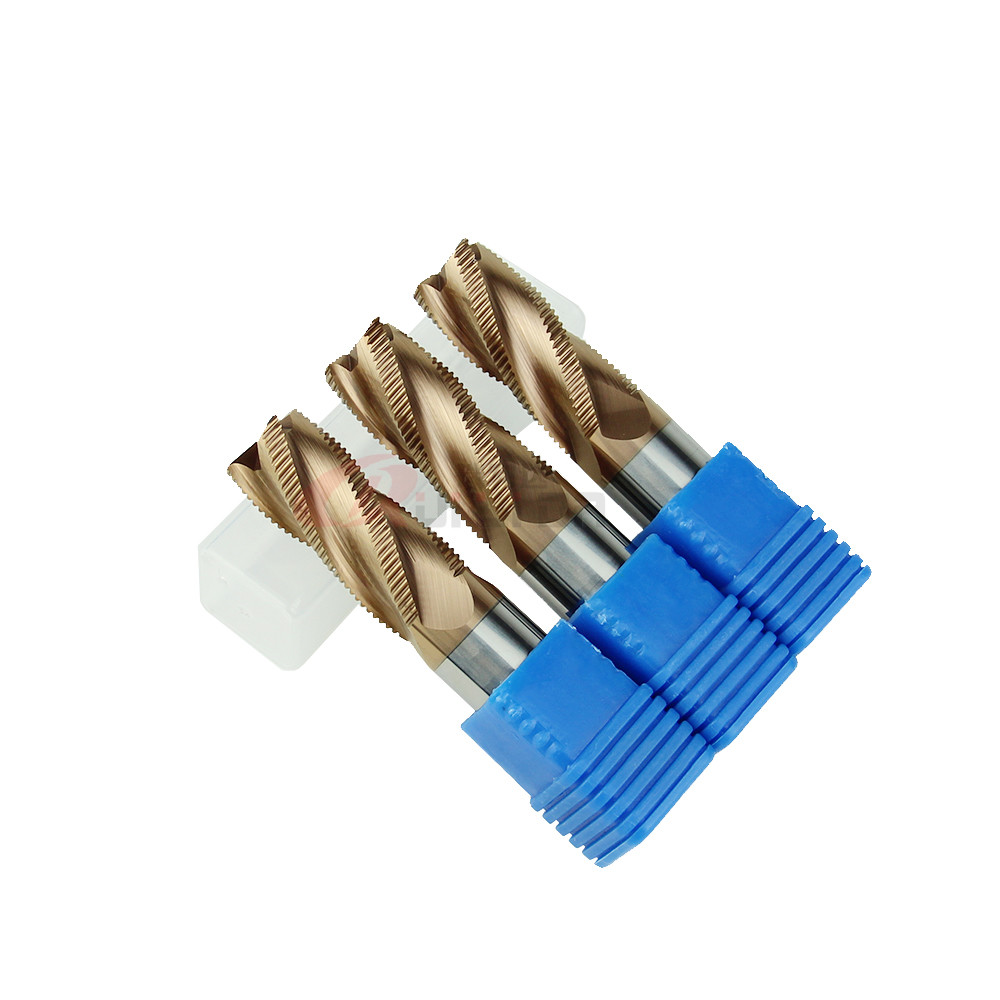

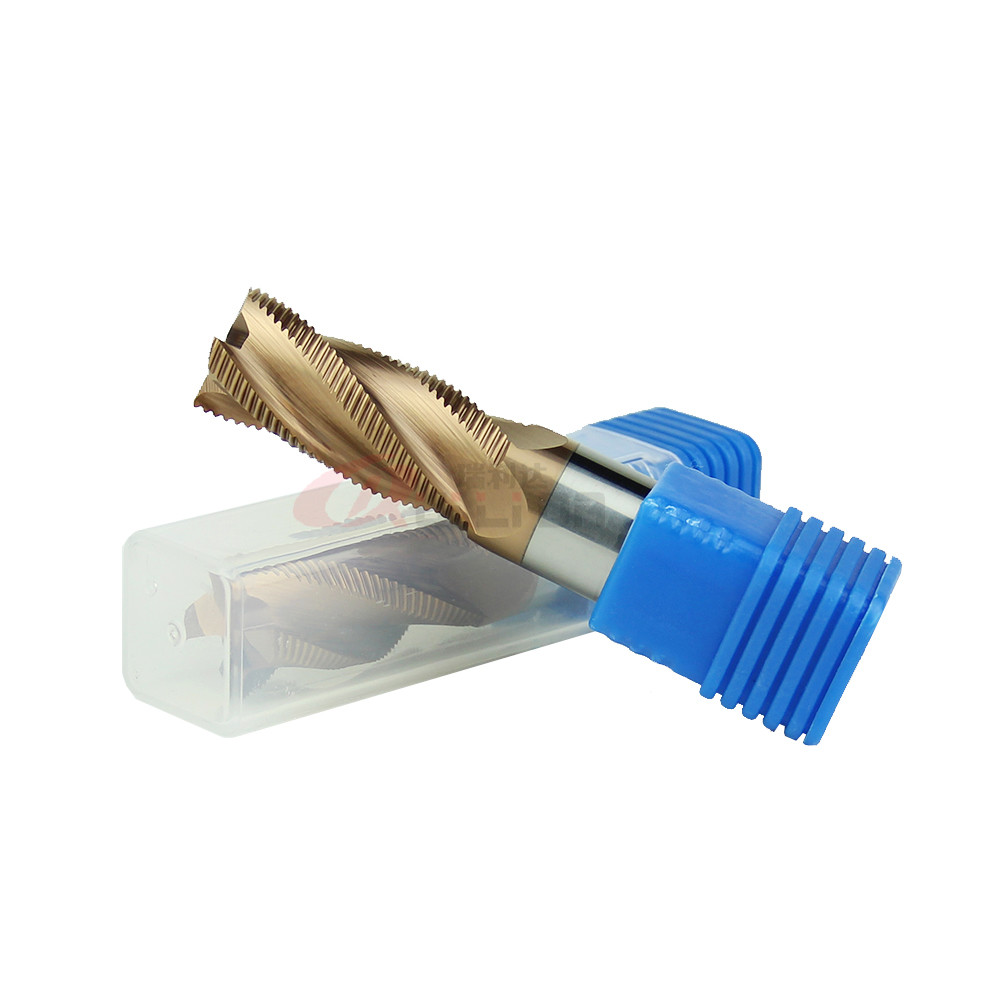

HRC55 Roughing End Mill Cutter For Steel 20mm Solid Carbide Roughing End Mills



For Faster Milling & Toughest Jobs.



Designed for high production metal removal.



These carbide rougher's are designed with proprietary knuckle geometry.



This design maximizes strength at the cutting edge to remove the maximum amount of material with minimal vibration or chatter.



Product name

 HRC55 4 Flutes Roughing End Mill for Steel 20mm

Feature High efficiency for roughing milling
Suitable for Carbon steel, alloy steel, etc.
Machine type CNC Milling Machine
Flutes 4
Coating  AlTiSiN/customized
Helix angle 35 degree
Co 12%
HRA 92.2
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application



HRC50



YG10X



0.6μm



91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45



HRC55



WF25



0.6μm



92.2

Cast Iron, Alloy Steel, General steel under hardness HRC50



HRC60



GU25UF



0.4μm

92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55



HRC65



GU092



0.2μm

93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





HRC55 Roughing End Mill for Steel

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
6 50 15 6 4
8 60 20 8 4
10 75 25 10 4
12 75 30 12 4
14 100 45 14 4
16 100 45 16 4
18 100 45 18 4
20 100 45 20 4

0.787" 20mm Hss Titanium Roughing End Mills Set HRC55 RLD Tools 0



                                                                                FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer specialized in producing

carbide end mills, carbide drill bits, and carbide reamers.



2. Which CNC grinding machine do you use?

All of our end mills are produced by ANCA & WALTER machine.

The stability of tolerance can be assured.



3. How do you usually dispatch the tools?

We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.

For large quantities, we can send by air or by sea.



4. How about the delivery time?

We can dispatch the stock goods within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

It is around 7-10 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.



7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
