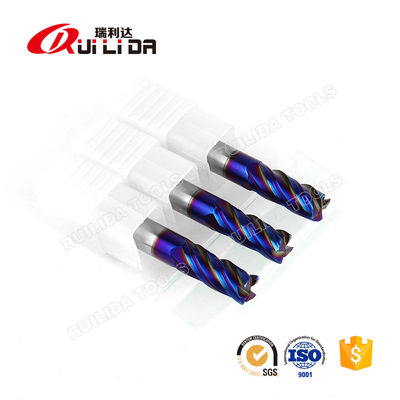

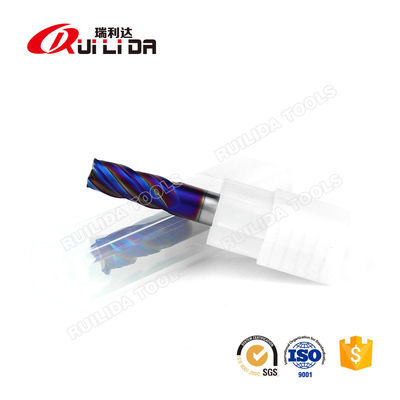

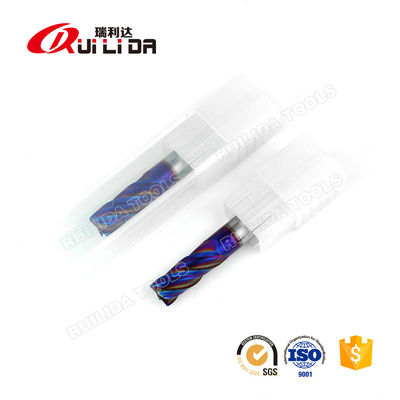

10mm 3/8" Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius

Place of Origin China
Brand Name RLD Tools
Model Number HRC65
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs end mill in a plastic tube, ten pieces a bundle, then put in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product HRC65 4 Flute Solid Carbide Corner Radius End Mill Flute Diameter 10R0.5
Flute Length 25mm Overall Length 75mm
Shank Dia 10mm Material GU092
Coating Blue Nano Coating Suitable For Hardened Steel Under Hardness HRC65
High Light

3/8 end mill .125 radius

,

10mm 3/8" Carbide Corner Radius End Mills

,

10mm corner rounding end mill

Leave a Message
Product Description

HRC65 4 Flute Solid Carbide Corner Radius End Mill For Hardened Steel Radius Cutter Mill



Product name RLD HRC65 corner radius end mill 10R0.5
Size 10R0.5*25*75*10D*4F
Suitable for  Alloy steel, titanium, hardened steel, HRC65, etc.
Machine type CNC milling machine
Flutes 4
Coating  Bule Nano
Helix angle 35°
Co 9%
HRA 93.5
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
The coating also can be customized





RLD Corner Radius End Mill Standard Size
HRC65
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
2 (R0.2, 0.5) 50 5 4 4
3 (R0.2, 0.5) 50 8 4 4
4 (R0.2, 0.5) 50 10 4 4
4 (R0.2, 0.5) 75 12 4 4
4 (R0.2, 0.5) 100 16 4 4
5 (R0.5,1) 50 13 6 4
6 (R0.5,1) 50 15 6 4
6 (R0.5,1) 75 18 6 4
6 (R0.5,1) 100 24 6 4
8 (R0.5,1) 60 20 8 4
8 (R0.5,1) 75 24 8 4
8(R0.5,1) 100 32 8 4
10 (R0.5,1) 75 25 10 4
10 (R0.5,1) 100 30 10 4
12 (R0.5,1) 75 30 12 4
12 (R0.5,1) 100 36 12 4



10mm 3/8" Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius 0

                                                     FAQ



1. Can this end mill be used for cutting the hardened mold steel.

Yes, it can be used for cutting the heated mold steel under the hardness HRC65.



2. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.



3. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & WALTER machine.



4. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.



5. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



6. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



7. Can you produce special carbide tools?

Yes, we can.
