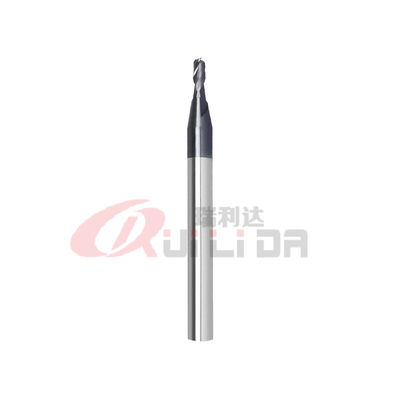

1/8" 1/16" 2mm Solid Carbide End Mill 2 Flute Side Milling Cutter General Purpose HRC50

Place of Origin Jiangsu, China
Brand Name RLD Tools
Model Number HRC50-2mm
Minimum Order Quantity 1
Price 2USD/negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 6-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product HRC50 2 Flute 2mm Carbide Square Endmill Raw Material ZY10EF
Flute Number 2 Diameter 2mm
Flute Length 5mm Overall Length 50mm
Shank Diameter 4mm Application Iron, Steel
High Light

1/8 carbide end mill

,

1/16 carbide end mill

,

side cutting end mill

Leave a Message
Product Description

General Purpose HRC50 2 Flute 2mm Carbide Square Endmill AlTiN Coating Side Milling Cutter



2 flute is suitable for slot milling



For standard metric sizes, we usually prepare in stock.



Product name RLD HRC50 2 flutes 2mm square end mill
Specification 2*5*50*4D*2F
Suitable for   Alloy steel, iron, cast iron, stainless steel, etc.
Machine type CNC milling machine
Flutes 2
Coating   AlTiN/Others
Helix 35 degree
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.





                                   RLD HRC50 Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2.5 4 2/4
1.5 50 4 4 2/4
2 50 5 4 2/4
2.5 50 6.5 4 2/4
3 50 7.5 3 2/4
3 50 7.5 4 2/4
3.5 50 9 4 2/4
4 50 10 4 2/4
4 75 14 4 2/4
4 100 18 4 2/4
5 50 13 5 2/4
5 50 13 6 2/4
6 50 15 6 2/4
6 75 21 6 2/4
6 100 27 6 2/4
8 60 20 8 2/4
8 75 30 8 2/4
8 100 35 8 2/4
10 75 25 10 2/4
10 100 40 10 2/4
12 75 30 12 2/4
12 100 45 12 2/4
14 100 45 14 2/4
16 100 45 16 2/4
18 100 45 18 2/4
20 100 45 20 2/4
6 150 35 6 2/4
8 150 50 8 2/4
10 150 55 10 2/4
12 150 60 12 2/4
14 150 65 14 2/4
16 150 65 16 2/4
18 150 65 18 2/4
20 150 75 20 2/4

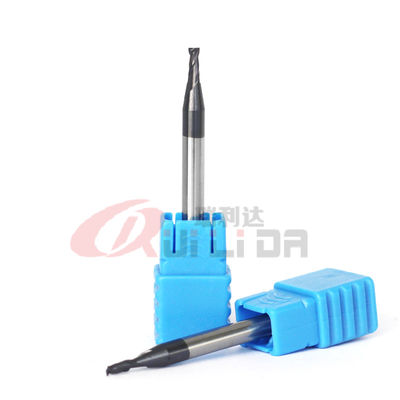

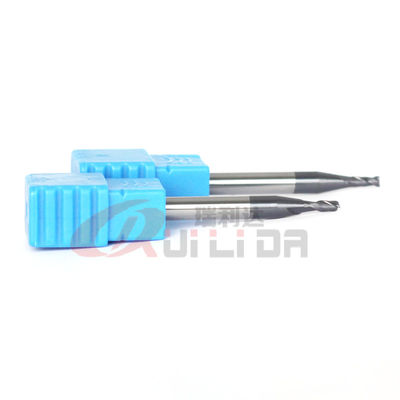

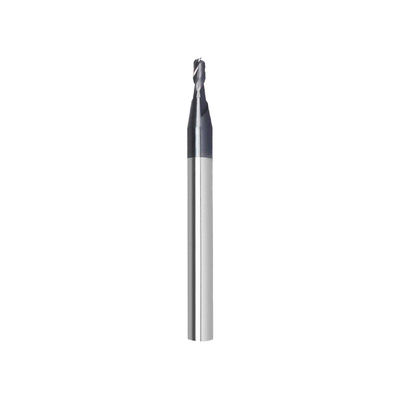

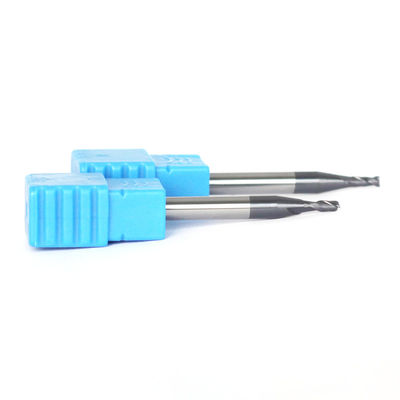

More pictures

1/8" 1/16" 2mm Solid Carbide End Mill 2 Flute Side Milling Cutter General Purpose HRC50 0

                                                      FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & WALTER machine.

ANCA is from Australia.

WALTER is from Germany.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

We also can send products to your shipping agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



8. Can you do OEM?

Yes, we can.



12. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
