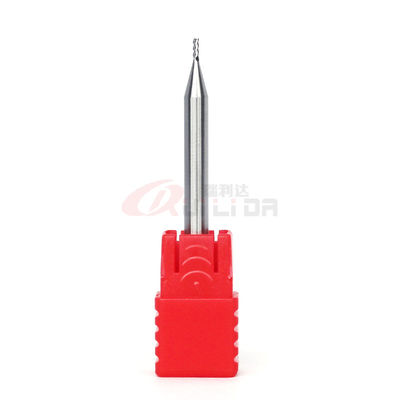

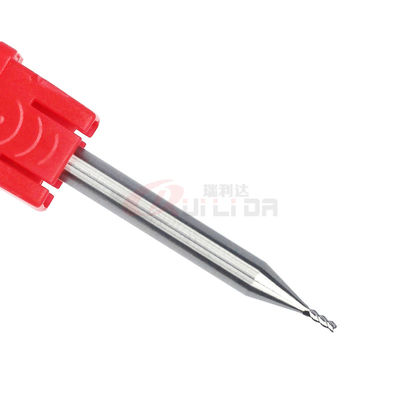

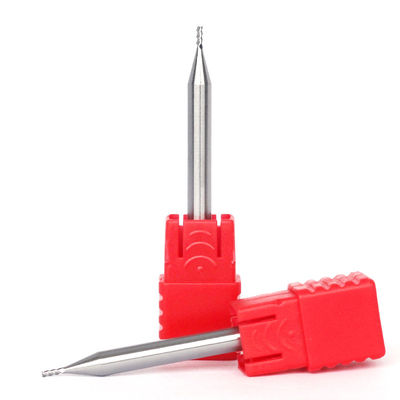

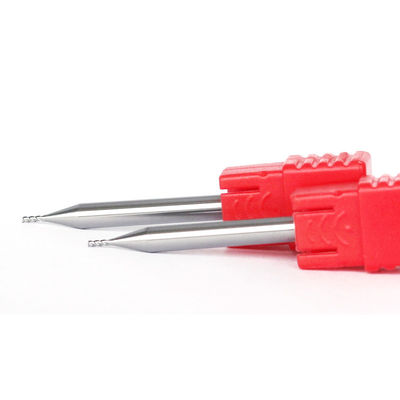

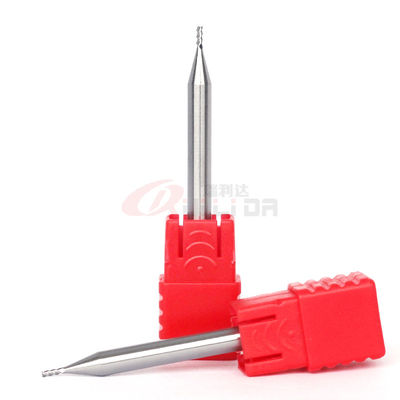

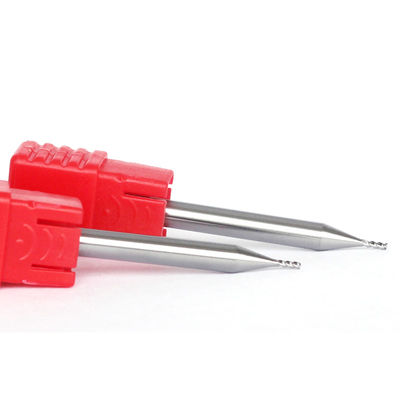

40 Degree Helix Solid Carbide Square End Mill Bits For Aluminum 1mm For Finishing

Place of Origin China
Brand Name RLD Tools
Model Number HRC555-1mm
Minimum Order Quantity 1
Price 2.6USD
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product Name HRC55 1mm Flat End Mill For Alu Flute Dia 1mm
Flute Length 3mm Overall Length 50mm
Shank Dia 4mm Flute Number 3
Origin Jiangsu, China Brand RLD
Helix 40 Suitable Finishing
High Light

40 degree helix end mills

,

40 degree helix solid carbide square end mill bits

,

end mill bits for cutting aluminum

Leave a Message
Product Description

HRC55 CNC 3 Flute 40 Helix Solid Tungsten Carbide Flat Endmill 1mm Aluminum Cutter for Finishing



Product name RLD HRC55 3 flutes 1mm square end mill for Aluminum
Size  1×3×50×4D×3F
Suitable for  Finish Milling
Feature  Smooth surface finishing without milling mark
Flute Number  3
Coating  Uncoated
Helix angle  40°
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to the requirements





RLD Square End Mill for Aluminium Standard Size
HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 2/3
2 50 6 4 2/3
3 50 9 4 2/3
4 50 12 4 2/3
4 75 16 4 2/3
4 100 20 4 2/3
6 50 18 6 2/3
6 75 24 6 2/3
6 100 30 6 2/3
8 60 24 8 2/3
8 75 32 8 2/3
8 100 40 8 2/3
10 75 30 10 2/3
10 100 40 10 2/3
12 75 36 12 2/3
14 100 45 14 2/3
16 100 45 16 2/3
18 100 45 18 2/3
20 100 45 20 2/3

40 Degree Helix Solid Carbide Square End Mill Bits For Aluminum 1mm For Finishing 040 Degree Helix Solid Carbide Square End Mill Bits For Aluminum 1mm For Finishing 1

                                       FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which was established in 2011.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Can you do OEM?
Yes, we can



7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



8. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.



9. What kind of grinding machines are you using now?
All of our end mills are produced by ANCA (Australia) & WALTER(Germany) machines.



7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same
