5/16" 3/8" 3/16" 1/4" Ball Nose End Mill For Aluminum Stainless Steel Tungsten Carbide

Place of Origin China
Brand Name RLD Tools
Model Number HRC60
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000000pcs/month
Product Details
Product Name HRC60 Ball Nose End Mill 8R4 Diameter 8R4
Flute Length 16mm Overall Length 60mm
Shank Diameter 8mm Coating TiAlN/Customized
Suitable For Stainless Steel, Inconel, Hard Steel, Titanium, Etc Origin Jiangsu, China
High Light

3/16" ball nose end mill

,

5/16 ball nose end mill

,

3/8 carbide ball nose end mill

Leave a Message
Product Description

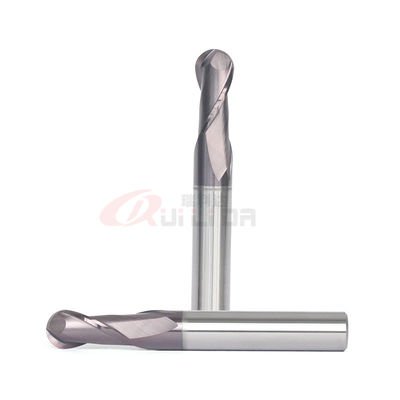

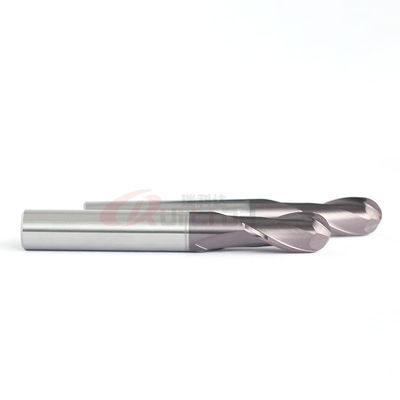

HRC60 Carbide Ball Nose End Mill For Stainless Steel Ball End Mill Sizes 8mm





Product name RLD HRC60 2 flute 8R4 ball nose end mill
Specification  R4*16*60*8D*2F
Suitable for  Stainless Steel, Inconel, Titanium, Super Alloy Steel, etc
Milling type CNC Milling Machine
Flutes 2
Coating  TiAlN/Customized
Helix 30
Co 12%
HRA 92.5
TRS Min(N/mm²) 4200
Flute Tolerance Within 0/-0.015mm
SHank Tolerance  h6





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to the workpiece





       RLD HRC60 2F Carbide Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2



5/16" 3/8" 3/16" 1/4" Ball Nose End Mill For Aluminum Stainless Steel Tungsten Carbide 0





                                                     FAQ

1. Are you a manufacturer or trading company?

We are a manufacturer of carbide end mills established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & WALTER machines.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.

For large amount, we can send by air or by sea.

We also can send the goods to your shipping agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T/Credit Card/PayPal, etc.

We also can accept CNY (Chinese Yuan)



6. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



7. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.



8. How many countries does your company exported to?
We are exporting to more than 45 countries all over the world now.
