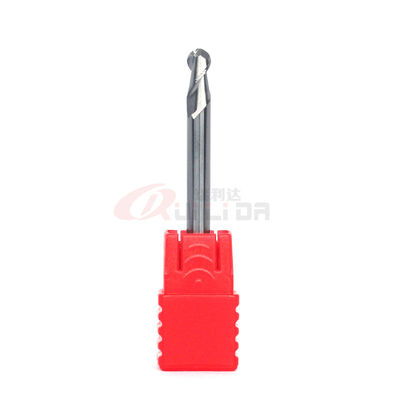

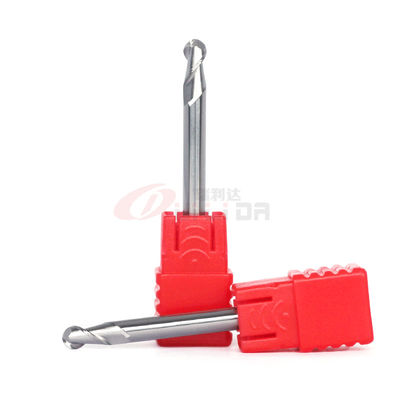

Ball Nose High Feed Aluminum End Mill For Router 2 Flute 1/4" 1/8"

Place of Origin China
Brand Name RLD Tools
Model Number HRC50
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product Name HRC50 2 Flute Ball Nose Aluminum End Mill 4R2 Flute Dia 4R2
Flute Length 8mm Overall Length 50mm
Shank Dia 4mm Shank Tolerance H6
Tolerance 0/-0.015mm Suitable Aluminium, Plastic Material
High Light

high feed aluminum end mill for router 2 Flute

,

1/4 end mill aluminum

,

milling aluminum end mill

Leave a Message
Product Description

HRC50 2 Flute Tungsten Solid Carbide Aluminum End Mill 4mm Ball Nose End Mill



Big Core design
1. Increase rigidity
2. Good stability and concentricity



Sharp Cutting edge
1. Durable and wear-resistant
2. Reduce product burrs during processing
3. High precision and good surface finishing



Product name RLD HRC50 2 Flute Ball Nose Aluminum End Mill 4mm
Size  R2×8×50×4D×2F
Suitable for  Aluminum, plastic material
Feature  Finishing
Flute Number  2
Coating  Uncoated/Oters
Helix angle 30
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized







RLD 2F Ball Nose Aluminum End Mill Standard Size HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
2 50 4 4 2
3 50 6 4 2
4 50 8 4 2
4 75 8 4 2
4 100 8 4 2
6 50 12 6 2
6 75 12 6 2
6 100 12 6 2
8 60 16 8 2
8 75 16 8 2
8 100 16 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2

Ball Nose High Feed Aluminum End Mill For Router 2 Flute 1/4" 1/8" 0

                         FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools established in 2011.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce customized carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Can you do OEM?
Yes, we can.



7. What kind of grinding machines are you using now?

We are using ANCA & WALTER machines.

They are the famous carbide tool grinding machines in the world.



8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.



9. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
