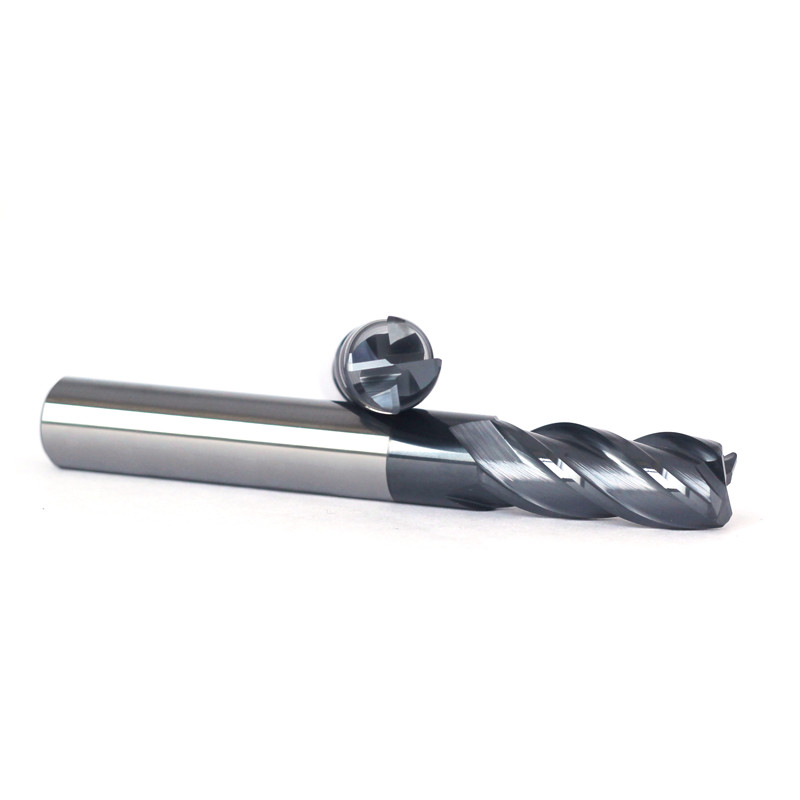

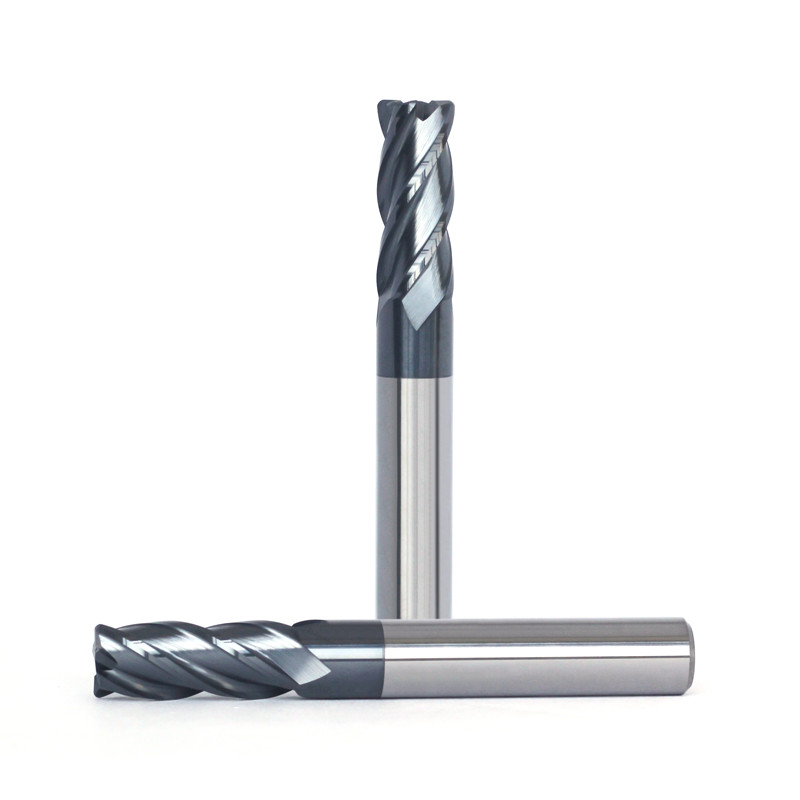

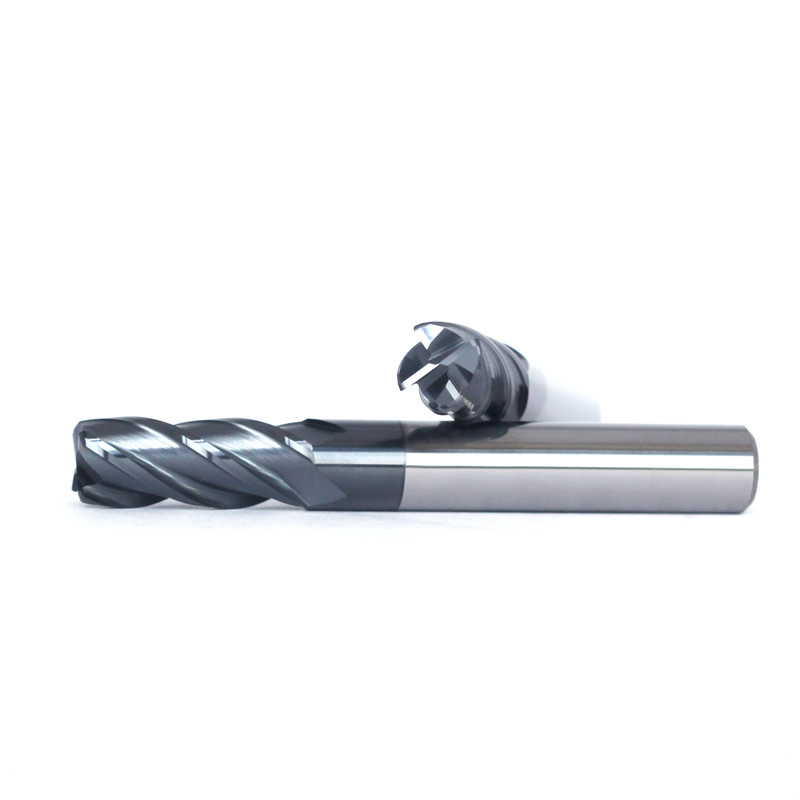

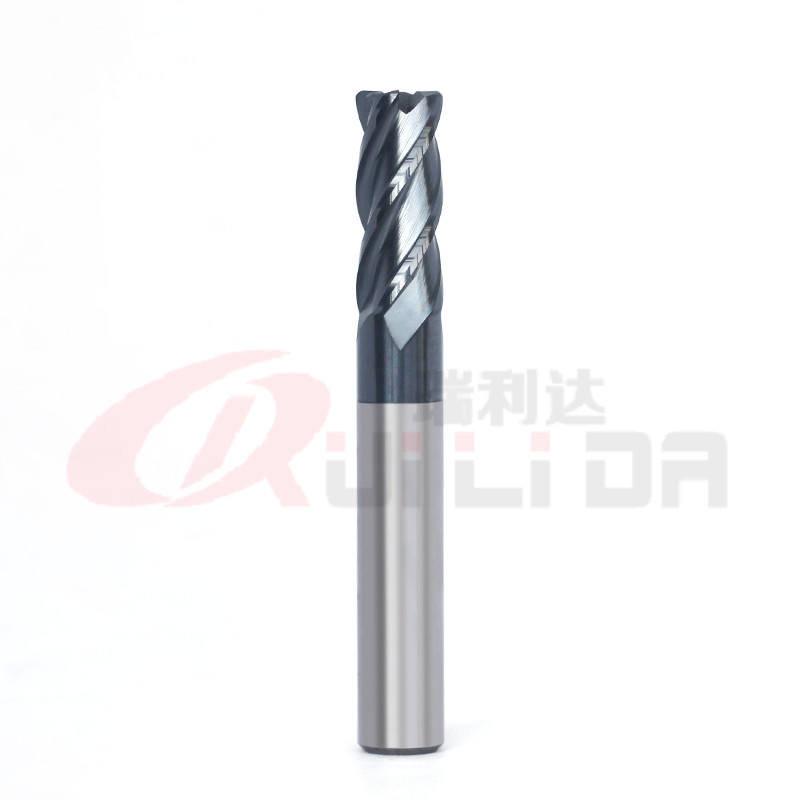

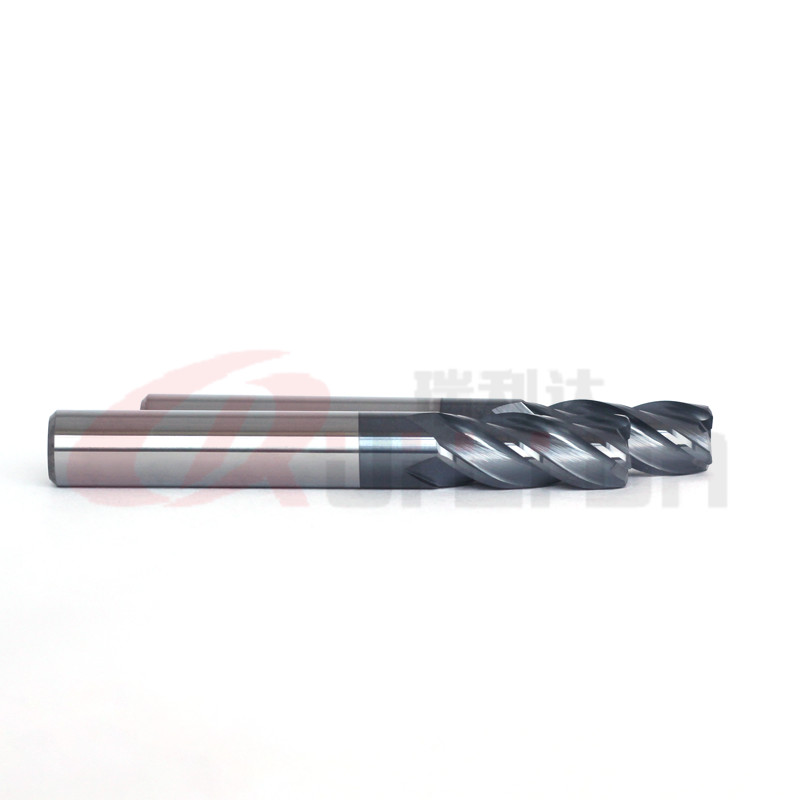

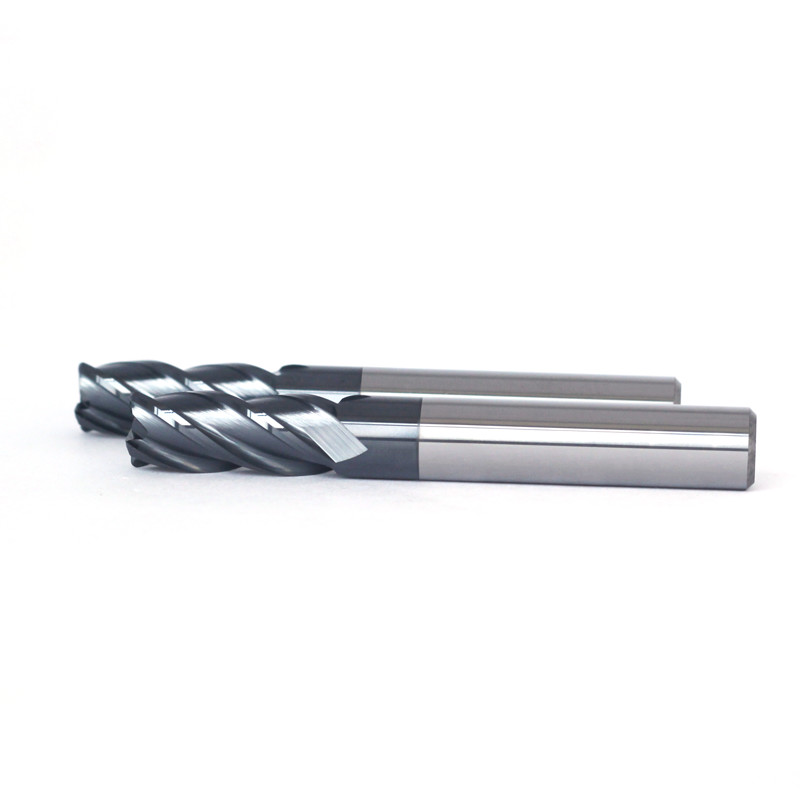

1/2" 3/8" Bull Nose End Mill Metric HRC50 4 Flutes
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC50-10R1 |
| Minimum Order Quantity | 1 |
| Price | EXW 13USD/negotiable |
| Packaging Details | 1pcs end mill in a plastic tube, ten pieces a bundle, then put in carton. |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | HRC50 4 Flutes 10R1 Corner Radius End Mill | Flute Diameter | 10R1 |
|---|---|---|---|
| Flute Length | 25mm | Overall Length | 75mm |
| Shank Dia | 10mm | Material | ZY10EF Carbide |
| Coating | AlTiN | Suitable For | General Steel |
| High Light | 1/2 bull nose end mill HRC50 4 Flutes,metric bull nose end mills HRC50 4 Flutes,3/8" Bull Nose End Mill HRC50 |
||
Product Description
HRC50 4 Flutes 10R1 Tungsten Solid Carbide Corner Radius Coated Bull End Mill for Steel
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.
| Product name | RLD HRC50 corner radius end mill 10R1 |
| Size | 10R1*25*75*10D*4F |
| Suitable for | Pre-hardened steel, stainless steel, iron, cast iron, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiN |
| Helix angle | 35 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
| RLD Corner Radius End Mill Standard Size HRC50 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
| 3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
| 4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
| 4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
| 4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
| 5 (R0.5,1) | 50 | 13 | 6 | 4 |
| 6 (R0.5,1) | 50 | 15 | 6 | 4 |
| 6 (R0.5,1) | 75 | 18 | 6 | 4 |
| 6 (R0.5,1) | 100 | 24 | 6 | 4 |
| 8 (R0.5,1) | 60 | 20 | 8 | 4 |
| 8 (R0.5,1) | 75 | 24 | 8 | 4 |
| 8(R0.5,1) | 100 | 32 | 8 | 4 |
| 10 (R0.5,1) | 75 | 25 | 10 | 4 |
| 10 (R0.5,1) | 100 | 30 | 10 | 4 |
| 12 (R0.5,1) | 75 | 30 | 12 | 4 |
| 12 (R0.5,1) | 100 | 36 | 12 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
ANCA is imported from Australia, is imported from Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.
We also can send products to your shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.
7. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
11. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.
12. Do you have any discounts?
Yes, more quantity will enjoy more discount.
