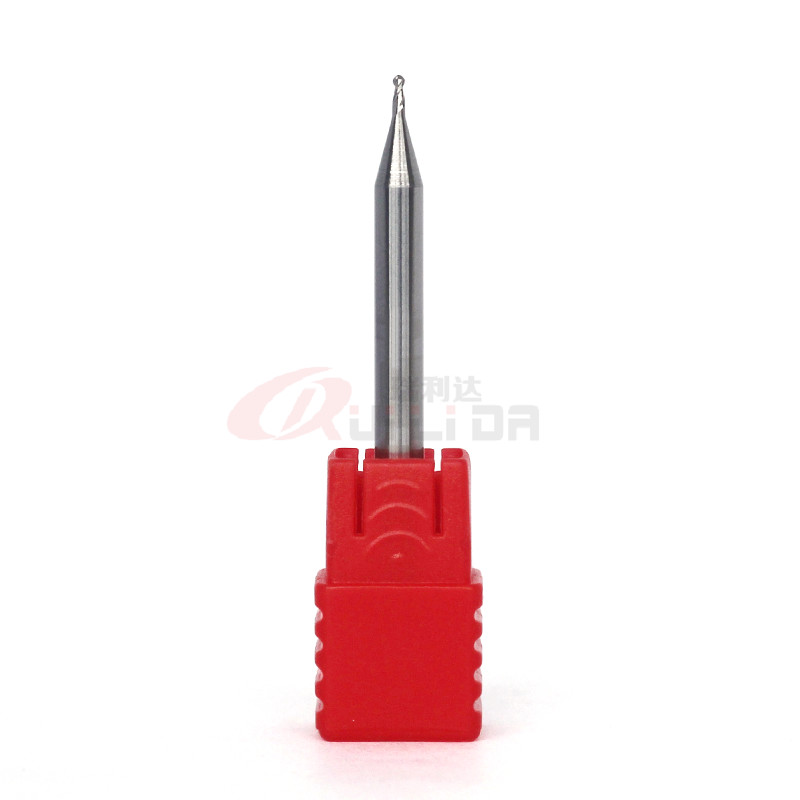

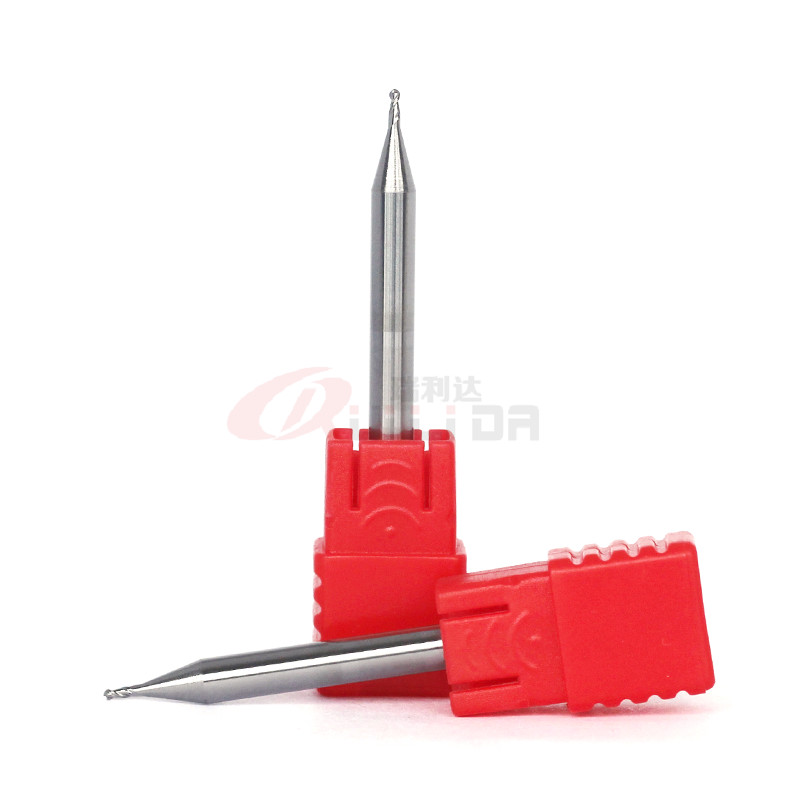

Cnc 2 Flute End Mill Aluminum 1mm Ball Nose HRC50
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 2 Flute Ball Nose Aluminum End Mill 1R0.5 | Flute Dia | 1R0.5 |
|---|---|---|---|
| Flute Length | 2mm | Overall Length | 50mm |
| Shank Dia | 4mm | Flute Number | 2 |
| Helix | 30° | Suitable | Aluminium, Brass, Resin, Plastic, Etc |
| Carbide Rod | YG10X | ||
| High Light | 2 flute end mill aluminum 1mm Ball Nose HRC50,cnc end mills for aluminum,2 flute end mill for aluminum |
||
Product Description
HRC50 2 Flute Tungsten Solid Carbide Aluminum End Mill 1mm Ball Nose End Mill
| Product name | RLD HRC50 2 Flute Ball Nose Aluminum End Mill |
| Size | R0.5×2×50×4D×2F |
| Suitable for | 3D Surface Finishing |
| Feature | Finishing |
| Flute Number | 2 |
| Coating | Uncoating |
| Helix angle | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
| RLD 2F Ball Nose Aluminum End Mill Standard Size HRC50 | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 2 |
| 2 | 50 | 4 | 4 | 2 |
| 3 | 50 | 6 | 4 | 2 |
| 4 | 50 | 8 | 4 | 2 |
| 4 | 75 | 8 | 4 | 2 |
| 4 | 100 | 8 | 4 | 2 |
| 6 | 50 | 12 | 6 | 2 |
| 6 | 75 | 12 | 6 | 2 |
| 6 | 100 | 12 | 6 | 2 |
| 8 | 60 | 16 | 8 | 2 |
| 8 | 75 | 16 | 8 | 2 |
| 8 | 100 | 16 | 8 | 2 |
| 10 | 75 | 20 | 10 | 2 |
| 10 | 100 | 20 | 10 | 2 |
| 12 | 75 | 24 | 12 | 2 |
| 14 | 100 | 28 | 14 | 2 |
| 16 | 100 | 32 | 16 | 2 |
| 18 | 100 | 36 | 18 | 2 |
| 20 | 100 | 40 | 20 | 2 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
We also can send the goods to your shipping agent in China.
3. How about the delivery time?
We can dispatch within 2 business days after receiving payment for stock items.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
4. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
5. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. What kind of grinding machines are you using now?
All of our carbide tools are produced by ANCA & machine.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
9. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.
