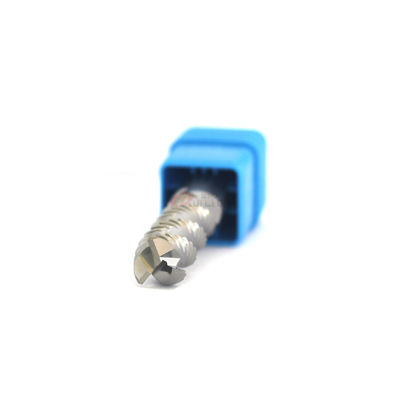

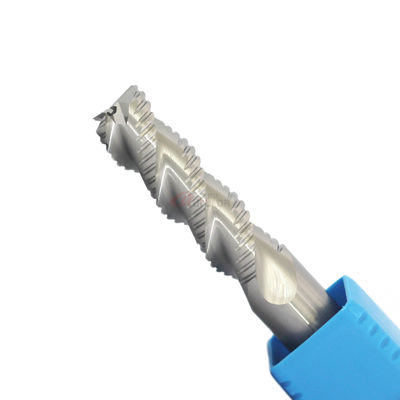

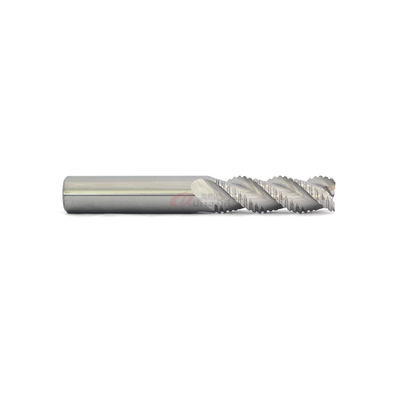

16mm 14mm 9/16" Roughing End Mill For Aluminium Cutting End Mills 3 Flutes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 3 Flute 14mm Aluminum End Mill For Rough Milling | Flute Dia | 14mm |
|---|---|---|---|
| Flute Length | 45mm | Overall Length | 100mm |
| Shank Dia | 14mm | Application | Aluminum, Brass, Soft Metal, Etc. |
| Pitch | Coarse Pitch | Shank Tolerance | H6 |
| High Light | 14mm 9/16" roughing end mill for aluminium,aluminium cutting end mills 3 Flutes HRC50,16mm roughing end mill HRC50 RLD |
||
Product Description
HRC50 Aluminum End Mill 3 Flutes 14mm Roughing End Mill For Aluminum
| Product name |
HRC50 Aluminum End Mill 14mm Roughing End Mill |
| Feature | Coarse pitch with high efficiency |
| Suitable for | Soft material |
| Machine type | CNC Milling Machine |
| Flutes | 3 |
| Coating | Uncoated |
| Helix angle | 45° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
|
HRC50 |
YG10X |
0.6μm |
91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
|
HRC55 |
WF25 |
0.6μm |
92.2 |
Cast Iron, Alloy Steel, General steel under hardness HRC50 |
|
HRC60 |
GU25UF |
0.4μm |
92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
|
HRC65 |
GU092 |
0.2μm |
93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC50 Roughing End Mill for Aluminum |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |
| 14 | 100 | 45 | 14 | 3 |
| 16 | 100 | 45 | 16 | 3 |
| 18 | 100 | 45 | 18 | 3 |
| 20 | 100 | 45 | 20 | 3 |
FAQ
1. Where is your factory?
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
4. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
5. Do you prepare 3 flutes roughing aluminum end mill in stock?
Yes, we usually prepare standard metric sizes in stock.
6. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
7. Can you produce special carbide tools?
Yes, we can produce the customized tools according to the drawings or samples.
