1/2" 3/32" CNC Extra Long End Mill Cutter 2mm 10mm Radius Cutter Mill With 100mm OAL

Place of Origin China
Brand Name RLD Tools
Model Number HRC60-12R2
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic tube, ten pieces a bundle, then put in carton.
Delivery Time 6-8 business days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HRC60 Corner Radius End Mill 12R2 Flute Diameter 12R2
Flute Length 45mm Overall Length 100mm
Shank Dia 12mm Tolerance 0/-0.02mm
Feature Variable Helix Angle Origin Jiangsu, China
High Light

1/2" 3/32" CNC Extra Long End Mill Cutter

,

extra long 1/2 end mill HRC60-12R2

,

3/32" CNC Extra Long End Mill Cutter 2mm

Leave a Message
Product Description

HRC60 4 Flute CNC Extra Long End Mill 12R2 Corner Radius End Mill With 100mm OAL



Product name RLD HRC55 corner radius end mill 12R2
Size 12R2*45*100*12D*4F
Suitable for  P20, mold steel, alloy steel stainless steel, etc
Machine type CNC milling machine
Flutes 4
Coating  TiAlN
Helix angle 35°
Co 12%
HRA 92.5
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
The coating also can be customized according to the requirement







RLD Corner Radius End Mill Standard Size
HRC60

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
2 (R0.2, 0.5) 50 5 4 4
3 (R0.2, 0.5) 50 8 4 4
4 (R0.2, 0.5) 50 10 4 4
4 (R0.2, 0.5) 75 12 4 4
4 (R0.2, 0.5) 100 16 4 4
5 (R0.5,1) 50 13 6 4
6 (R0.5,1) 50 15 6 4
6 (R0.5,1) 75 18 6 4
6 (R0.5,1) 100 24 6 4
8 (R0.5,1) 60 20 8 4
8 (R0.5,1) 75 24 8 4
8(R0.5,1) 100 32 8 4
10 (R0.5,1) 75 25 10 4
10 (R0.5,1) 100 30 10 4
12 (R0.5,1) 75 30 12 4
12 (R0.5,1) 100 36 12 4

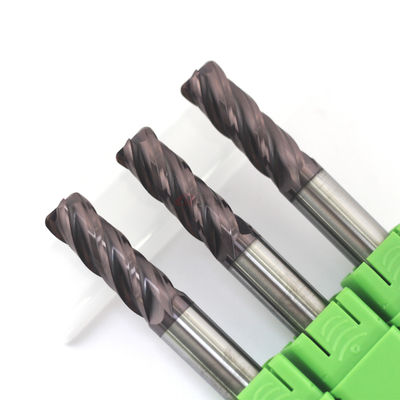

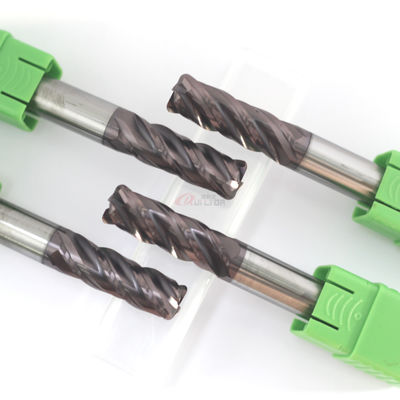

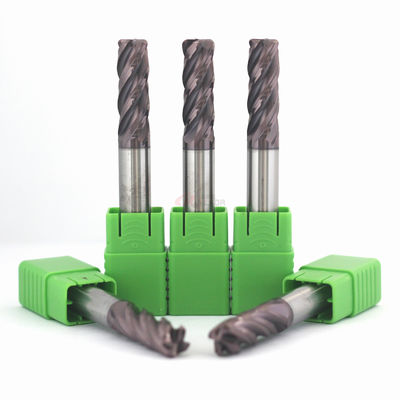

1/2" 3/32" CNC Extra Long End Mill Cutter 2mm 10mm Radius Cutter Mill  With 100mm OAL 01/2" 3/32" CNC Extra Long End Mill Cutter 2mm 10mm Radius Cutter Mill  With 100mm OAL 1





                                                     FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools was established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA &  machines.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.

Our company also can ship the parcels to your forwarder in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. What's the advantage of the variable helix and unequal flute spacing?

It's good for chip removal and anti-vibration.



7. How do you ensure the stability of quality?

Our company seldom change rod suppliers.

And we only sell the tools produced by ourselves.

So for the same grade, our quality is always the same.



8. Where is your factory?
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
