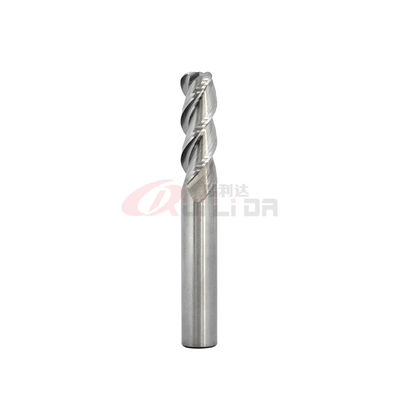

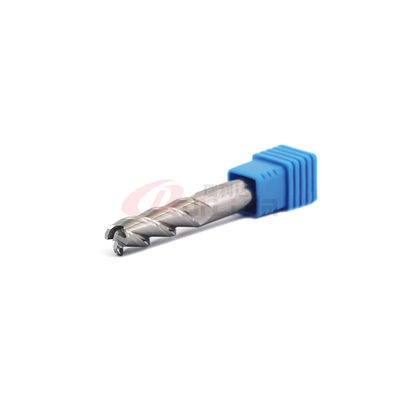

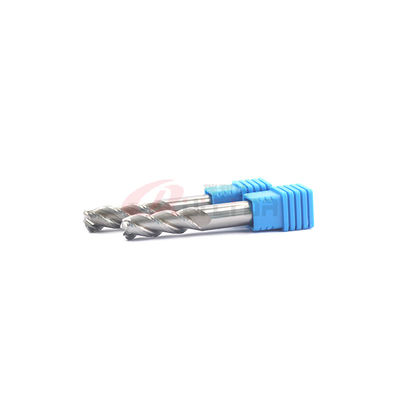

3/8" 5/16" 3 Flute End Mill 1/4 Shank Sheet Metal Corner Radius Cutter HRC50
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 3 Flute Corner Radius Aluminum End Mill 8R1 | Flute Dia | 8R1 |
|---|---|---|---|
| Flute Length | 24mm | Overall Length | 60mm |
| Shank Dia | Mm | Tolerance | 0/0.02 |
| Helix | 45 Degree | Brand | RLD |
| High Light | 5/16 3 flute end mill 1/4 shank sheet metal,1/4 shank sheet metal corner radius cutter,3/8 3 flute end mill HRC50 RLD |
||
Product Description
HRC50 3 Flute Aluminum End Mill 8R1 Solid Carbide Corner Corner Rounding Tool
The advantage of our Aluminum End Mill with corner radius:
1. Our company only use original carbide rod
2. They are produced by advanced grinding machines ANCA &
3. Stock items with short delivery time.
4. Quality of our end mill can be compared with Korean brands like YG, JJ, etc.
| Product name | RLD HRC50 3 flute Corner Radius Aluminum End Mill 8R1 |
| Size | 8R1×24×60×8D×3F |
| Suitable for | Aluminum, plastic, brass, etc. |
| Feature | Finishing |
| Flute Number | 3 |
| Coating | Uncoated/DLC |
| Helix angle | 45 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
| RLD 3F HRC50 Corner Radius Aluminum End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1R0.2 | 50 | 3 | 4 | 3 |
| 2R0.2 | 50 | 6 | 4 | 3 |
| 3R0.2, 0.5 | 50 | 9 | 4 | 3 |
| 4R0.2, 0.5 | 50 | 12 | 4 | 3 |
| 6R0.5, 1 | 50 | 18 | 6 | 3 |
| 6R0.5, 1 | 75 | 24 | 6 | 3 |
| 60.5, 1 | 100 | 30 | 6 | 3 |
| 8R0.5, 1 | 60 | 24 | 8 | 3 |
| 8R0.1, 1 | 75 | 32 | 8 | 3 |
| 8R0.5, 1 | 100 | 40 | 8 | 3 |
| 10R0.5, 1 | 75 | 30 | 10 | 3 |
| 10R05, 1 | 100 | 40 | 10 | 3 |
| 12R0.5,1,2,3 | 75 | 36 | 12 | 3 |
| 12R0.5,1,2,3 | 100 | 45 | 12 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Can you do OEM?
Yes, we can make the laser engraving and customized label.
6. What kind of grinding machines are you using now?
We are using ANCA & machines for all of our end mills.
7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
