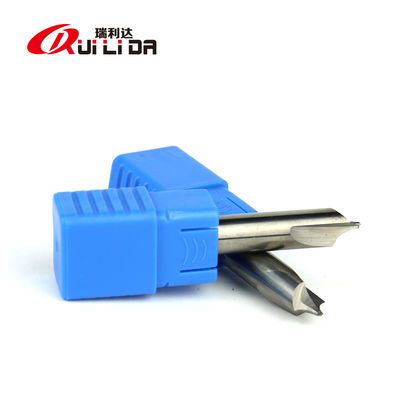

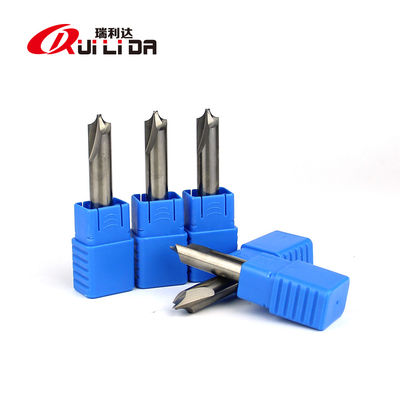

1/8" 1" 1/32" Radius Corner Rounding End Mill Metric 2Fl Concave Radius End Mill 3mm 4mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 2 Flute Solid Carbide Inner Corner Radius End Mill | Size | Can Be Customized |
|---|---|---|---|
| Shank Tolerance | H6 | Origin | Jiangsu ,China |
| High Light | 1 radius corner rounding end mill,1/32 corner rounding end mill HRC50 RLD,1/8 corner rounding end mill HRC50 RLD |
||
Product Description
HRC50 2 Flute Corner Radius End Mill For Aluminum Corner Rounding End Mills For Sale
For corner rounding end mills, we prepare a few sizes in stock.
All of them are produced by ANCA or machine.
Don't need to worry about the precision, the stability of quality.
| Product name | RLD HRC50 Inner Corner Radius End Mill For Aluminum |
| Size | As per requirement |
| Suitable for | Aluminum, plastic, brass, etc. |
| Feature | Finishing |
| Flute Number | 2 |
| Coating | Uncoated |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
Send the goods to your shipping agent in China is also possible.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept CNY.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Do you have any discount for the large quantity?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
