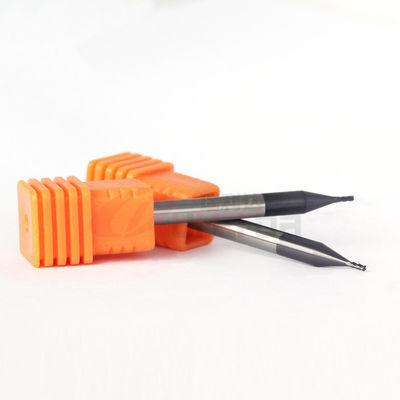

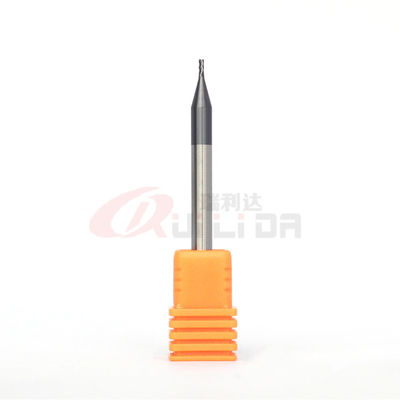

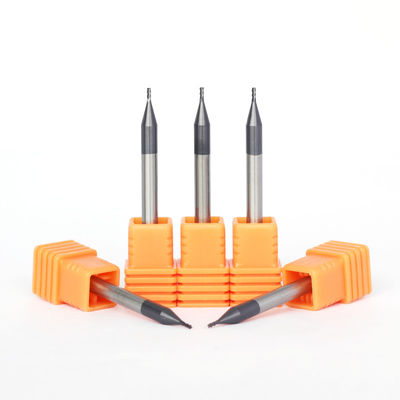

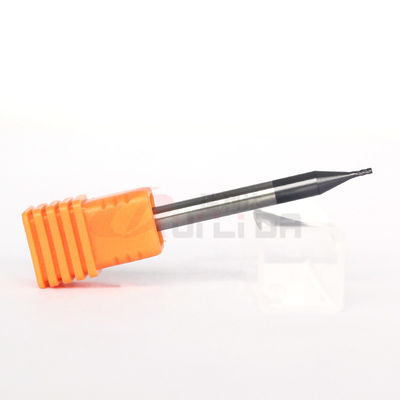

1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom

  • 1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom
  • 1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom
  • 1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom
  • 1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom
  • 1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom
  • 1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom
Place of Origin China
Brand Name RLD Tools
Model Number HRC50-1
Minimum Order Quantity 1
Price 2USD/negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HRC50 Carbide Square End Mill Raw Material Carbide
Flutes 4 Coating AlTiN
Helix 35° Diameter 1mm
Flute Length 2.5mm Overall Length 50
Shank Dia 4mm Application Iron, Cast Iron, Stainless Steel, Pre-hardended Steel, Etc
High Light

1/8 solid carbide end mill

,

1mm 1/25" 1/8" 3/32" Solid Carbide End Mills

,

square bottom end mill
Leave a Message
Product Description





Solid Carbide CNC Milling Cutter 1mm 4 Flutes Square End Mill For Steel With AlTiN Coating



Product name RLD HRC50 4 flutes square end mill
Feature Economic series
Suitable for  Pre-hardened steel, stainless steel, iron, cast iron
Machine type CNC milling machine
Flutes 4
Coating   AlTiN/Customized
Helix 35 degree
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.



1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 01mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 1

                                   RLD HRC50 Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2.5 4 2/4
1.5 50 4 4 2/4
2 50 5 4 2/4
2.5 50 6.5 4 2/4
3 50 7.5 3 2/4
3 50 7.5 4 2/4
3.5 50 9 4 2/4
4 50 10 4 2/4
4 75 14 4 2/4
4 100 18 4 2/4
5 50 13 5 2/4
5 50 13 6 2/4
6 50 15 6 2/4
6 75 21 6 2/4
6 100 27 6 2/4
8 60 20 8 2/4
8 75 30 8 2/4
8 100 35 8 2/4
10 75 25 10 2/4
10 100 40 10 2/4
12 75 30 12 2/4
12 100 45 12 2/4
14 100 45 14 2/4
16 100 45 16 2/4
18 100 45 18 2/4
20 100 45 20 2/4
6 150 35 6 2/4
8 150 50 8 2/4
10 150 55 10 2/4
12 150 60 12 2/4
14 150 65 14 2/4
16 150 65 16 2/4
18 150 65 18 2/4
20 150 75 20 2/4





1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 21mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 3

1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 4





1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 5

Feedback

1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 6

1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 7

1mm 1/25" 1/8" 3/32" Solid Carbide End Mills For Cast Iron CNC Square Bottom 8



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,

Brazil, etc.



7. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.
