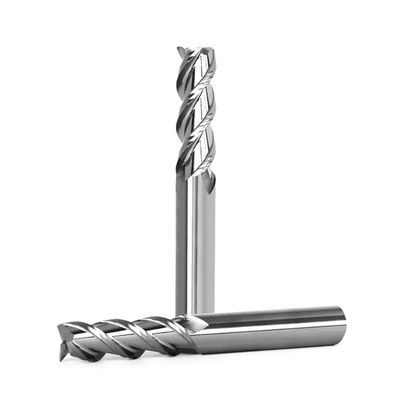

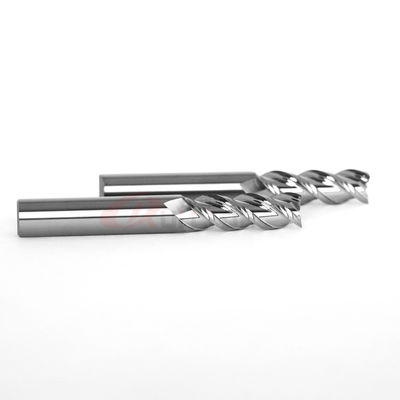

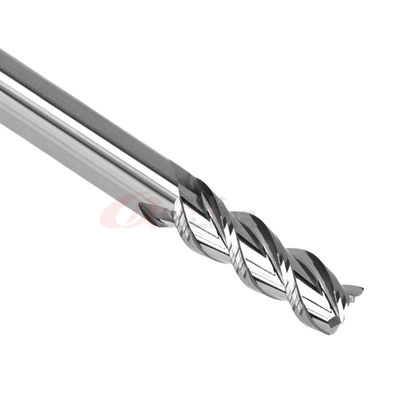

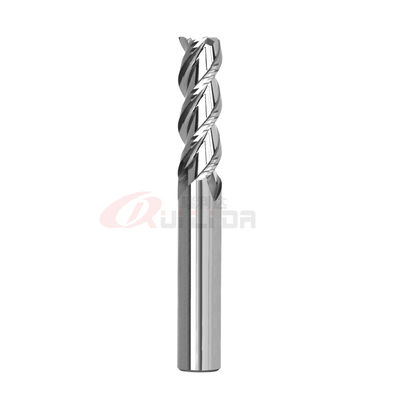

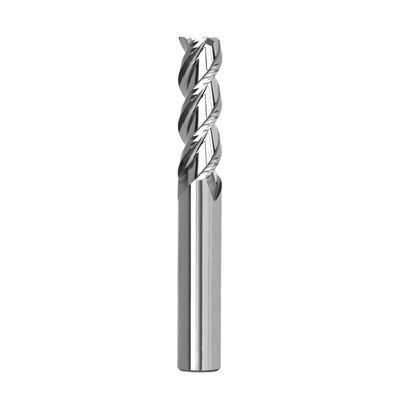

CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8"

  • CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8"
  • CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8"
  • CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8"
  • CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8"
  • CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8"
Place of Origin China
Brand Name RLD Tools
Model Number HRC50-10mm
Minimum Order Quantity 1
Price 9.0USD
Packaging Details 1pcs piece end mill in one plastic tube, ten pieces a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 80000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Flute 10mm Square End Mill For Aluminium Flute Dia 10mm
Flute Length 30mm Overall Length 75mm
Shank Dia 10mm Helix 45°
Polishing Yes Suitable For Aluminium, Brass, Acrylic, Resin, Etc.
High Light

1/8 flat end mill

,

3/8 flat end mill bit

,

1/32 flat end mill
Leave a Message
Product Description

HRC50 CNC 3 Flute Solid Flat End Mill 10mm for Aluminum Carbide Milling Cutter





Product name RLD HRC50 3 flutes 10mm aluminum end mill
Size  10×30×75×10D×3F
Suitable for  aluminum, brass, acrylic, resin, etc
Machine type CNC milling machine
Flutes 3
Coating  UIncoated
Helix angle  45°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to the workpiece.





RLD Square End Mill for Aluminium Standard Size
HRC50/55/60
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 2/3
2 50 6 4 2/3
3 50 9 4 2/3
4 50 12 4 2/3
4 75 16 4 2/3
4 100 20 4 2/3
6 50 18 6 2/3
6 75 24 6 2/3
6 100 30 6 2/3
8 60 24 8 2/3
8 75 32 8 2/3
8 100 40 8 2/3
10 75 30 10 2/3
10 100 40 10 2/3
12 75 36 12 2/3
14 100 45 14 2/3
16 100 45 16 2/3
18 100 45 18 2/3
20 100 45 20 2/3

CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8" 0CNC Three Flute End Mill Flat End Mill Bit 3/8" 10mm 1/32" 1/8" 1

                                       FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools was established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machines.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

We also can send the goods to your shipping agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce customized carbide end mills according to your drawings or samples.



7. Can you do OEM?
Yes, we can



8. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



9. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
