3/8" 10mm Cnc Router Aluminium End Mill Corner Radius HRC50 3 Flute
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 3 Flute Corner Radius Aluminum End Mill 10R2 | Flute Dia | 10R2 |
|---|---|---|---|
| Flute Length | 30mm | Overall Length | 75mm |
| Shank Dia | 10mm | Tolerance | 0/0.02mm |
| Origin | Jiangsu ,China | Single Or Double End | Single |
| High Light | 3/8" 10mm cnc router aluminium end mill,10mm cnc router aluminium end mill Corner Radius RLD,10mm 3/8 end mill short flute HRC50 |
||
Product Description

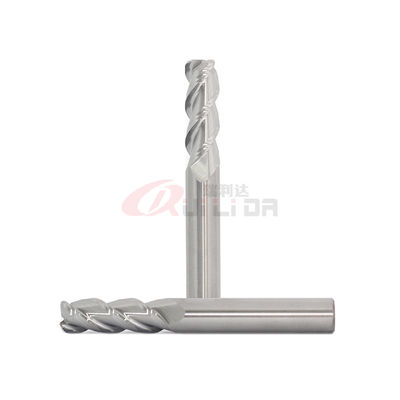

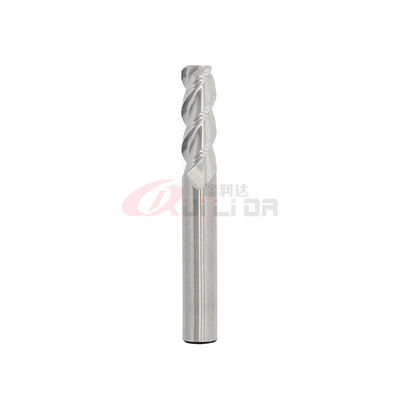

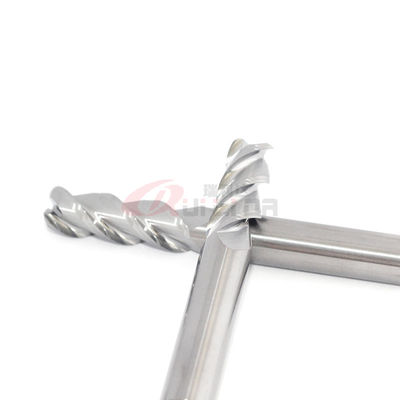

HRC50 3 Flute Aluminum End Mill 10R2 Solid Carbide Corner Radius End Mill
The advantage of our Aluminum End Mill with corner radius:
1. Our company only use original carbide rod
2. They are produced by advanced grinding machines ANCA &
3. Stock items with short delivery time.
4. Quality of our end mill can be compared with Korean brands like YG, JJ, etc.
| Product name | RLD HRC50 3 flute Corner Radius Aluminum End Mill 10R2 |
| Size | 10R2×30×75×10D×3F |
| Suitable for | Aluminum, plastic, brass, acrylic, etc. |
| Feature | Finishing |
| Flute Number | 3 |
| Coating | Uncoated |
| Helix angle | 45 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
| RLD 3F HRC50 Corner Radius Aluminum End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1R0.2 | 50 | 3 | 4 | 3 |
| 2R0.2 | 50 | 6 | 4 | 3 |
| 3R0.2, 0.5 | 50 | 9 | 4 | 3 |
| 4R0.2, 0.5 | 50 | 12 | 4 | 3 |
| 6R0.5, 1 | 50 | 18 | 6 | 3 |
| 6R0.5, 1 | 75 | 24 | 6 | 3 |
| 60.5, 1 | 100 | 30 | 6 | 3 |
| 8R0.5, 1 | 60 | 24 | 8 | 3 |
| 8R0.1, 1 | 75 | 32 | 8 | 3 |
| 8R0.5, 1 | 100 | 40 | 8 | 3 |
| 10R0.5, 1 | 75 | 30 | 10 | 3 |
| 10R05, 1 | 100 | 40 | 10 | 3 |
| 12R0.5,1,2,3 | 75 | 36 | 12 | 3 |
| 12R0.5,1,2,3 | 100 | 45 | 12 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
Send the goods to your shipping agent in China is also possible.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Can you do OEM?
Yes, we can make the laser engraving and customized label.
Laser engraving is free.
6. How many countries does your company export to?
We are exporting to more than 45 countries all over the world now.
