1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm

Place of Origin China
Brand Name RLD Tools
Model Number HRC50
Minimum Order Quantity 1
Price 2-80USD/negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Coating Uncoated/customized
High Light

carbide end mill 1f

,

single flute end mill for plastic HRC50 RLD

,

solid carbide 1/4 inch end mill 0.75 in flutes

Leave a Message
Product Description

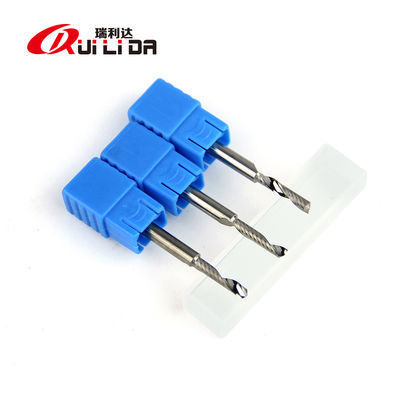

1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 0



Product name RLD HRC50 single flute end mill
Feature Economic series
Suitable for  aluminum, brass, acrylic, etc
Machine type CNC milling machine
Flutes 1
Coating  UIncoated/Customized
Helix angle  30 degree
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.

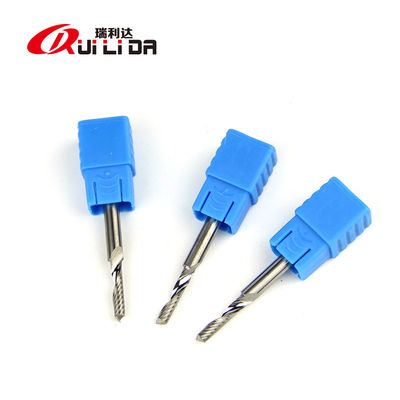

1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 11f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 2







Feedback 1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 3

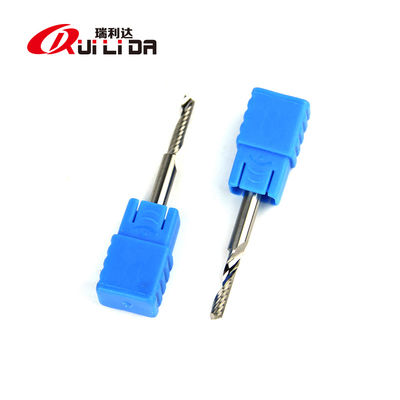

1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 4

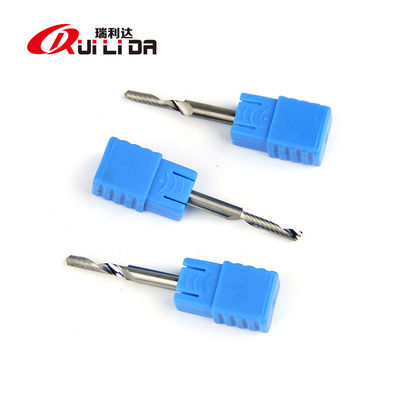

1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 5

1f Single Flute End Mill For Aluminum Plastic Wood Acrylic Carbide 1/4 Inch 6mm 6



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,

Brazil, etc.



7. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.
