2mm 5/16" 3/8" 1/8" Extra Long End Mill Cutter Carbide 4Fl 100mm OAL 12mm
Place of Origin | China |
---|---|
Brand Name | RLD Tools |
Model Number | HRC50-12 |
Minimum Order Quantity | 1 |
Price | 17.5USD/negotiable |
Packaging Details | One piece end mill in a plastic tube, ten pieces a bundle, then in carton. |
Delivery Time | 5-7 work days |
Payment Terms | T/T/PayPal/Credit Card |
Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct | HRC50 Carbide 4 Flutes 12mm Square End Mill | ||
---|---|---|---|
High Light | 3/8 end mill extra long HRC50 RLD,extra long 2mm end mill HRC50 RLD,extra long 5/16 end mill HRC50 RLD |

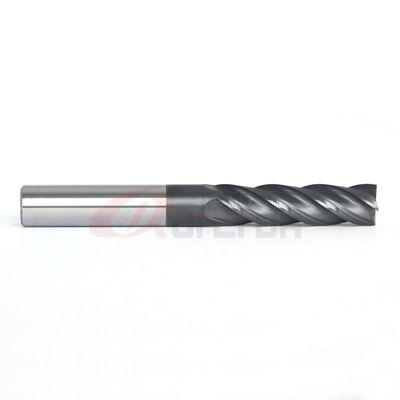

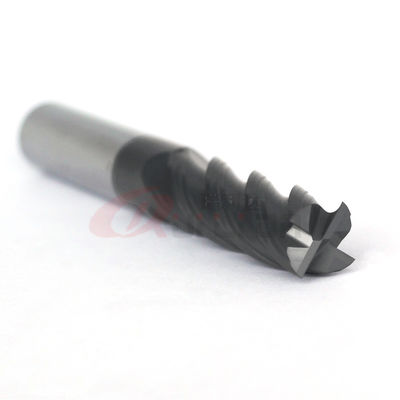

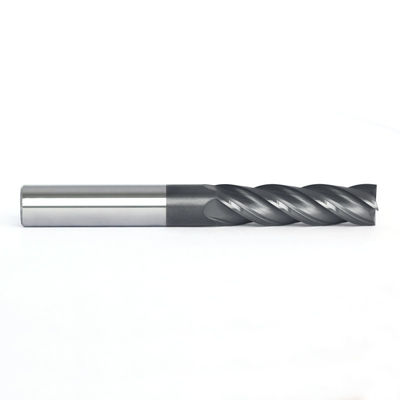

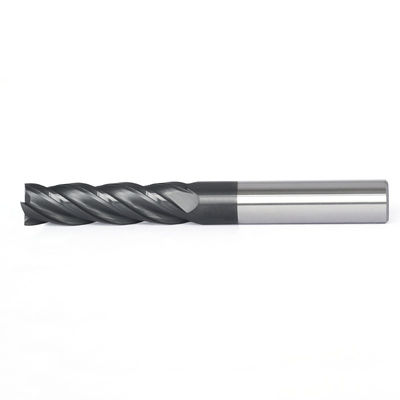

HRC50 4 Flutes Extra Long 100mm OAL 12mm Carbide End Mill
Cutter with AlTiN coating for Alloy Steel Manufacturer
Product name | RLD HRC50 4 flutes square end mill |
Specification | 12*45*100*12D*4F |
Suitable for | Alloy steel, iron, cast iron, stainless steel, etc. |
Machine type | CNC milling machine |
Flutes | 4 |
Coating | AlTiN/Others |
Helix | 35 degree |
Co | 10% |
HRA | 91.8 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized according to your requirement. |
RLD HRC50 Square End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2.5 | 4 | 2/4 |
1.5 | 50 | 4 | 4 | 2/4 |
2 | 50 | 5 | 4 | 2/4 |
2.5 | 50 | 6.5 | 4 | 2/4 |
3 | 50 | 7.5 | 3 | 2/4 |
3 | 50 | 7.5 | 4 | 2/4 |
3.5 | 50 | 9 | 4 | 2/4 |
4 | 50 | 10 | 4 | 2/4 |
4 | 75 | 14 | 4 | 2/4 |
4 | 100 | 18 | 4 | 2/4 |
5 | 50 | 13 | 5 | 2/4 |
5 | 50 | 13 | 6 | 2/4 |
6 | 50 | 15 | 6 | 2/4 |
6 | 75 | 21 | 6 | 2/4 |
6 | 100 | 27 | 6 | 2/4 |
8 | 60 | 20 | 8 | 2/4 |
8 | 75 | 30 | 8 | 2/4 |
8 | 100 | 35 | 8 | 2/4 |
10 | 75 | 25 | 10 | 2/4 |
10 | 100 | 40 | 10 | 2/4 |
12 | 75 | 30 | 12 | 2/4 |
12 | 100 | 45 | 12 | 2/4 |
14 | 100 | 45 | 14 | 2/4 |
16 | 100 | 45 | 16 | 2/4 |
18 | 100 | 45 | 18 | 2/4 |
20 | 100 | 45 | 20 | 2/4 |
6 | 150 | 35 | 6 | 2/4 |
8 | 150 | 50 | 8 | 2/4 |
10 | 150 | 55 | 10 | 2/4 |
12 | 150 | 60 | 12 | 2/4 |
14 | 150 | 65 | 14 | 2/4 |
16 | 150 | 65 | 16 | 2/4 |
18 | 150 | 65 | 18 | 2/4 |
20 | 150 | 75 | 20 | 2/4 |
Our package
Step1: The milling cutter has been finished and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's requirement
More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.
We also can send products to your forwarder in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
8. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
10. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
