Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55

  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
  • Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55
Place of Origin China
Brand Name RLD Tools
Model Number HRC55-R0.5
Minimum Order Quantity 1
Price EXW 2.6SD/negotiable
Packaging Details 1pcs end mill in a plastic pipe, ten pieces a bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC55 2 Flutes 1mm Ball Nose End Mill Diameter 1R0.5
Flute Length 2mm Overall Length 50mm
Shank Diameter 4mm Helix 30°
Flutes 2 Suitable For Alloy Steel, P20, SC45, 304 Stainless Steel, Etc
Coating AlTiSiN Raw Material WF25
High Light

1/4 2 flute carbide end mill HRC55 RLD

,

1/8 2 flute carbide end mill HRC55 RLD

,

3/16 2 flute carbide end mill HRC55 RLD
Leave a Message
Product Description

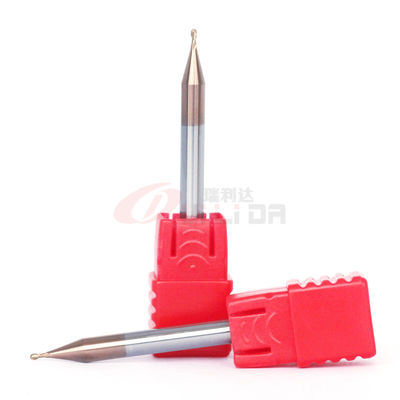

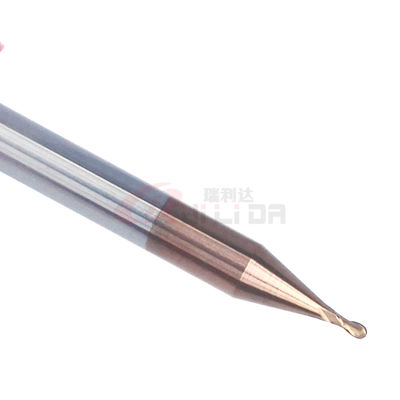

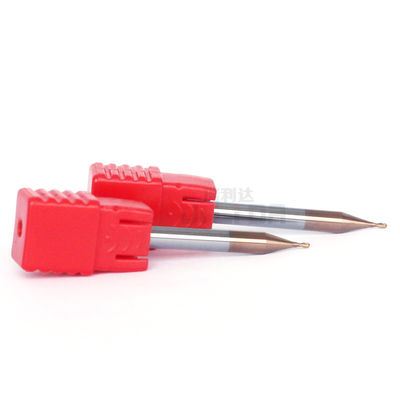

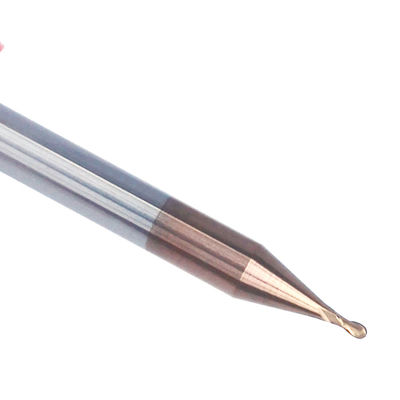

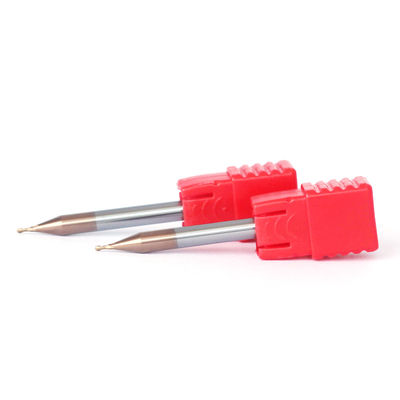

HRC55 Solid Carbide Ball Nose End Mill Cutter 1mm R0.5 CNC Milling Bits with AlTiSiN Coating



Stable quality

Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.

So for the same grade, our quality is always the same.



Product name RLD HRC55 2 flutes 1mm ball nose end mill
Specification  R0.5*2*50*4D*2F
Suitable for  Alloy steel, iron, cast iron, Stainless Steel, etc.
Machine type CNC Milling Machine
Flutes 2
Coating   AlTiSiN/Customized
Helix 30°
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to requirements





             RLD HRC55 2F Carbide Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2



Cnc Ball Nose End Mill For Titanium 3/16" 1/8" 1/4" 1/2 2 Flute Carbide End Mill Hrc 55 0



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a  professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.

ANCA is from Australia, is from Germany.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, CHINA POST, ETC.

For large amount, we can send by air or by sea.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T/Credit Card/PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, Brazil, etc.



8. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
