1/4" 6mm Ball Nose Cutter Suppliers Hrc55 Tungsten Steel Milling Cutter 4f 4x1
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 4 Flutes Ball Nose End Mill 6mm | Diameter | 6mm |
|---|---|---|---|
| Flute Length | 12mm | Overall Length | 50mm |
| Shank Diameter | 6mm | Suitable For | Iron, Cast Iron,steel Under HRC45 Etc. |
| Carbide Rod | ZY10EF | Tolerance Of SHank | H6 |
| High Light | 1/4 end mill bit HRC50 RLD,Hrc55 Tungsten Steel Milling Cutter 4f 4*1,ball nose 6mm HRC50 RLD |
||
Product Description

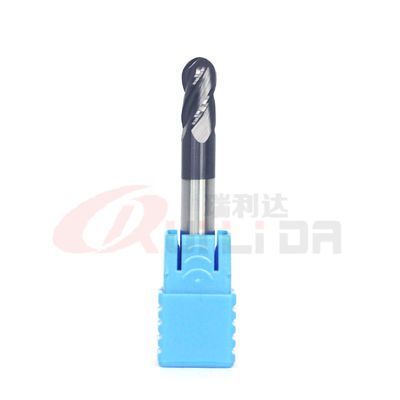

HRC50 Carbide Ball Nose 6mm CNC Milling Cutter 4 Flutes Ball Nose End Mill

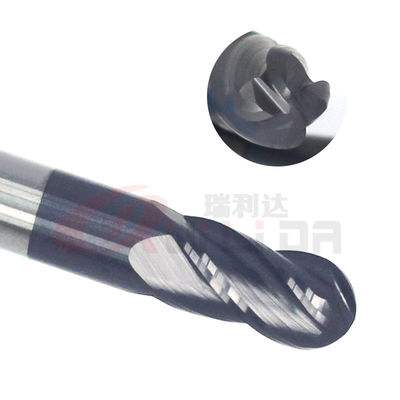

These carbide ball end mills are general-purpose, with a standard flute length (2xD),
four cutting edges, and a center cutting full radius or "ball" on the end.
The term "general purpose" means that the flutes have a 30° helical spiral and the OD grind
has a standard primary and secondary clearance angle.
| Product name | RLD HRC50 4 flute 6mm ball nose end mill |
| Specification | R2*12*50*6D*4F |
| Suitable for | Iron, cast iron, pre-hardened steel under HRC45 |
| Milling type | CNC Milling Machine |
| Flutes | 4 |
| Coating | AlTiN/Others |
| Helix | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Flute Tolerance | Within 0/-0.02mm |
| Process machine | ANCA & |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to the requirement |
| RLD HRC50 4F Carbide Ball Nose End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 4 |
| 1.5 | 50 | 3 | 4 | 4 |
| 2 | 50 | 4 | 4 | 4 |
| 2.5 | 50 | 5 | 4 | 4 |
| 3 | 50 | 6 | 3 | 4 |
| 3 | 50 | 7.5 | 4 | 4 |
| 3.5 | 50 | 9 | 4 | 4 |
| 4 | 50 | 10 | 4 | 4 |
| 4 | 75 | 14 | 4 | 4 |
| 4 | 100 | 18 | 4 | 4 |
| 5 | 50 | 13 | 5 | 4 |
| 5 | 50 | 13 | 6 | 4 |
| 6 | 50 | 15 | 6 | 4 |
| 6 | 75 | 21 | 6 | 4 |
| 6 | 100 | 27 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 8 | 75 | 30 | 8 | 4 |
| 8 | 100 | 35 | 8 | 4 |
| 10 | 75 | 20 | 10 | 4 |
| 10 | 100 | 20 | 10 | 4 |
| 12 | 75 | 24 | 12 | 4 |
| 12 | 100 | 24 | 12 | 4 |
| 14 | 100 | 28 | 14 | 4 |
| 16 | 100 | 32 | 16 | 4 |
| 18 | 100 | 36 | 18 | 4 |
| 20 | 100 | 40 | 20 | 4 |
| 6 | 150 | 12 | 6 | 4 |
| 8 | 150 | 16 | 8 | 4 |
| 10 | 150 | 20 | 10 | 4 |
| 12 | 150 | 24 | 12 | 4 |
| 14 | 150 | 28 | 14 | 4 |
| 16 | 150 | 32 | 16 | 4 |
| 18 | 150 | 36 | 18 | 4 |
| 20 | 150 | 40 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide tools established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
Our company also can ship the goods to your agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We can accept T/T/Credit Card/PayPal, etc.
We also can accept CNY.
6. Can you produce the customized carbide endmills?
Yes, we can produce customized carbide tools.
7. Where is your factory located?
Our factory is located in the east of China.
Changzhou City, Jiangsu Province, China.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
