2mm 4mm 6mm 1/8" Corner Radius End Mill Cutter Flute Length 10mm HRC55

Place of Origin China
Brand Name RLD Tools
Model Number HRC55-4R0.5
Minimum Order Quantity 1
Price EXW 2.9USD/negotiable
Packaging Details 1pcs end mill in a plastic tube, ten pieces a bundle, then put in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HRC55 4 Flutes 4R0.5 Corner Radius End Mill Flute Diameter 4R0.5
Flute Length 10mm Overall Length 50mm
Shank Dia 4mm Material WF25
Coating AlTiSiN Suitable For General Steel Under Hardness HRC50
High Light

6mm corner radius end mill HRC55 RLD

,

2mm corner radius end mill HRC55 RLD

,

4mm corner rounding end mill

Leave a Message
Product Description

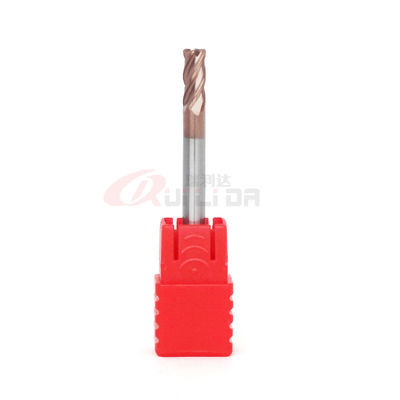

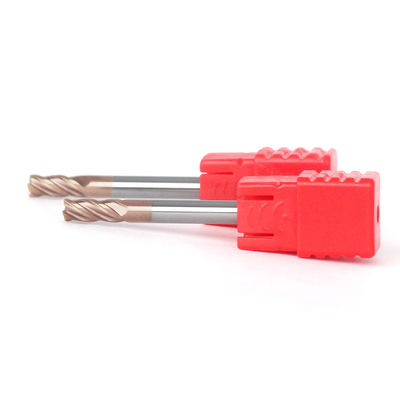

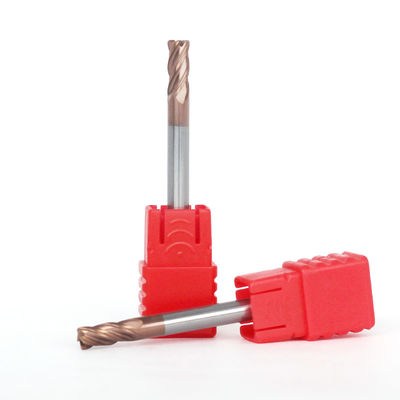

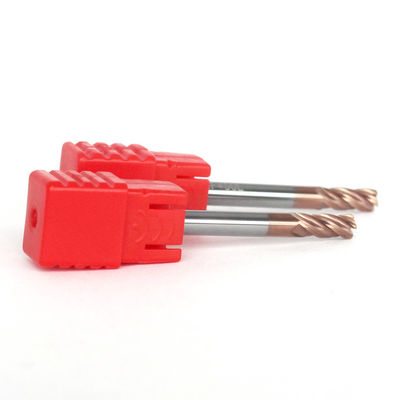

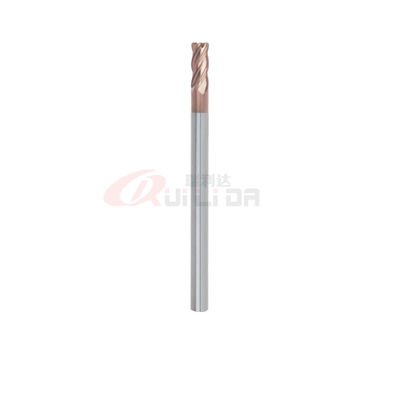

HRC55 4 Flutes 4R0.5 Solid Carbide Corner Radius Coated

End Mills for Steel with AlTiSiN Coating



Product name RLD HRC55 corner radius end mill 4R0.5
Size 4R0.5*10*50*4D*4F
Suitable for  Alloy steel, stainless steel, cast iron, steel under HRC50, etc.
Machine type CNC milling machine
Flutes 4
Coating   AlTiSiN
Helix angle 35°
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





RLD Corner Radius End Mill Standard Size
HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
2 (R0.2, 0.5) 50 5 4 4
3 (R0.2, 0.5) 50 8 4 4
4 (R0.2, 0.5) 50 10 4 4
4 (R0.2, 0.5) 75 12 4 4
4 (R0.2, 0.5) 100 16 4 4
5 (R0.5,1) 50 13 6 4
6 (R0.5,1) 50 15 6 4
6 (R0.5,1) 75 18 6 4
6 (R0.5,1) 100 24 6 4
8 (R0.5,1) 60 20 8 4
8 (R0.5,1) 75 24 8 4
8(R0.5,1) 100 32 8 4
10 (R0.5,1) 75 25 10 4
10 (R0.5,1) 100 30 10 4
12 (R0.5,1) 75 30 12 4
12 (R0.5,1) 100 36 12 4



2mm 4mm 6mm 1/8" Corner Radius End Mill Cutter Flute Length 10mm HRC55 02mm 4mm 6mm 1/8" Corner Radius End Mill Cutter Flute Length 10mm HRC55 1

                                                     FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

For large amount, we can send by air or by sea.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



7. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.


8. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.
