1mm 4mm 1/2" 1/8 Inch Corner Radius End Mill And Cutter Standard

Place of Origin China
Brand Name RLD Tools
Model Number HRC60-3R0.5
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic tube, ten pieces a bundle, then put in carton.
Delivery Time 6-8 business days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HRC60 Corner Radius End Mill 3R0.5 Flute Diameter 3R0.5
Flute Length 7.5mm Overall Length 50mm
Shank Dia 4mm Material GESAC Rod
Coating TiAlN From PVT Coating Suitable For P20, Alloy Steel, Stainless Steel, Etc.
High Light

1/2 inch radius end mill HRC60 RLD

,

1mm radius end mill HRC60 RLD

,

standard end mill corner radius

Leave a Message
Product Description

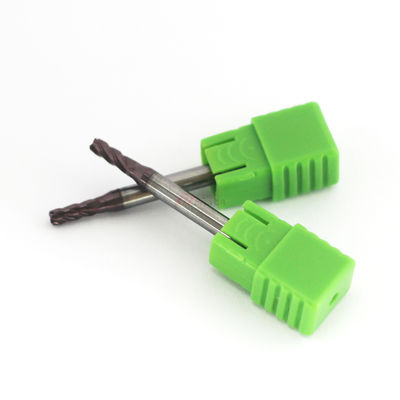

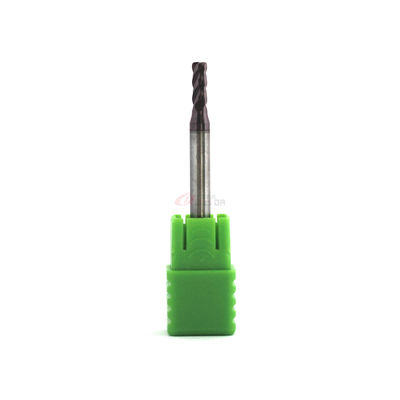

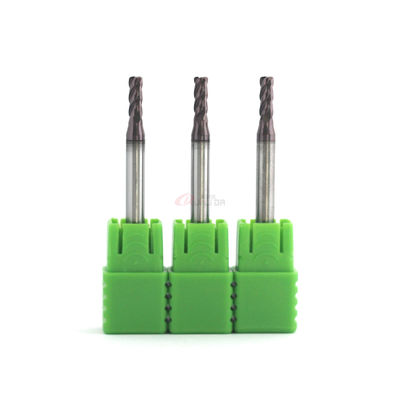

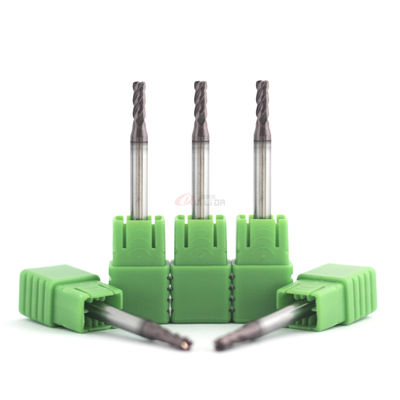

HRC60 4 Flute CNC End Mill 3R0.5 Corner Radius End Mill For CNC Milling Machine



Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.



Product name RLD HRC55 corner radius end mill 3R0.5
Size 3R0.5*7.5*50*4D*4F
Suitable for  P20, mold steel, alloy steel stainless steel, etc
Machine type CNC milling machine
Flutes 4
Coating  TiAlN
Helix angle 35°
Co 12%
HRA 92.5
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
The coating also can be customized according to the requirement







RLD Corner Radius End Mill Standard Size
HRC60

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
2 (R0.2, 0.5) 50 5 4 4
3 (R0.2, 0.5) 50 8 4 4
4 (R0.2, 0.5) 50 10 4 4
4 (R0.2, 0.5) 75 12 4 4
4 (R0.2, 0.5) 100 16 4 4
5 (R0.5,1) 50 13 6 4
6 (R0.5,1) 50 15 6 4
6 (R0.5,1) 75 18 6 4
6 (R0.5,1) 100 24 6 4
8 (R0.5,1) 60 20 8 4
8 (R0.5,1) 75 24 8 4
8(R0.5,1) 100 32 8 4
10 (R0.5,1) 75 25 10 4
10 (R0.5,1) 100 30 10 4
12 (R0.5,1) 75 30 12 4
12 (R0.5,1) 100 36 12 4

1mm 4mm 1/2" 1/8 Inch Corner Radius End Mill And Cutter Standard 0



                                                     FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools was established in 2011.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA &  machines.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce customized carbide end mills according to your drawings or samples.
