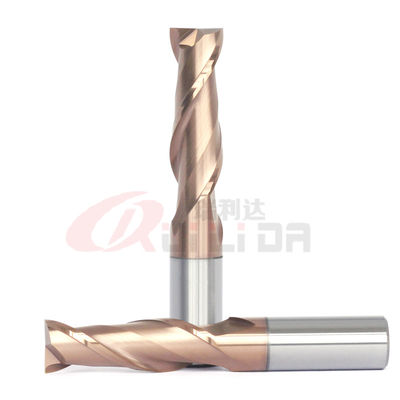

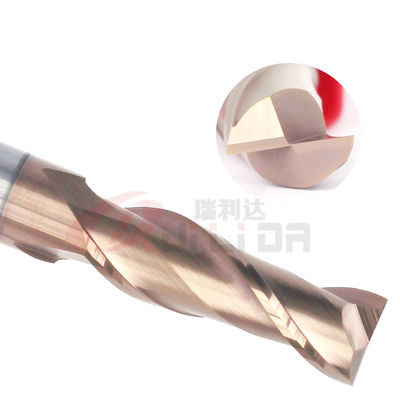

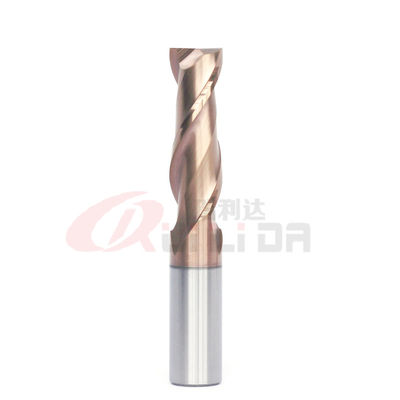

1/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius

  • 1/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius
  • 1/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius
  • 1/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius
  • 1/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius
Place of Origin China
Brand Name RLD Tools
Model Number HRC55
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs solid carbide end mill in a plastic tube, ten pieces a bundle, then put in carton.
Delivery Time 5-8 business days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC55 2 Flute 12mm Solid Carbide End Mill Flute Diameter 12mm
Flute Length 36mm Overall Length 75mm
Shank Dia 12mm Origin Jiangsu Province , China
Material WF25 SHK Torlerance H6
High Light

1/4 2 flute end mill HRC55 RLD

,

1/2 inch 2 flute end mill HRC55 RLD

,

RLD 12 mm 2-flute stepped end mill with edge radius
Leave a Message
Product Description

HRC55 2 Flutes Solid Carbide End Mill Cutter For Slot Milling 12mm End Mill



Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.

More quantity will enjoy more discount.



We have PG1000, Omega inspection facilities to ensure the precision of each tool



Product name RLD HRC55 2F 12mm Solid Carbide End Mill
Size 12*36*75*12D*2F
Suitable for  Iron, Cast Iron, Brass, Alloy steel, mold steel, etc.
Machine type CNC Milling Machine
Flutes 2
Coating Color  Copper
Helix angle 35
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA or





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to the requirement





RLD HRC55 2F Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 2
1.5 50 4.5 4 2
2 50 6 4 2
2.5 50 7.5 4 2
3 50 9 3 2
3 50 9 4 2
3.5 50 10.5 4 2
4 50 12 4 2
4 75 16 4 2
4 100 20 4 2
5 50 15 5 2
5 50 15 6 2
6 50 18 6 2
6 75 24 6 2
6 100 30 6 2
8 60 24 8 2
8 75 32 8 2
8 100 40 8 2
10 75 30 10 2
10 100 45 10 2
12 75 36 12 2
12 100 45 12 2
14 100 45 14 2
16 100 45 16 2
18 100 45 18 2
20 100 45 20 2
6 150 35 6 2
8 150 50 8 2
10 150 60 10 2
12 150 70 12 2
14 150 65 14 2
16 150 65 16 2
18 150 65 18 2
20 150 70 20 2



1/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius 01/4" 1/2" 2 Flute Carbide End Mill 12mm Slot End Mill Cutter With Edge Radius 1

                                                     FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of the solid carbide end mill.



2. Which CNC grinding machine do you use?

ANCA and

ANCA is imported from Australia

is imported from Germany



3. How do you usually dispatch the tools?

We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, CHINA POST, ETC.

We also can dispatch the goods to your shipping agent in China.



4. How about the delivery time?

We can dispatch the stock goods within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

It is around 7-10 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you do OEM?
Yes, we can.



7. Do you have a discount for the large amount?
Yes, welcome to send inquiries to us.



8. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
