5/8" 3/32" 3mm 2 Flute End Mill For Plastic Stainless Steel 304

  • 5/8" 3/32" 3mm 2 Flute End Mill For Plastic Stainless Steel 304
  • 5/8" 3/32" 3mm 2 Flute End Mill For Plastic Stainless Steel 304
  • 5/8" 3/32" 3mm 2 Flute End Mill For Plastic Stainless Steel 304
Place of Origin China
Brand Name RLD Tools
Model Number HRC60
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HRC60 2 Flute Solid Carbide End Mill 3mm Raw Material GU25UF Carbide
Diameter 3 Flute Length 7.5
Overall Length 50 Shank Diameter 4
Suitable For High-temperature Alloys And Stainless Steel Flute Number 2
High Light

5/8 2 flute end mill HRC60 RLD

,

3/32" 3mm 2 Flute End Mill For Plastic

,

twin flute end mill HRC60 RLD
Leave a Message
Product Description

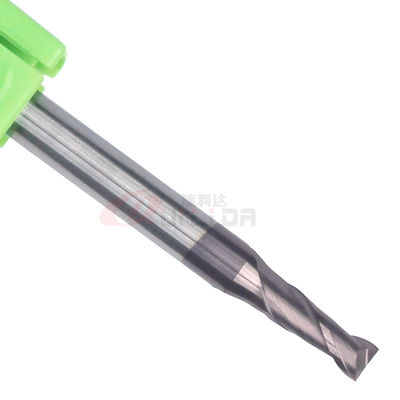

HRC60 2 Flute Solid Carbide End Mill 3mm End Mill Cutter For 304 Stainless Steel



TiALN: High heat resistance, high oxidation resistance, nanocomposite coating with lubrication property.



Product name RLD HRC60 2 flute square solid carbide end mill 3mm
Specification 3*7.5*50*4D*2F
Suitable for  high-temperature alloys and stainless steel
Machine type Slot Milling
Flutes 2
Coating  TiAlN/Customized
Helix Variable Helix Angle
Co 12%
HRA 92.5
TRS Min(N/mm²) 4200
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to requirement





                                   RLD HRC60 Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2.5 4 2
1.5 50 4 4 2
2 50 5 4 2
2.5 50 6.5 4 2
3 50 7.5 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 25 10 2
10 100 40 10 2
12 75 30 12 2
12 100 45 12 2
14 100 45 14 2
16 100 45 16 2
18 100 45 18 2
20 100 45 20 2
6 150 35 6 2
8 150 50 8 2
10 150 55 10 2
12 150 60 12 2
14 150 65 14 2
16 150 65 16 2
18 150 65 18 2
20 150 75 20 2



Our package



Step1: The end mill has been finished producing and sent to the warehouse



Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band



Step3: Use the air bubble film to encase the plastic pipe



Step4: Put the goods encased with air bubble film in small packing cartons



Step5: Put another air bubble film on the goods and packaging



Step6: Sent by logistics company or express according to customer's need

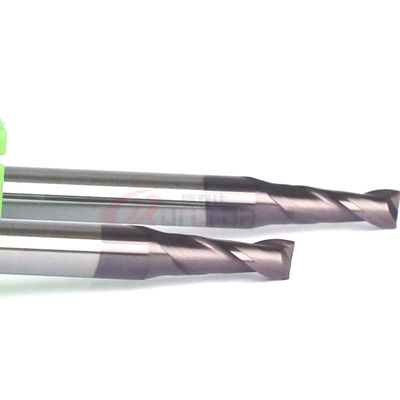

More pictures

5/8" 3/32" 3mm 2 Flute End Mill For Plastic Stainless Steel 304 0



                                                      FAQ

1. Are you a manufacturer or trading company?

Our company is especially producing carbide end mills, drill bits, and reamers.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you have any discounts?
Yes, we have a discount based on the quantity.

Welcome to send inquiries to us.
