1/4" 1/8 Inch Variable Helix End Mills For Stainless Steel Titanium 4 Flute HRC60

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct | HRC60 Solid Carbide End Mill 4mm | ||
---|---|---|---|
High Light | Variable Helix End Mills 4 Flute HRC60,end mill 4mm HRC60 RLD,Variable Helix End Mills 4 Flute HRC60 RLD |

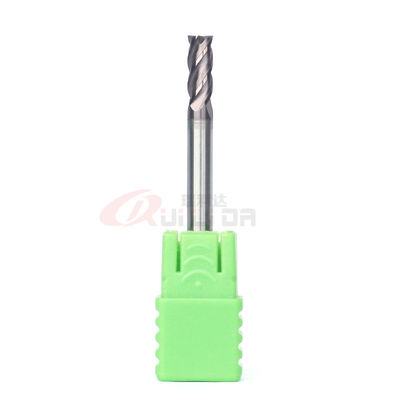

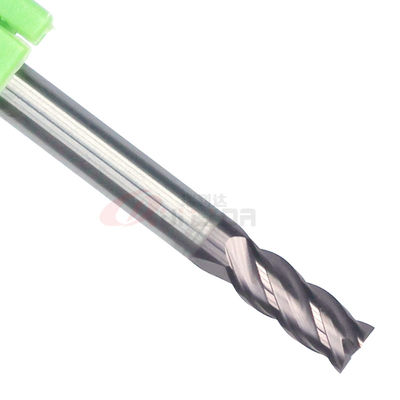

HRC60 4 Flute Variable Helix Solid Carbide End Mill 4mm End Mill Cutter
Product name | RLD HRC60 4 flute square solid carbide end mill 4mm |
Specification | 4*10*50*4D*4F |
Suitable for | Hardened steel, mold steel stainless steel, titanium, etc. |
Machine type | Side Milling |
Flutes | 4 |
Coating | TiAlN/Customized |
Helix | Variable Helix |
Co | 12% |
HRA | 92.5 |
TRS Min(N/mm²) | 4200 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized according to client's need |
RLD HRC60 Square End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2.5 | 4 | 4 |
1.5 | 50 | 4 | 4 | 4 |
2 | 50 | 5 | 4 | 4 |
2.5 | 50 | 6.5 | 4 | 4 |
3 | 50 | 7.5 | 3 | 4 |
3 | 50 | 7.5 | 4 | 4 |
3.5 | 50 | 9 | 4 | 4 |
4 | 50 | 10 | 4 | 4 |
4 | 75 | 14 | 4 | 4 |
4 | 100 | 18 | 4 | 4 |
5 | 50 | 13 | 5 | 4 |
5 | 50 | 13 | 6 | 4 |
6 | 50 | 15 | 6 | 4 |
6 | 75 | 21 | 6 | 4 |
6 | 100 | 27 | 6 | 4 |
8 | 60 | 20 | 8 | 4 |
8 | 75 | 30 | 8 | 4 |
8 | 100 | 35 | 8 | 4 |
10 | 75 | 25 | 10 | 4 |
10 | 100 | 40 | 10 | 4 |
12 | 75 | 30 | 12 | 4 |
12 | 100 | 45 | 12 | 4 |
14 | 100 | 45 | 14 | 4 |
16 | 100 | 45 | 16 | 4 |
18 | 100 | 45 | 18 | 4 |
20 | 100 | 45 | 20 | 4 |
6 | 150 | 35 | 6 | 4 |
8 | 150 | 50 | 8 | 4 |
10 | 150 | 55 | 10 | 4 |
12 | 150 | 60 | 12 | 4 |
14 | 150 | 65 | 14 | 4 |
16 | 150 | 65 | 16 | 4 |
18 | 150 | 65 | 18 | 4 |
20 | 150 | 75 | 20 | 4 |
More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
Their precision is very stable.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we also can send by air or sea.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
