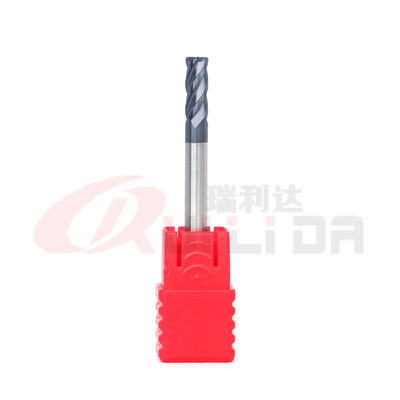

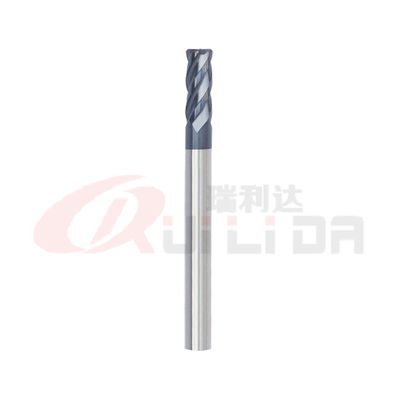

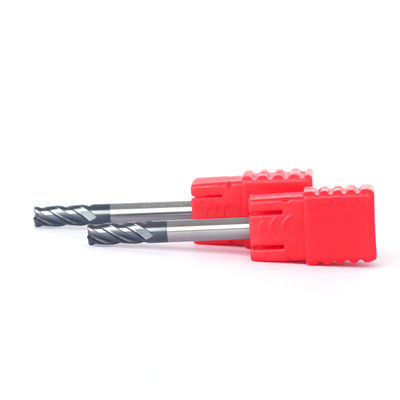

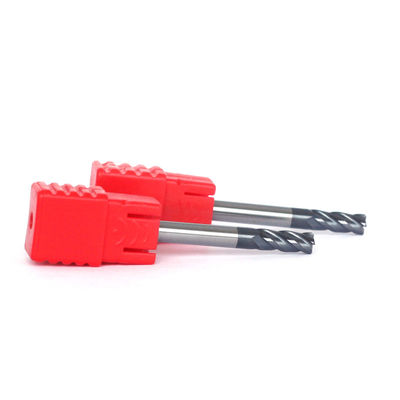

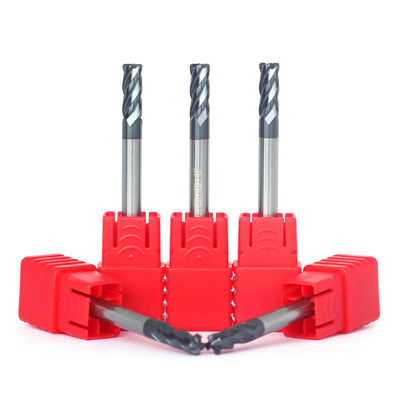

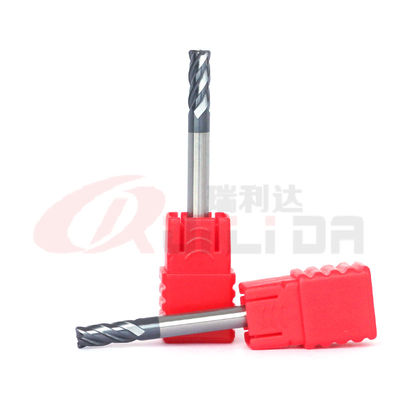

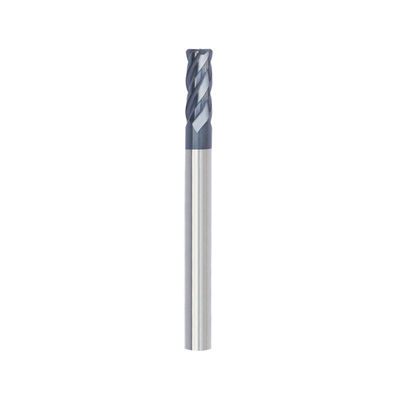

1/8" 4mm 4 Flutes Solid Carbide Corner Radius End Mills Radius Bull Nose Endmill HRC50
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | HRC50 4 Flutes Corner Radius End Mill | Material | ZY10EF |
|---|---|---|---|
| Coating | AlTiN | Diameter | 1-20mm |
| Overall Length | 50~100mm / Customized | Suitable For | Steel, Stainless Steel,semi Finishing And Roghing |
| High Light | 4 Flutes solid carbide corner radius end mills,1/8 corner radius end mill HRC50 RLD,carbide corner radius end mill HRC50 RLD |
||
Product Description
RLD HRC50 4 flutes tungsten solid carbide corner radius 4mm end mill bull mill for steel
| Product name | RLD HRC50 4 corner radius end mill |
| Feature | Economic series |
| Suitable for | Pre-hardened steel, stainless steel, iron, cast iron |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiN/Customized |
| Helix angle | 35 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
| RLD Corner Radius End Mill Standard Size HRC50/55/60/65 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
| 3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
| 4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
| 4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
| 4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
| 5 (R0.5,1) | 50 | 13 | 6 | 4 |
| 6 (R0.5,1) | 50 | 15 | 6 | 4 |
| 6 (R0.5,1) | 75 | 18 | 6 | 4 |
| 6 (R0.5,1) | 100 | 24 | 6 | 4 |
| 8 (R0.5,1) | 60 | 20 | 8 | 4 |
| 8 (R0.5,1) | 75 | 24 | 8 | 4 |
| 8(R0.5,1) | 100 | 32 | 8 | 4 |
| 10 (R0.5,1) | 75 | 25 | 10 | 4 |
| 10 (R0.5,1) | 100 | 30 | 10 | 4 |
| 12 (R0.5,1) | 75 | 30 | 12 | 4 |
| 12 (R0.5,1) | 100 | 36 | 12 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.
We also can send products to your forwarder in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,
Brazil, etc.
7. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
