6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl

  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
  • 6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl
Place of Origin China
Brand Name RLD Tools
Model Number HRC50-R3
Minimum Order Quantity 1
Price EXW 3.6USD/negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a rubber bundle, then in a carton box.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 900000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC50 2 Flutes 6mm Ball Nose End Mill Diameter 6R3
Flute Length 12mm Overall Length 50mm
Shank Diameter 6mm Helix 30°
Flutes 2 Suitable For Low-alloy Steel, Iron, Cast Iron, Stainless Steel, Etc.
High Light

.025 ball end mill HRC50 RLD

,

6.5 mm ball end mill HRC50 RLD

,

6mm ball end mill HRC50 RLD
Leave a Message
Product Description

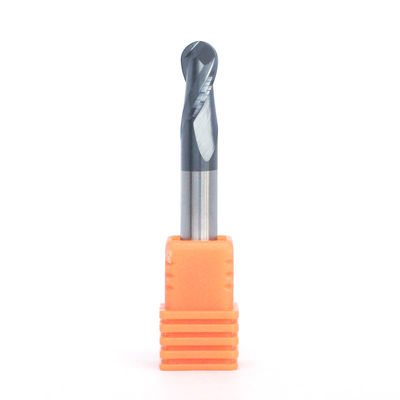

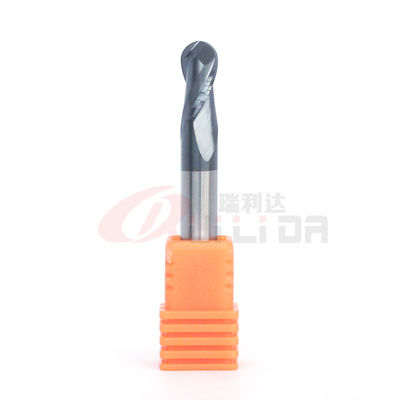

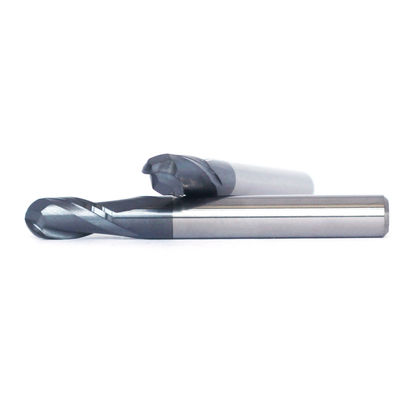

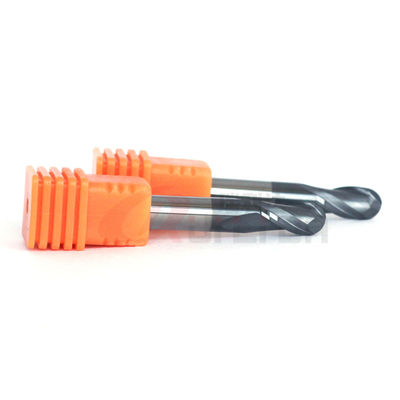

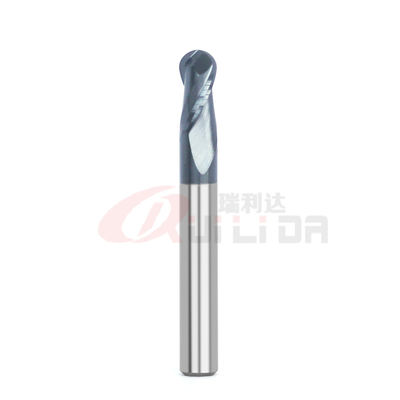

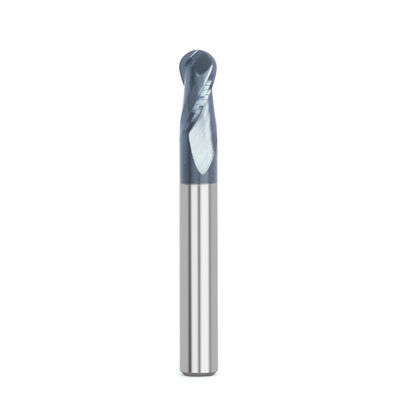

HRC50 2 Flutes 6mmCarbide Ball Nose Endmills For 3D Milling with AlTiN Coating for Steel



Made of ZY10EF rod from Zhangyuan Carbide



Product name RLD HRC50 2 flutes 6mm ball nose end mill
Specification  R3*12*50*6D*2F
Suitable for  Steel, stainless steel, iron, cast iron, etc.
Machine type CNC Milling Machine
Flutes 2
Coating   AlTiN/Customized
Helix 30°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to requirement





                           RLD HRC50 2F Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2



6.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl 06.5 Mm 6mm .025" .020" Ball End Mill Aluminum Machining 3D Milling HRC50 2 Fl 1



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a  professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, TNT, ETC.

For large amount, we can send by air or by sea.

We also can send products to your shipping agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

We also can accept CNY (Chinese Yuan)



6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.



8. Do you have any discounts?

Yes, we have discounts for large quantities.
