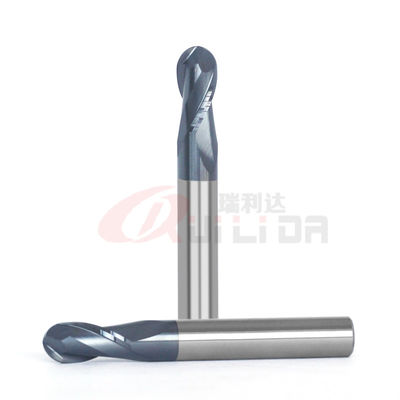

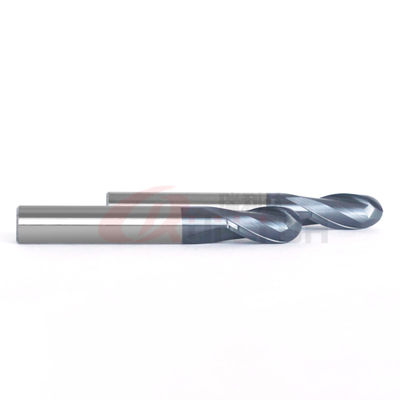

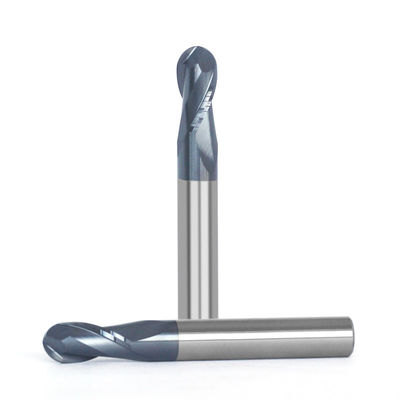

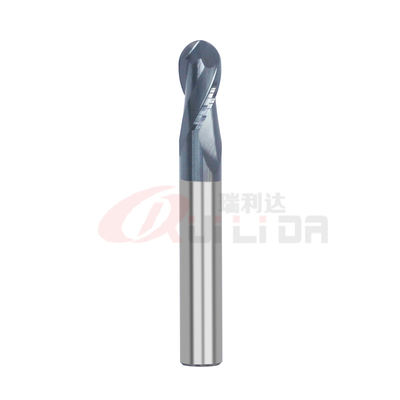

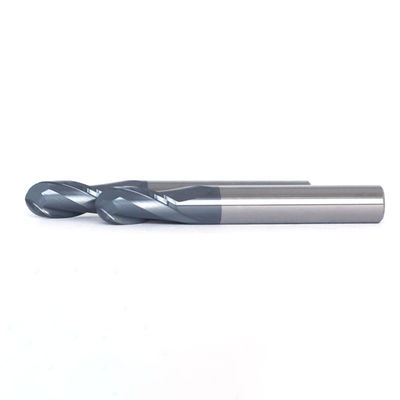

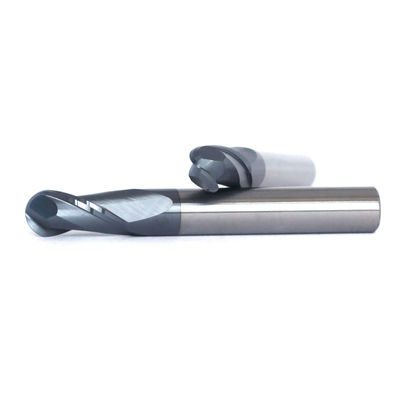

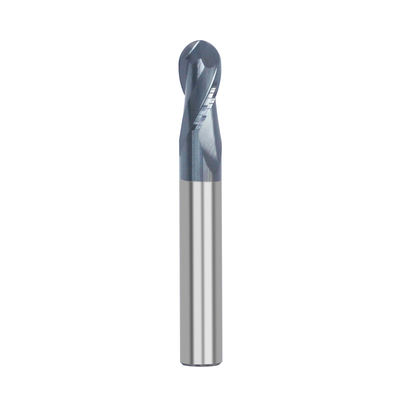

3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel

  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
  • 3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel
Place of Origin China
Brand Name RLD Tools
Model Number HRC50-R4
Minimum Order Quantity 1
Price EXW 6.6USD/negotiable
Packaging Details 1pcs end mill in a plastic tube, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 600000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC50 2 Flutes 8mm Ball Nose End Mill Diameter 8R4
Flute Length 16mm Overall Length 60mm
Shank Diameter 8mm Helix 30°
Flutes 2 Suitable For End Mill For Cast Iron, Cast Iron, Pre-hardened Steel, Etc
High Light

1/4" Ball Nose Carbide End Mill Cutter 8mm

,

3/8 carbide ball nose end mill HRC50 RLD

,

ball nose carbide cutter HRC50 RLD
Leave a Message
Product Description

HRC50 Ball Nose milling Cutter 8mm Solid Carbide End Mill Cutter With Reasonable Price



We only cooperate with big reliable carbide rod suppliers.
Only sell the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.



Product name RLD HRC50 2 flutes 8mm ball nose end mill
Specification  R4*16*60*8D*2F
Suitable for  Steel, iron, cast iron, etc.
Machine type CNC Milling Machine
Flutes 2
Coating   AlTiN
Helix 30°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized





                           RLD HRC50 2F Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2



3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel 03/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel 1



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a  professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.

They are imported from Australia and Germany.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, TNT, ETC.

For large amount, we can send by air or by sea.

We also can send products to your shipping agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.





6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.



8. Do you have any discounts?

Yes, we have discounts for large quantities.



9. Which inspection machines do you use?

We are us PG1000 and OMEGA for checking the tolerance.
