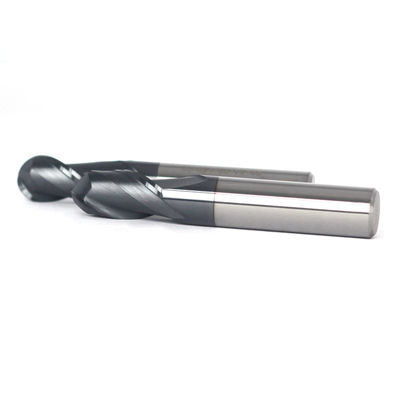

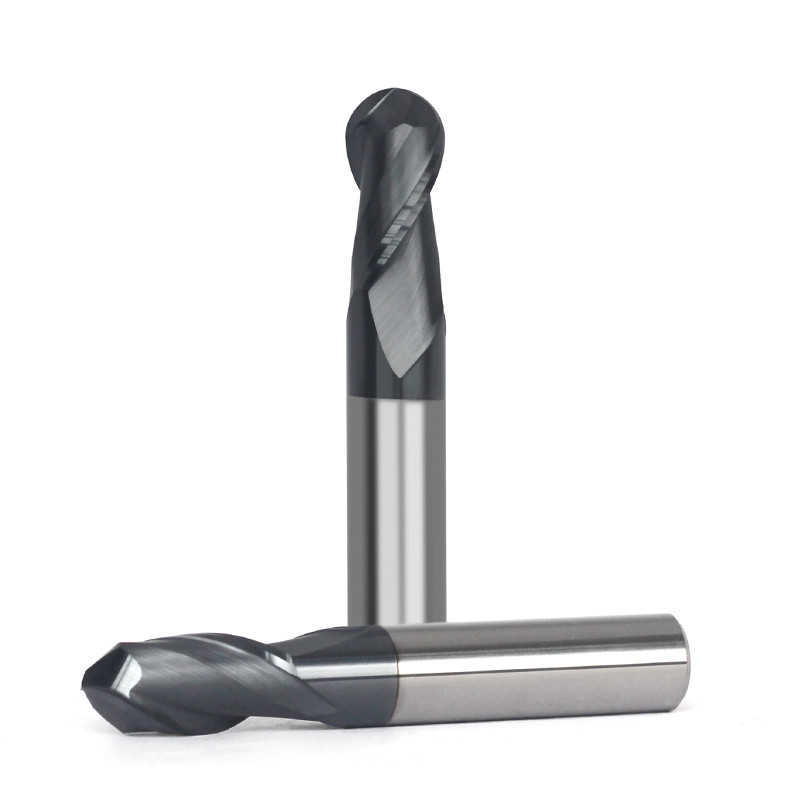

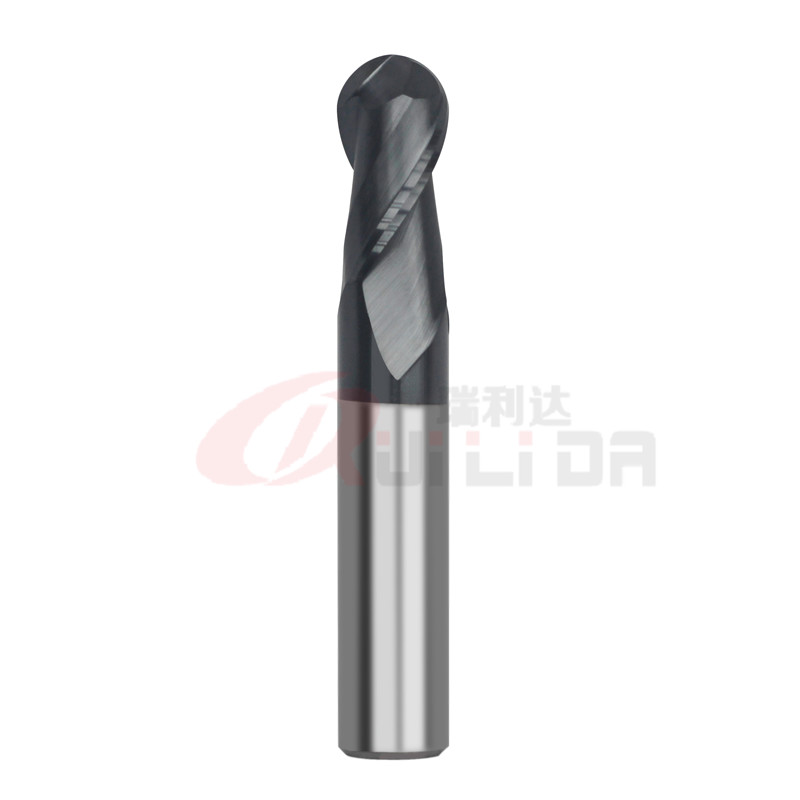

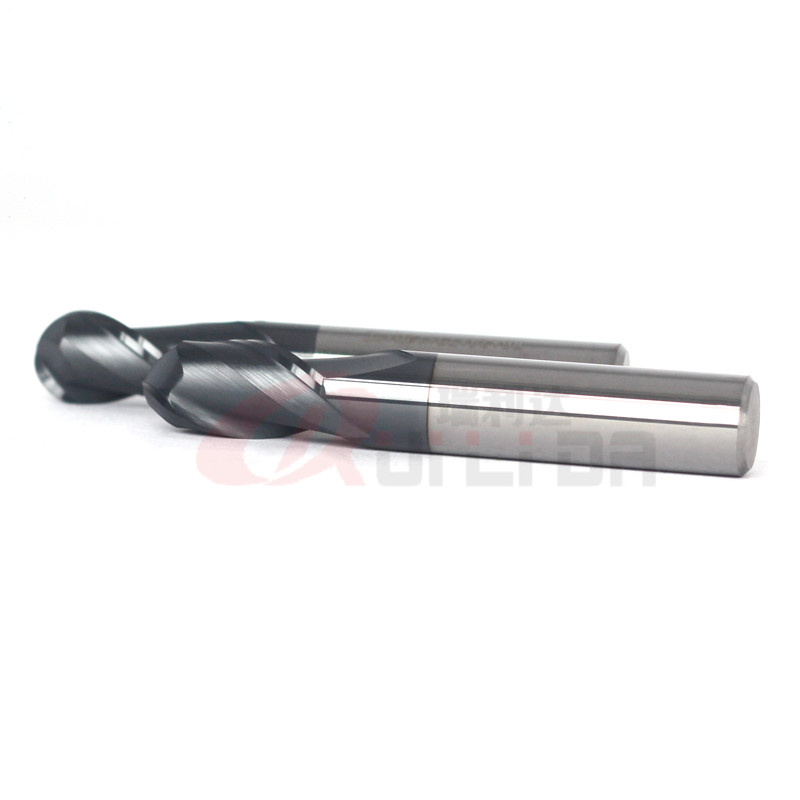

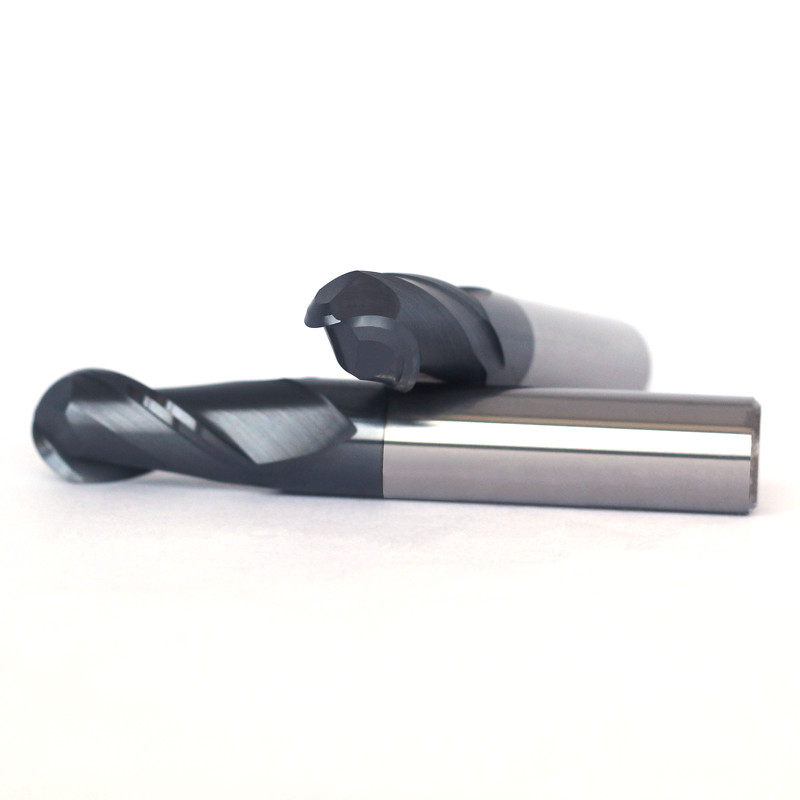

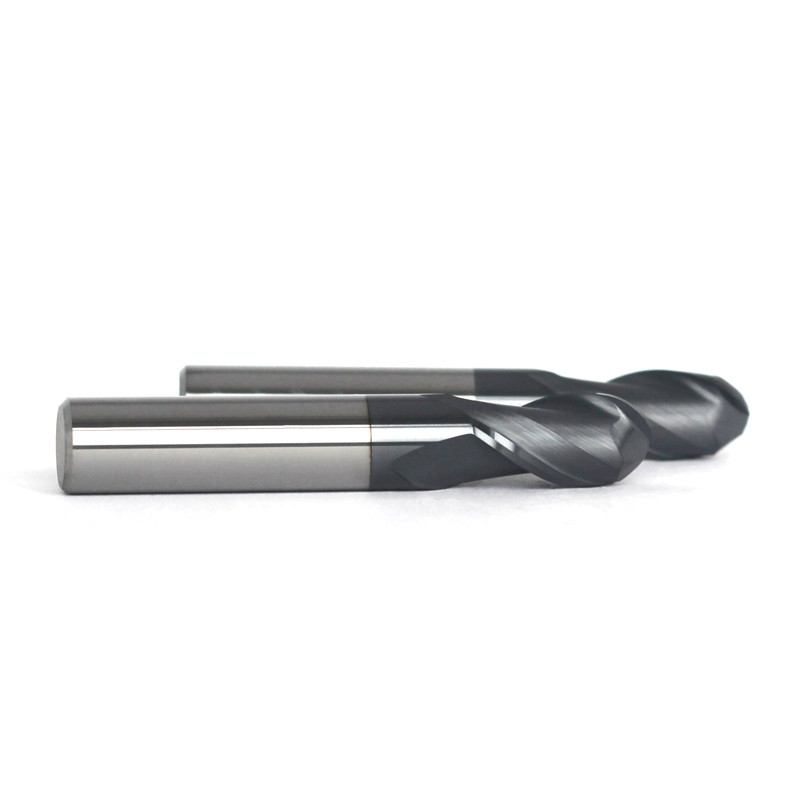

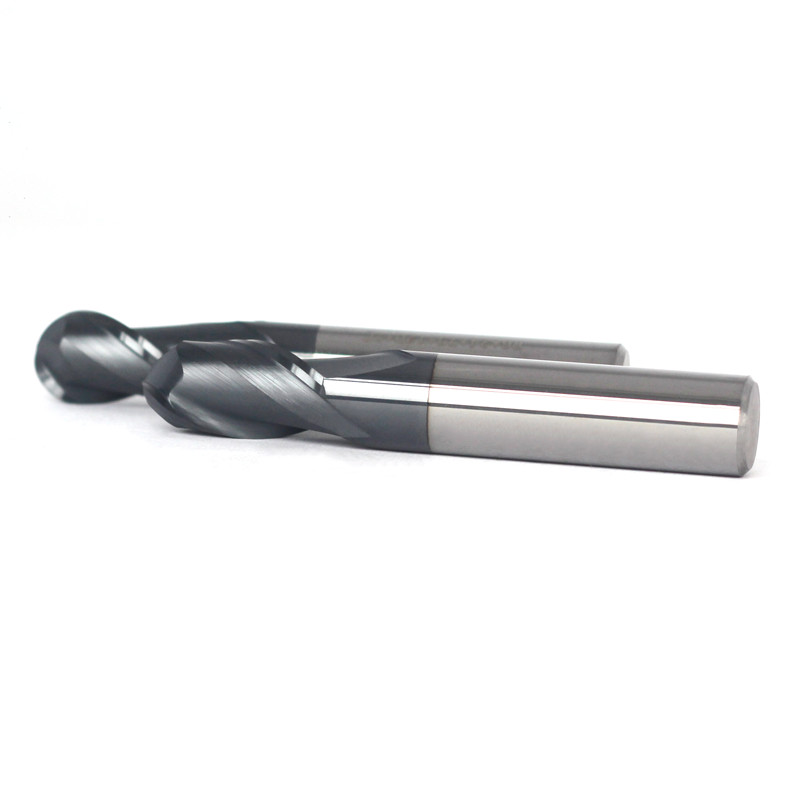

12mm Spherical Ball Nose End Mills For Steel Two Flutes 24mm
Place of Origin | China |
---|---|
Brand Name | RLD Tools |
Model Number | HRC50-R6 |
Minimum Order Quantity | 1 |
Price | EXW 14SD/negotiable |
Packaging Details | 1pcs endmill in a plastic pipe, ten pieces a bundle, then in a carton. |
Delivery Time | 6-7 work days |
Payment Terms | T/T/PayPal/Credit Card |
Supply Ability | 600000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | HRC50 2 Flutes 12mm Ball Nose End Mill | Diameter | 12R5 |
---|---|---|---|
Flute Length | 24mm | Overall Length | 75mm |
Shank Diameter | 12mm | Helix | 30° |
Flutes | 2 | Suitable For | Iron, Cast Iron, Common Steel, Etc |
Coating | AlTiN | Raw Material | ZY10EF Carbide |
High Light | 12mm ball nose end mill HRC50 RLD,spherical ball end mill HRC50 RLD,12mm ball nose cutter HRC50 RLD |
HRC50 Carbide Spherical Ball End Mill Manufacturers 12mm R6 Ball Nose Milling Cutter Price
Economic & Wide application
Suitable for cutting iron, cast iron, stainless steel, low alloy steel, general steel under hardness HRC45
Stable quality
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So for the same grade, our quality is always the same.
Product name | RLD HRC50 2 flutes 12mm ball nose end mill |
Specification | R6*24*75*12D*2F |
Suitable for | Steel, iron, cast iron, Stainless Steel, etc. |
Machine type | CNC Milling Machine |
Flutes | 2 |
Coating | AlTiN/Customized |
Helix | 30° |
Co | 10% |
HRA | 91.8 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating can be customized according to requirements |
RLD HRC50 2F Ball Nose End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2 | 4 | 2 |
1.5 | 50 | 3 | 4 | 2 |
2 | 50 | 4 | 4 | 2 |
2.5 | 50 | 5 | 4 | 2 |
3 | 50 | 6 | 3 | 2 |
3 | 50 | 7.5 | 4 | 2 |
3.5 | 50 | 9 | 4 | 2 |
4 | 50 | 10 | 4 | 2 |
4 | 75 | 14 | 4 | 2 |
4 | 100 | 18 | 4 | 2 |
5 | 50 | 13 | 5 | 2 |
5 | 50 | 13 | 6 | 2 |
6 | 50 | 15 | 6 | 2 |
6 | 75 | 21 | 6 | 2 |
6 | 100 | 27 | 6 | 2 |
8 | 60 | 20 | 8 | 2 |
8 | 75 | 30 | 8 | 2 |
8 | 100 | 35 | 8 | 2 |
10 | 75 | 20 | 10 | 2 |
10 | 100 | 20 | 10 | 2 |
12 | 75 | 24 | 12 | 2 |
12 | 100 | 24 | 12 | 2 |
14 | 100 | 28 | 14 | 2 |
16 | 100 | 32 | 16 | 2 |
18 | 100 | 36 | 18 | 2 |
20 | 100 | 40 | 20 | 2 |
6 | 150 | 12 | 6 | 2 |
8 | 150 | 16 | 8 | 2 |
10 | 150 | 20 | 10 | 2 |
12 | 150 | 24 | 12 | 2 |
14 | 150 | 28 | 14 | 2 |
16 | 150 | 32 | 16 | 2 |
18 | 150 | 36 | 18 | 2 |
20 | 150 | 40 | 20 | 2 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
3. How many CNC grinding machines do you have?
Now we have 6 sets of machines, 2 sets of ANCA machines.
4. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, CHINA POST, ETC.
For large amount, we can send by air or by sea.
5. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
6. Which payment methods do you accept?
We accept T/T/Credit Card/PayPal, etc.
7. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
8. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, Brazil, etc.
9. Do you have any discounts?
Yes, we have discounts for large quantities.
10. Can you do OEM?
Yes, our company can engrave your logo on the tool's shank for free.
