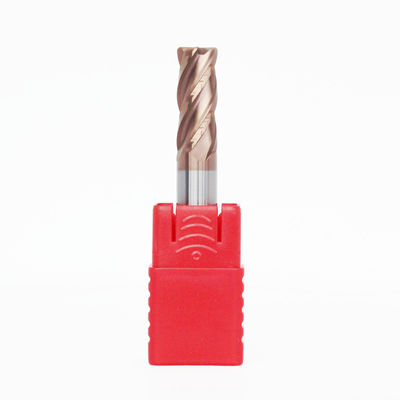

.125" 3/8" 10mm Square End Mill Corner Radius Milling Cutters HRC55 4 Flutes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | HRC55 4 Flutes 10R1 Corner Radius End Mill | Flute Diameter | 10R1 |
|---|---|---|---|
| Flute Length | 25mm | Overall Length | 75mm |
| Shank Dia | 10mm | Material | CB WF25 |
| Coating | AlTiSiN | Suitable For | P20, SC45, Pre-hardened Mold Steel, Alloy Steel, Etc. |
| High Light | 10mm end mill corner radius,.125 corner radius end mill HRC55 RLD,3/8 radius end mill HRC55 RLD |
||
Product Description
HRC55 4 Flutes 10R1 Tungsten Carbide Corner Radius Endmill CNC Milling Cutter Factory
| Product name | RLD HRC55 corner radius end mill 10R1 |
| Size | 10R1*25*75*10D*4F |
| Suitable for | P20, SC45, pre-hardened mold steel, alloy steel, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiSiN |
| Helix angle | 35° |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to the requirement |
| RLD Corner Radius End Mill Standard Size HRC50 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
| 3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
| 4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
| 4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
| 4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
| 5 (R0.5,1) | 50 | 13 | 6 | 4 |
| 6 (R0.5,1) | 50 | 15 | 6 | 4 |
| 6 (R0.5,1) | 75 | 18 | 6 | 4 |
| 6 (R0.5,1) | 100 | 24 | 6 | 4 |
| 8 (R0.5,1) | 60 | 20 | 8 | 4 |
| 8 (R0.5,1) | 75 | 24 | 8 | 4 |
| 8(R0.5,1) | 100 | 32 | 8 | 4 |
| 10 (R0.5,1) | 75 | 25 | 10 | 4 |
| 10 (R0.5,1) | 100 | 30 | 10 | 4 |
| 12 (R0.5,1) | 75 | 30 | 12 | 4 |
| 12 (R0.5,1) | 100 | 36 | 12 | 4 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA(Australia) & (Germany) machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.
For large amount, we can send by air or by sea.
We also can send the goods to the shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
7. Can you do OEM?
Yes, we can engrave your logo on the tool's shank for free.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
