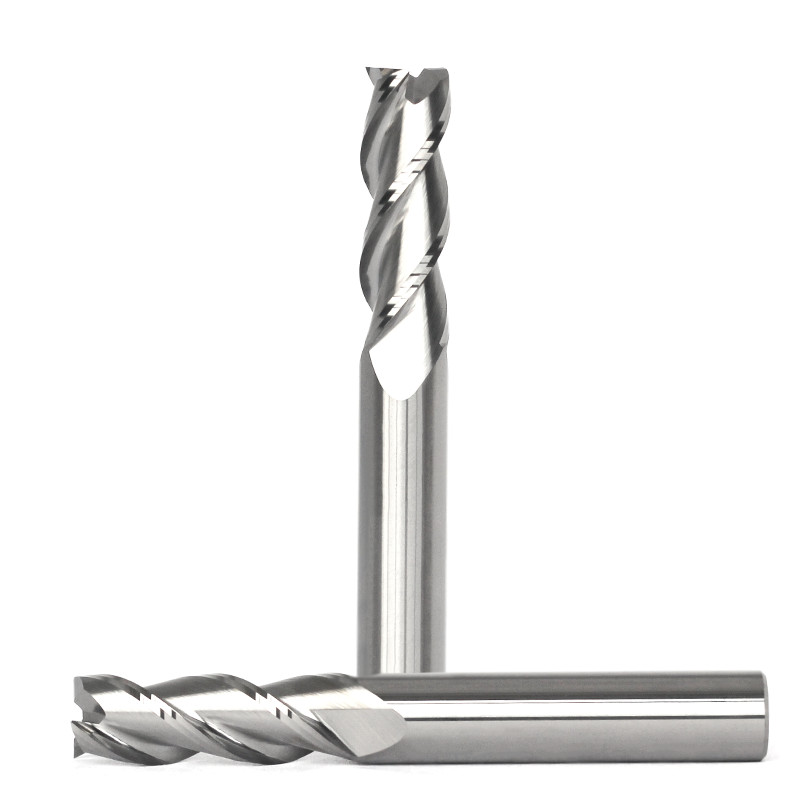

3 Flute 3/8 End Mill For Aluminum 10mm 40 Degree

Place of Origin China
Brand Name RLD Tools
Model Number HRC55-10mm
Minimum Order Quantity 1
Price 13.0USD/negotiable
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC55 10mm Square End Mill For Aluminum Flute Dia 10mm
Flute Length 30mm Overall Length 75mm
Shank Dia 10mm Flute Number 3
Helix 40° Suitable Aluminium, Copper, Resin, Plastic, Etc
Carbide Rod WF25
High Light

3 Flute 3/8 end mill for aluminum 10mm

,

3/8 end mill for aluminum 10mm 40 degree

,

3/8 carbide end mill HRC55-10mm

Leave a Message
Product Description

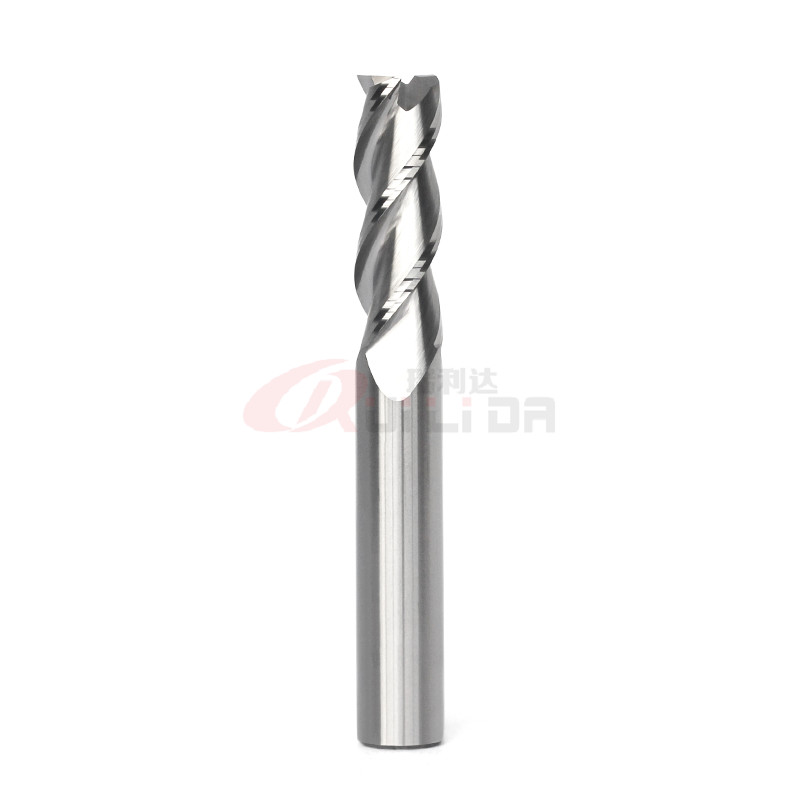

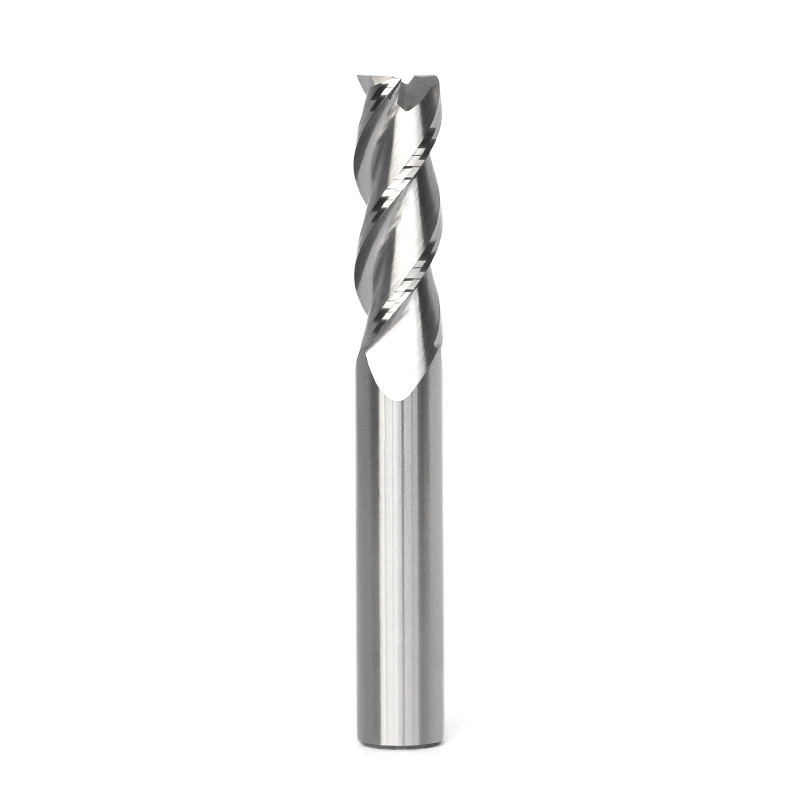

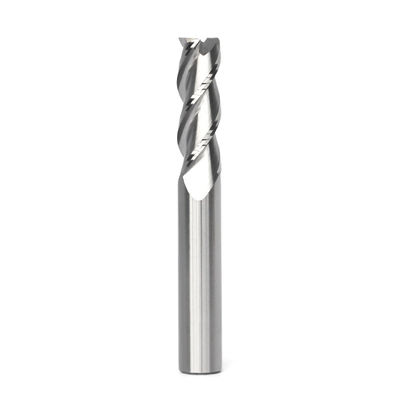

HRC55 3 Flute Solid Tungsten Carbide Router End Mill Bits for Aluminum 10mm Milling Tools



40° helix for faster chip removal and better finish


h6 shank tolerance for high precision tool holders​

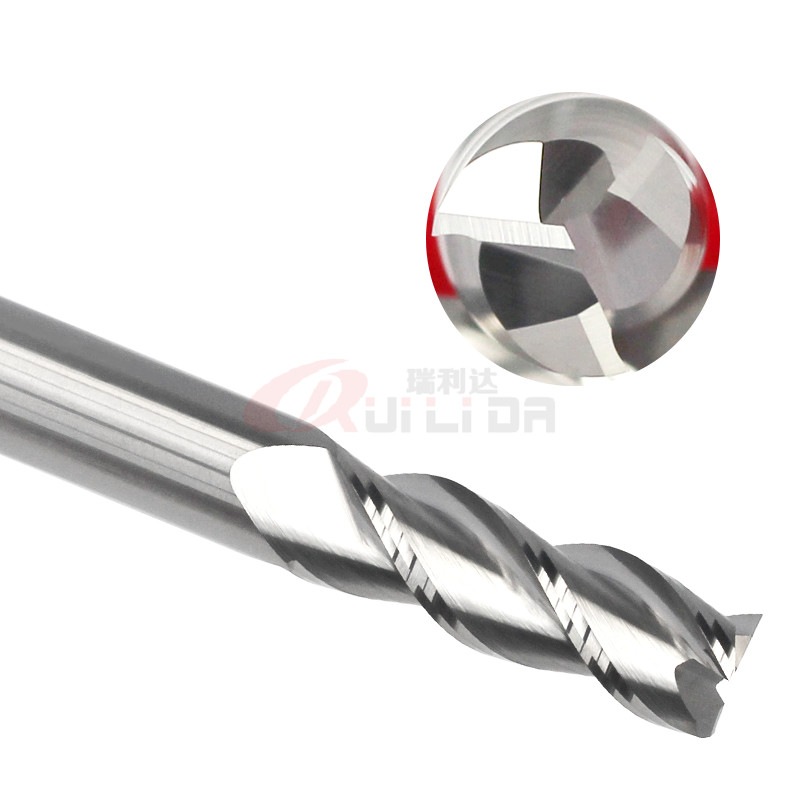

Center cutting



Product name RLD HRC55 3 flutes 10mm square endmill for Aluminum
Size  10×30×75×10D×3F
Suitable for  Finish milling
Feature  Without burrs and milling marks
Flute Number  3
Coating  Uncoating
Helix angle 40
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized



RLD Square End Mill for Aluminium Standard Size
HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 2/3
2 50 6 4 2/3
3 50 9 4 2/3
4 50 12 4 2/3
4 75 16 4 2/3
4 100 20 4 2/3
6 50 18 6 2/3
6 75 24 6 2/3
6 100 30 6 2/3
8 60 24 8 2/3
8 75 32 8 2/3
8 100 40 8 2/3
10 75 30 10 2/3
10 100 40 10 2/3
12 75 36 12 2/3
14 100 45 14 2/3
16 100 45 16 2/3
18 100 45 18 2/3
20 100 45 20 2/3

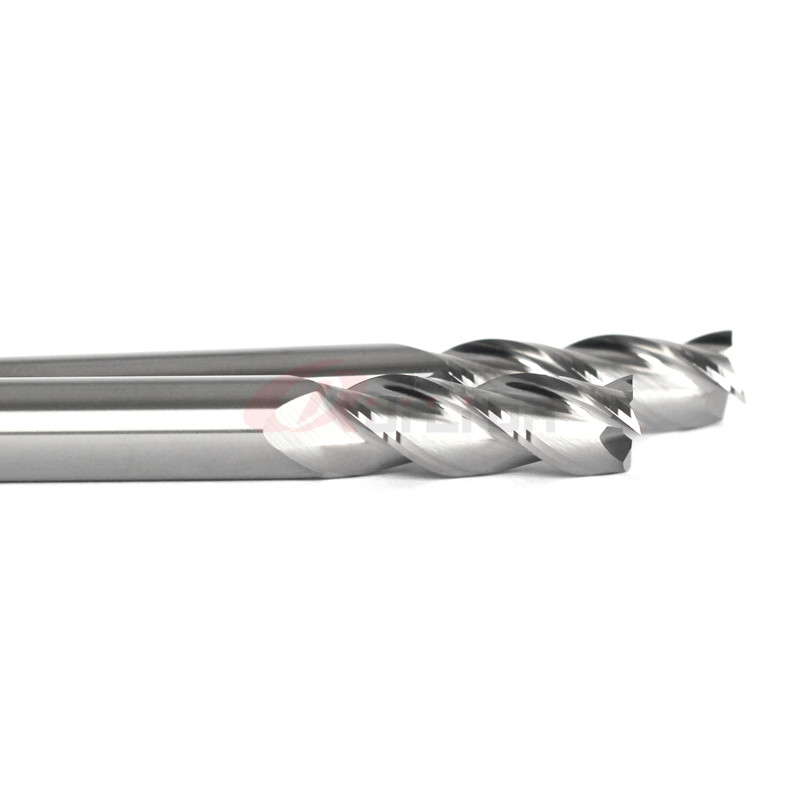

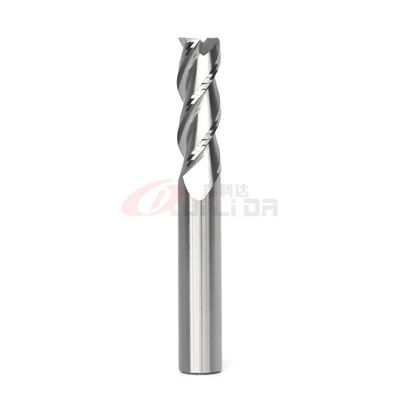

3 Flute 3/8 End Mill For Aluminum 10mm 40 Degree 03 Flute 3/8 End Mill For Aluminum 10mm 40 Degree 1



                                             FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools was established in 2011.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.

We also can send the parcels to your shipping agent in China.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce customized carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.



7. What kind of grinding machines are you using now?

All of our carbide tools are produced by ANCA & machine.

ANCA is imported from Australia, is imported from Germany.



8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
