13/32" 3/4" 3/8" Carbide Roughing End Mill For 6061 Aluminum 10mm Extra Long
![](/images/productalert.jpg)
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | HRC50 3 Flute 10mm Aluminum End Mill For Rough Milling | Flute Dia | 10mm |
---|---|---|---|
Flute Length | 30mm | Overall Length | 75mm |
Coating | Uncoating/customized | Helix | 45 |
Application | Aluminum, Brass, Etc. | Single Ordouble End | Single |
High Light | 3/4 carbide roughing end mill HRC50 RLD,13/32 roughing end mill,RLD carbide roughing end mill for 6061 aluminum 10mm |

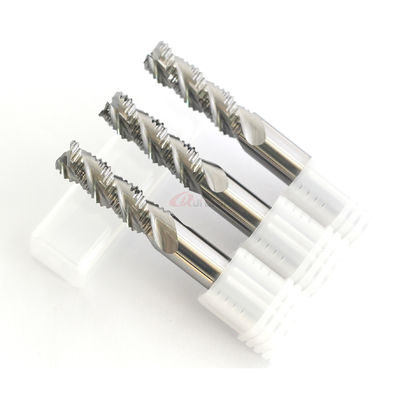

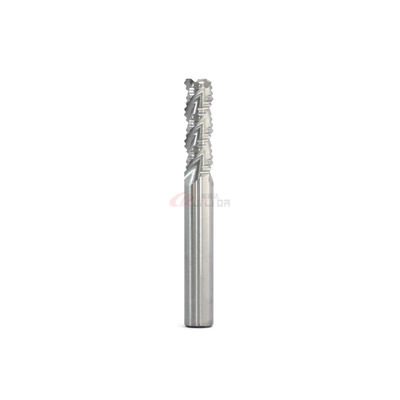

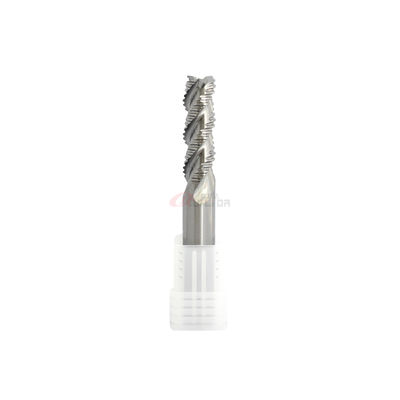

HRC50 Aluminum End Mill Roughing 3 Flutes 10mm End Mill Bits For Aluminum
Roughing End Mills, also known as ripping cutters or hoggers, are designed to remove
large amounts of metal quickly and more efficiently than standard end mills.
Product name |
HRC50 Aluminum End Mill 10mm Roughing End Mill |
Feature | Coarse pitch with high efficiency |
Suitable for | Aluminum material |
Machine type | CNC Milling Machine |
Flutes | 3 |
Coating | Uncoated |
Helix angle | 45° |
Co | 10% |
HRA | 91.8 |
TRS Min(N/mm²) | 3800 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 |
YG10X |
0.6μm |
91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 |
WF25 |
0.6μm |
92.2 |
Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 |
GU25UF |
0.4μm |
92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 |
GU092 |
0.2μm |
93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized |
HRC50 Roughing End Mill for Aluminum |
||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
6 | 50 | 18 | 6 | 3 |
8 | 60 | 24 | 8 | 3 |
10 | 75 | 30 | 10 | 3 |
12 | 75 | 36 | 12 | 3 |
14 | 100 | 45 | 14 | 3 |
16 | 100 | 45 | 16 | 3 |
18 | 100 | 45 | 18 | 3 |
20 | 100 | 45 | 20 | 3 |
FAQ
1. Can this end mill be used for cutting brass.
Yes, it can be used for cutting aluminum, brass, soft material.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
4. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
5. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
6. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
7. Can you produce special carbide tools?
Yes, we can.
