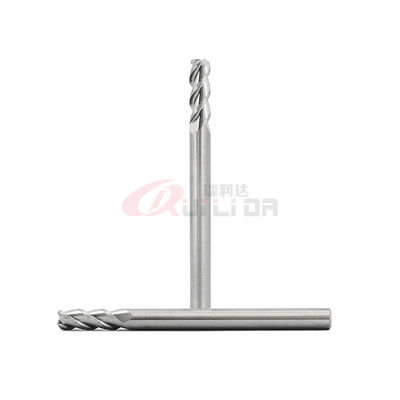

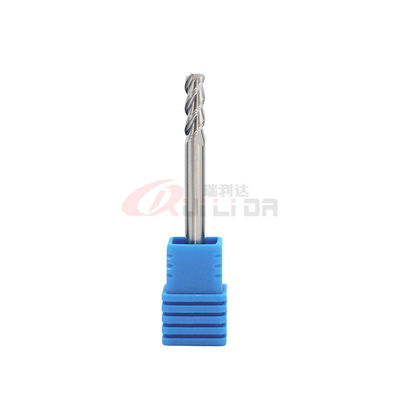

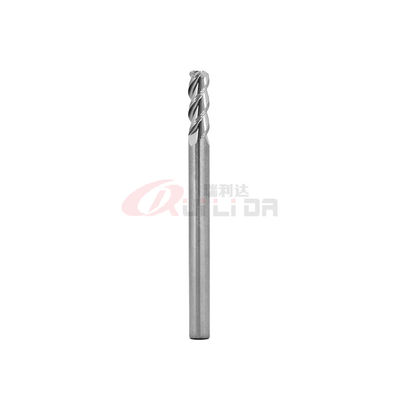

4mm 0.157" .125 Corner Radius End Mill 3 Flute Aluminum End Mill 45 Degree Carbide HRC50
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 3 Flute Corner Radius Aluminum End Mill 4R1 | Flute Dia | 4R1 |
|---|---|---|---|
| Flute Length | 10mm | Overall Length | 50mm |
| Shank Dia | 4mm | Tolerance | 0/0.02mm |
| Origin | Jiangsu ,China | Brand | RLD |
| High Light | 4mm 0.157" corner radius end mill 3 flute,3 flute aluminum end mill 45 degree HRC50,4mm 0.157" carbide end mill 3 flute |
||
Product Description
HRC50 3 Flute Aluminum End Mill 4R1 Solid Carbide Corner Corner Rounding Tool
Aluminum is one of the most commonly machined materials, as most forms of the material feature excellent machinability, and is thus a commonly used material in manufacturing.
Because of this, the competition for aluminum machining can be intense.
Understanding the basics behind tool selection, running parameters, and advanced milling techniques for aluminum can help machinists earn a competitive advantage.
| Product name | RLD HRC50 3 flute Corner Radius Aluminum End Mill 4R1 |
| Size | 4R1×10×50×4D×3F |
| Suitable for | Aluminum, plastic, brass, etc. |
| Feature | Finishing |
| Flute Number | 3 |
| Coating | Uncoated/DLC |
| Helix angle | 45 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
| RLD 3F HRC50 Corner Radius Aluminum End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1R0.2 | 50 | 3 | 4 | 3 |
| 2R0.2 | 50 | 6 | 4 | 3 |
| 3R0.2, 0.5 | 50 | 9 | 4 | 3 |
| 4R0.2, 0.5 | 50 | 12 | 4 | 3 |
| 6R0.5, 1 | 50 | 18 | 6 | 3 |
| 6R0.5, 1 | 75 | 24 | 6 | 3 |
| 60.5, 1 | 100 | 30 | 6 | 3 |
| 8R0.5, 1 | 60 | 24 | 8 | 3 |
| 8R0.1, 1 | 75 | 32 | 8 | 3 |
| 8R0.5, 1 | 100 | 40 | 8 | 3 |
| 10R0.5, 1 | 75 | 30 | 10 | 3 |
| 10R05, 1 | 100 | 40 | 10 | 3 |
| 12R0.5,1,2,3 | 75 | 36 | 12 | 3 |
| 12R0.5,1,2,3 | 100 | 45 | 12 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Can you do OEM?
Yes, we can make the laser engraving and customized label.
6. What kind of grinding machines are you using now?
We are using ANCA & machines for all of our end mills.
7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
