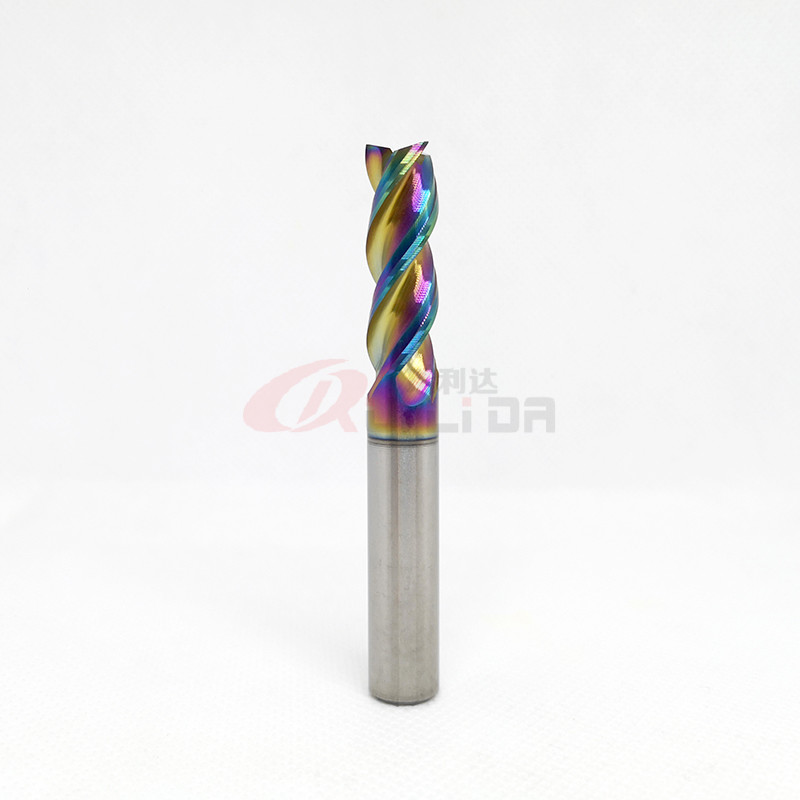

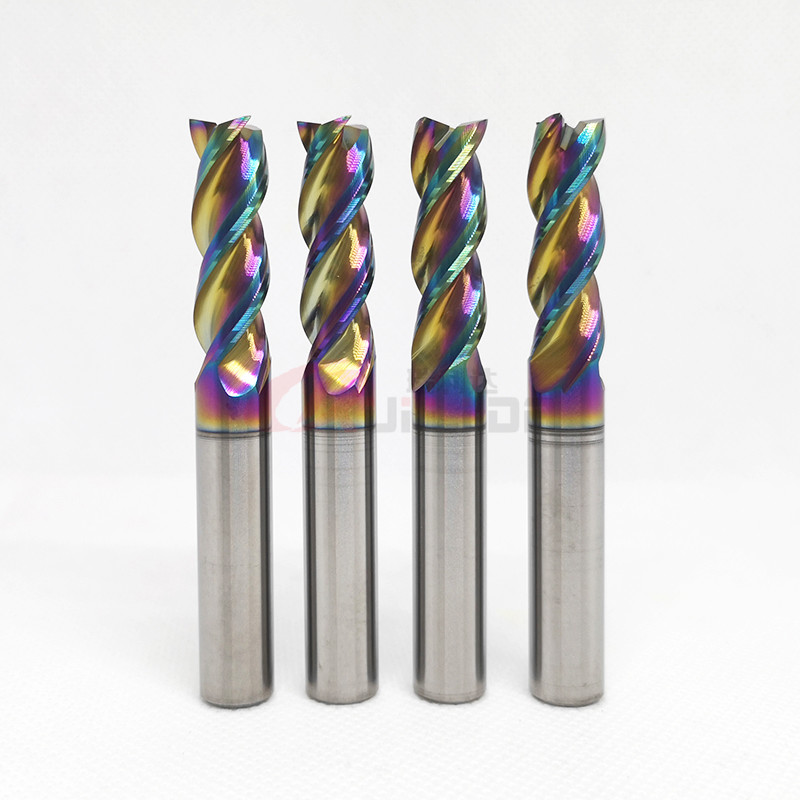

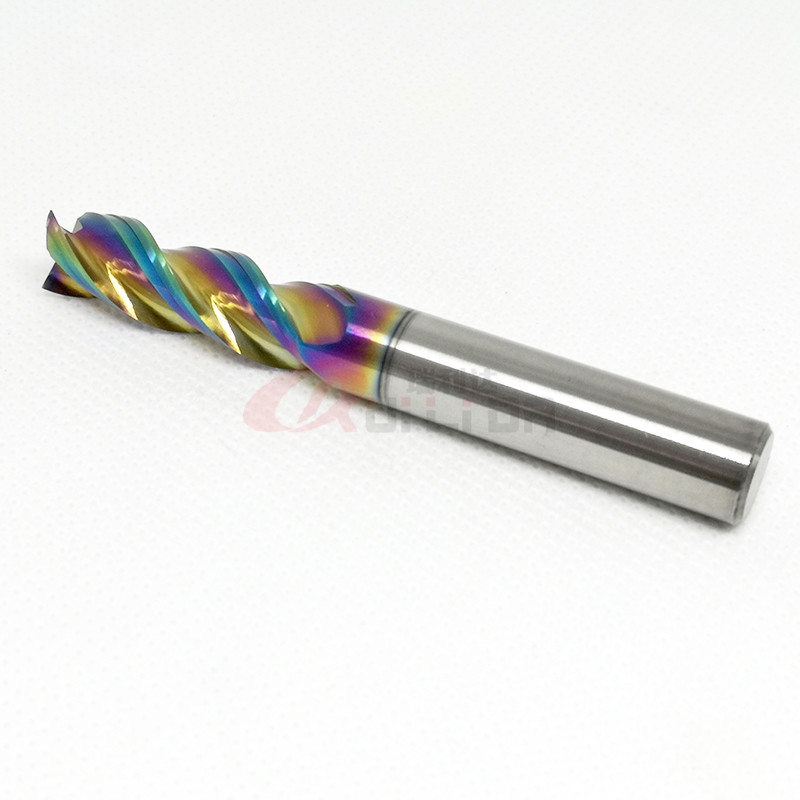

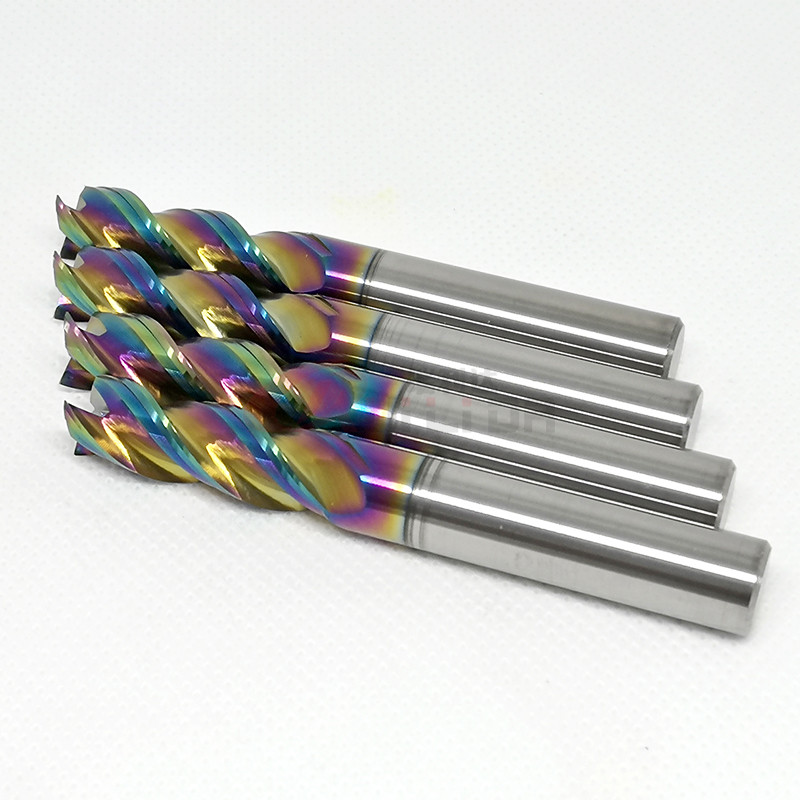

10mm 3/8" Aluminum End Mill Hss Roughing With 3 Flute DLC Coating

Place of Origin China
Brand Name RLD Tools
Model Number HRC55
Minimum Order Quantity 10
Price Negotiable
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product Name HRC55 10mm High Efficiency Aluminum End Mill Flute Dia 10mm
Flute Length 30mm Overall Length 75mm
Shank Dia 10mm Feature Roghing And Finishing
Coating DLC Coating Helix 40
Origin Jiangsu, China
High Light

hss end mill aluminum HRC55 RLD


40 degree end mill HRC55 RLD


10mm 3/8" Aluminum End Mill hss roughing

Leave a Message
Product Description

3 Flute Carbide Aluminum End Mill With DLC Coating 10mm Aluminium Milling Bits


End mills for aluminum are often available in either 2 flute or 3 flute styles.

With higher flute counts, it would become difficult to evacuate chips effectively at the high speeds at which you can run in aluminum.

This is because aluminum alloys leave a large chip, and chip valleys become smaller with each additional flute on an end mill.


Product name RLD HRC55 3 flutes 10mm Aluminum End Mill
Size  10×30×75×10D×3F
Suitable for  Rough milling
Feature  High efficiency with durable tool life
Flute Number  3
Coating  DLC coating
Helix angle  40
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/



                                             Carbide Raw Material Introduction


End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62


                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to your requirement



RLD High-efficiency Aluminum End Mill with DLC coating

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
4 50 12 4 3
6 50 18 6 3
8 60 24 8 3
10 75 30 10 3
12 75 36 12 3


Our package


Step1: The end mill has been finished producing and sent to the warehouse


Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band


Step3: Use the air bubble film to encase the plastic pipe


Step4: Put the goods encased with air bubble film in small packing cartons


Step5: Put another air bubble film on the goods and packaging


Step6: Sent by logistics company or express according to customer's need

10mm 3/8" Aluminum End Mill Hss Roughing With 3 Flute DLC Coating 010mm 3/8" Aluminum End Mill Hss Roughing With 3 Flute DLC Coating 1



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide round tools was established in 2011.


2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.

We also can send the parcels to your shipping agent in China.


3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.


4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.


5. Can you produce customized carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.


6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.


7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.


8. What kind of grinding machines are you using now?

ANCA & machines.

ANCA machine is imported from Australia.

machine is imported from Germany.

9. Where is your factory located?
Our factory is located in Changzhou city, Jiangsu province, China.
