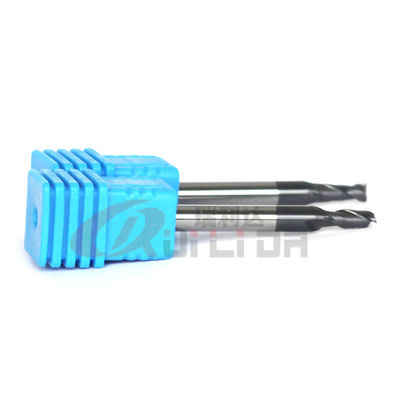

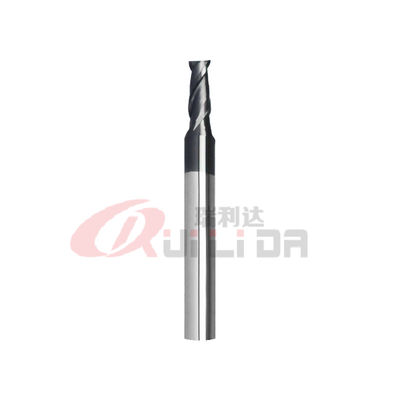

3/16" 5mm 2 Flute Hss End Mill 1/4 Inch Flat End Mill Bits 6mm Shank CNC
Place of Origin | China |
---|---|
Brand Name | RLD Tools |
Model Number | HRC50-5mm |
Minimum Order Quantity | 1 |
Price | 3.0USD/negotiable |
Packaging Details | 1pcs end mill in a plastic tube, 10pcs a rubber bundle, then in a carton. |
Delivery Time | 6-7 work days |
Payment Terms | T/T/PayPal/Credit Card |
Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct | HRC50 2 Flute 5mm Carbide Flat Endmill | Raw Material | ZY10EF |
---|---|---|---|
Flute Number | 2 | Diameter | 5mm |
Flute Length | 13mm | Overall Length | 50mm |
Shank Diameter | 6mm | Application | Slot Milling For Iron, Steel, Cast Iron, Etc. |
Helix | 35° | ||
High Light | 3/16" 5mm 2 flute hss end mill,1/4 flat end mill HRC50 RLD,1/4 inch flat end mill bits 6mm Shank |
OEM RLD HRC50 2 Flute 5mm Tungsten Solid Carbide Flat End Mills CNC Milling Cutter 6mm Shank
AlTiN coating
1. Increase tool life for milling
Wide application
Suitable for cutting iron, cast iron, stainless steel, low alloy steel, general steel under hardness HRC45
Tail Chamfer Design
1. Easy to install
2. Clamp safely
3. Stability for milling
Product name | RLD HRC50 2 flutes 5mm Flat Carbide End Mill |
Specification | 5*13*50*6D*2F |
Suitable for | Iron material |
Machine type | CNC milling machine |
Flutes | 2 |
Coating | AlTiN/Customized |
Helix Angle | 35° |
Co | 10% |
HRA | 91.8 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized according to your requirement. |
RLD HRC50 Square End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2.5 | 4 | 2/4 |
1.5 | 50 | 4 | 4 | 2/4 |
2 | 50 | 5 | 4 | 2/4 |
2.5 | 50 | 6.5 | 4 | 2/4 |
3 | 50 | 7.5 | 3 | 2/4 |
3 | 50 | 7.5 | 4 | 2/4 |
3.5 | 50 | 9 | 4 | 2/4 |
4 | 50 | 10 | 4 | 2/4 |
4 | 75 | 14 | 4 | 2/4 |
4 | 100 | 18 | 4 | 2/4 |
5 | 50 | 13 | 5 | 2/4 |
5 | 50 | 13 | 6 | 2/4 |
6 | 50 | 15 | 6 | 2/4 |
6 | 75 | 21 | 6 | 2/4 |
6 | 100 | 27 | 6 | 2/4 |
8 | 60 | 20 | 8 | 2/4 |
8 | 75 | 30 | 8 | 2/4 |
8 | 100 | 35 | 8 | 2/4 |
10 | 75 | 25 | 10 | 2/4 |
10 | 100 | 40 | 10 | 2/4 |
12 | 75 | 30 | 12 | 2/4 |
12 | 100 | 45 | 12 | 2/4 |
14 | 100 | 45 | 14 | 2/4 |
16 | 100 | 45 | 16 | 2/4 |
18 | 100 | 45 | 18 | 2/4 |
20 | 100 | 45 | 20 | 2/4 |
6 | 150 | 35 | 6 | 2/4 |
8 | 150 | 50 | 8 | 2/4 |
10 | 150 | 55 | 10 | 2/4 |
12 | 150 | 60 | 12 | 2/4 |
14 | 150 | 65 | 14 | 2/4 |
16 | 150 | 65 | 16 | 2/4 |
18 | 150 | 65 | 18 | 2/4 |
20 | 150 | 75 | 20 | 2/4 |

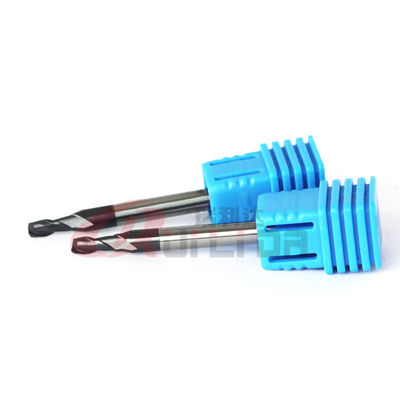

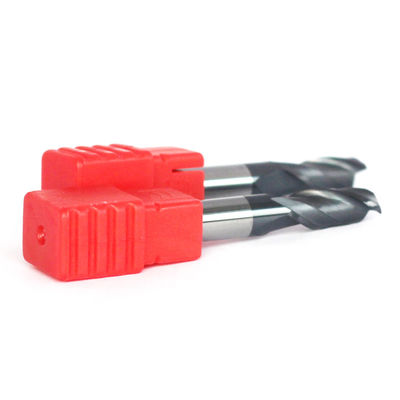

More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large quantities, we can send by air or by sea.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
For customized tools, 30% in advance, the balance amount is paid before shipment.
T/T, Trade Assurance on Alibaba (credit card), etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
7. Do you have any discounts?
Yes, our company has discounts according to the purchase amount.
8. How do you ensure the stability of quality?
We only cooperate with big rod suppliers like CB, GESAC, Zhangyuan Carbide.
So don't need to worry about the stability of quality.
We promise the quality is the same as the samples we send.
