6mm 10mm 3/8" Solid Carbide 2 Flute Straight End Mill

Place of Origin China
Brand Name RLD Tools
Model Number HRC50-10mm
Minimum Order Quantity 1
Price EXW 9.0USD/negotiable
Packaging Details 1pcs end mill in a plastic tube, 10pcs a rubber bundle, then in a carton.
Delivery Time 6-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HRC50 2 Flute 10mm Carbide Flat Endmill Raw Material ZY10EF
Flute Number 2 Diameter 10mm
Flute Length 25mm Overall Length 75mm
Shank Diameter 10mm Application Slot Milling For Iron, Steel, Cast Iron, Etc.
Helix 35°
High Light

6mm 3/8" 2 flute straight end mill

,

6mm 10mm 3/8" straight end mill

,

10mm 3/8" 2 flute straight end mill HRC50

Leave a Message
Product Description

China Factory HRC50 2 Flute 10mm Tungsten Solid Carbide CNC Milling bits with AlTiN Coating​



Product name RLD HRC50 2 flutes 10mm Flat Carbide End Mill
Specification 10*25*75*10D*2F
Suitable for  Iron, steel under the hardness HRC45
Machine type CNC milling machine
Flutes 2
Coating   AlTiN/Customized
Helix Angle  35°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





                                   RLD HRC50 Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2.5 4 2/4
1.5 50 4 4 2/4
2 50 5 4 2/4
2.5 50 6.5 4 2/4
3 50 7.5 3 2/4
3 50 7.5 4 2/4
3.5 50 9 4 2/4
4 50 10 4 2/4
4 75 14 4 2/4
4 100 18 4 2/4
5 50 13 5 2/4
5 50 13 6 2/4
6 50 15 6 2/4
6 75 21 6 2/4
6 100 27 6 2/4
8 60 20 8 2/4
8 75 30 8 2/4
8 100 35 8 2/4
10 75 25 10 2/4
10 100 40 10 2/4
12 75 30 12 2/4
12 100 45 12 2/4
14 100 45 14 2/4
16 100 45 16 2/4
18 100 45 18 2/4
20 100 45 20 2/4
6 150 35 6 2/4
8 150 50 8 2/4
10 150 55 10 2/4
12 150 60 12 2/4
14 150 65 14 2/4
16 150 65 16 2/4
18 150 65 18 2/4
20 150 75 20 2/4



Our package


Step1: The end mill has been finished producing and sent to the warehouse


Step2: One cutter put in a plastic tube, 10pieces per group with a rubber band.


Step3: Use the air bubble film to encase the plastic pipe


Step4: Put the goods encased with air bubble film in small packing cartons


Step5: Put another air bubble film on the goods and packaging


Step6: Sent by logistics company or express according to customer's need





More pictures

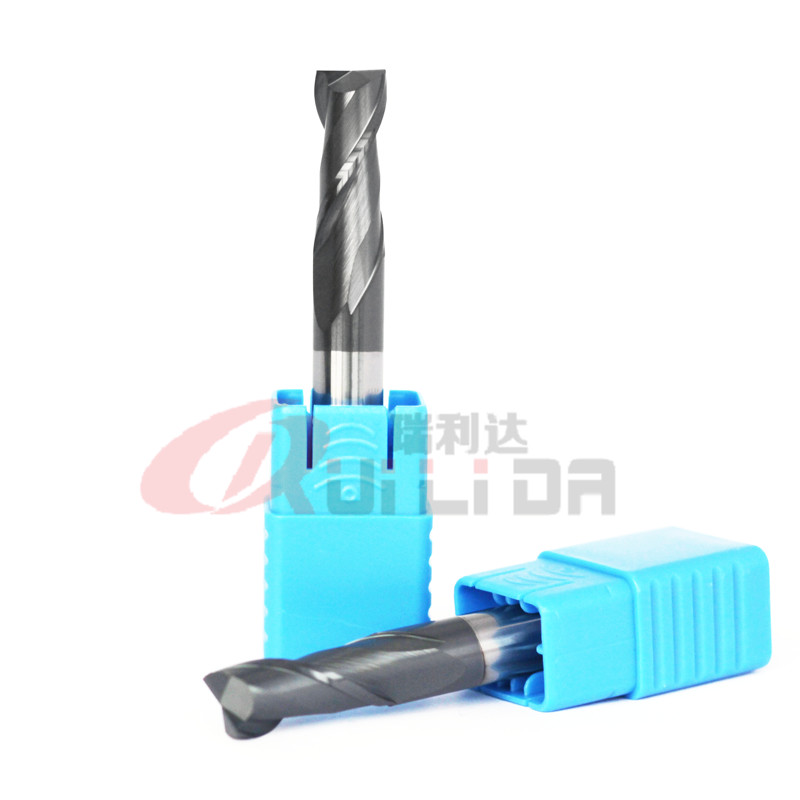

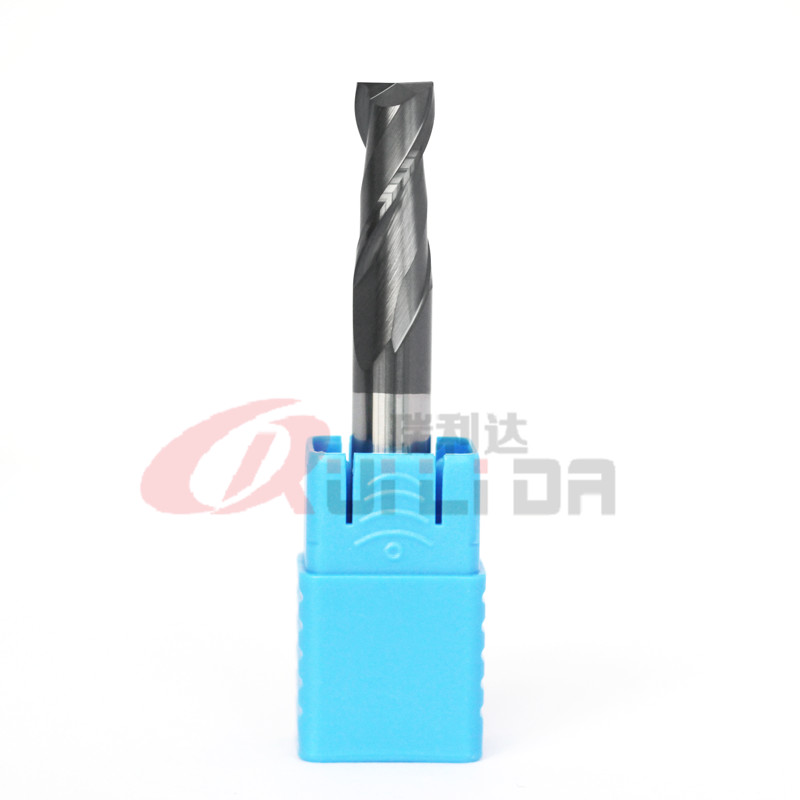

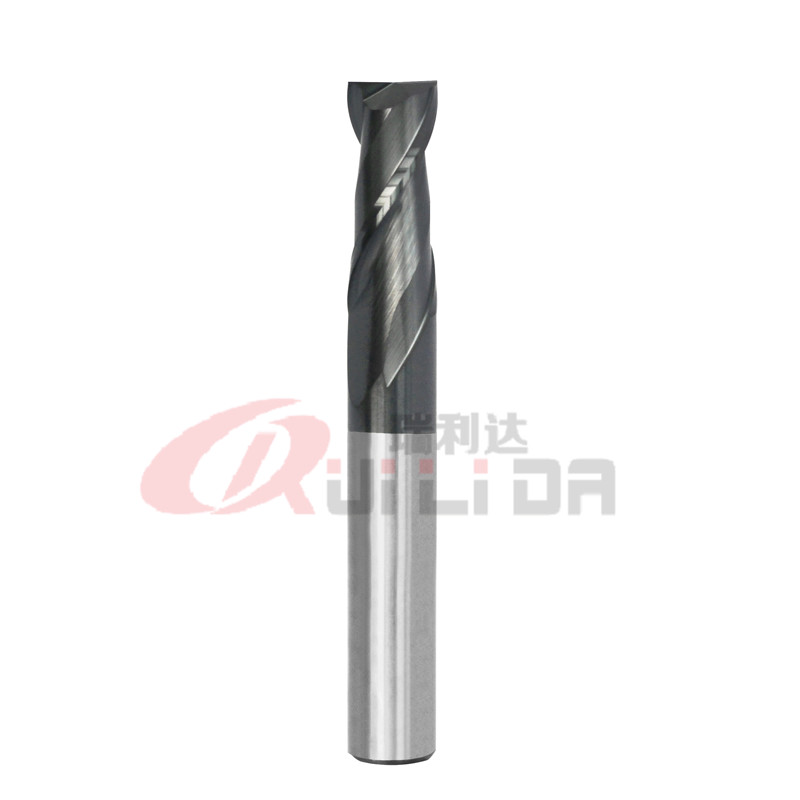

6mm 10mm 3/8" Solid Carbide 2 Flute Straight End Mill 06mm 10mm 3/8" Solid Carbide 2 Flute Straight End Mill 1



                                                      FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machine do you use?

We mainly use ANCA & machine.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

For large quantities, we can send by air or by sea.

We also can send the goods to your shipping agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance on Alibaba (credit card), etc.
For customized tools, 30% in advance, the balance is paid before shipment.



6. Can you produce special carbide tools?

Yes, our company can produce customized sizes carbide tools according to the drawing.



7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Please send an inquiry to us for more details.



8. Where is your factory?

Our factory is in Changzhou City, Jiangsu Province, China.
