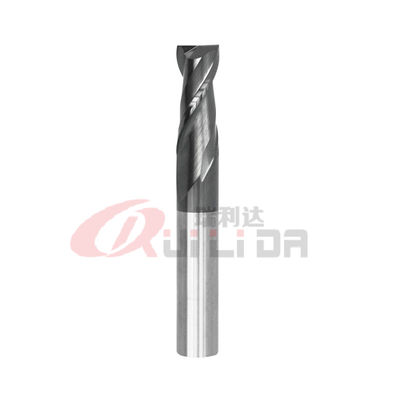

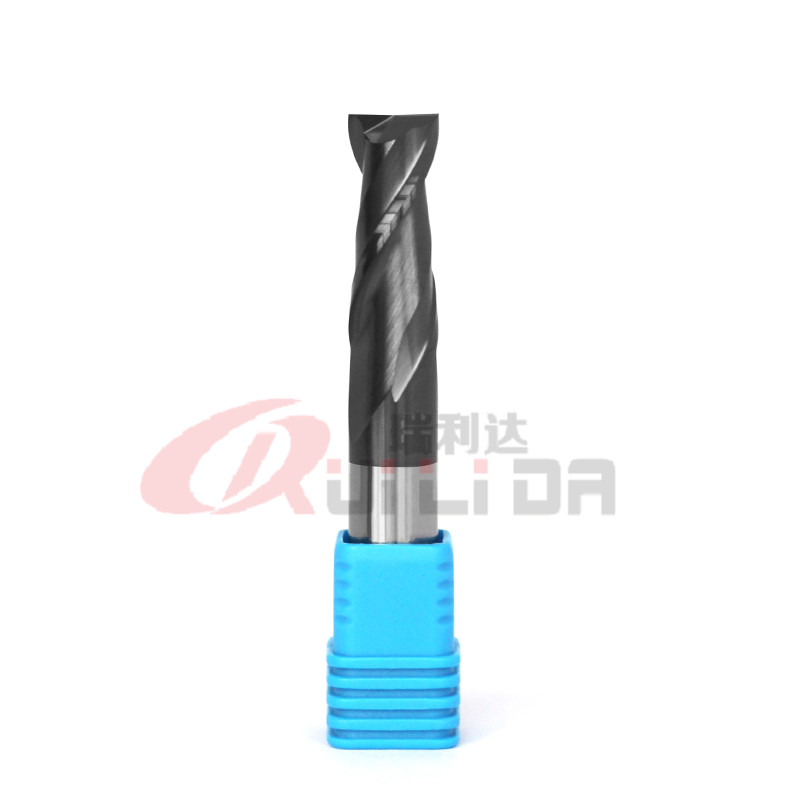

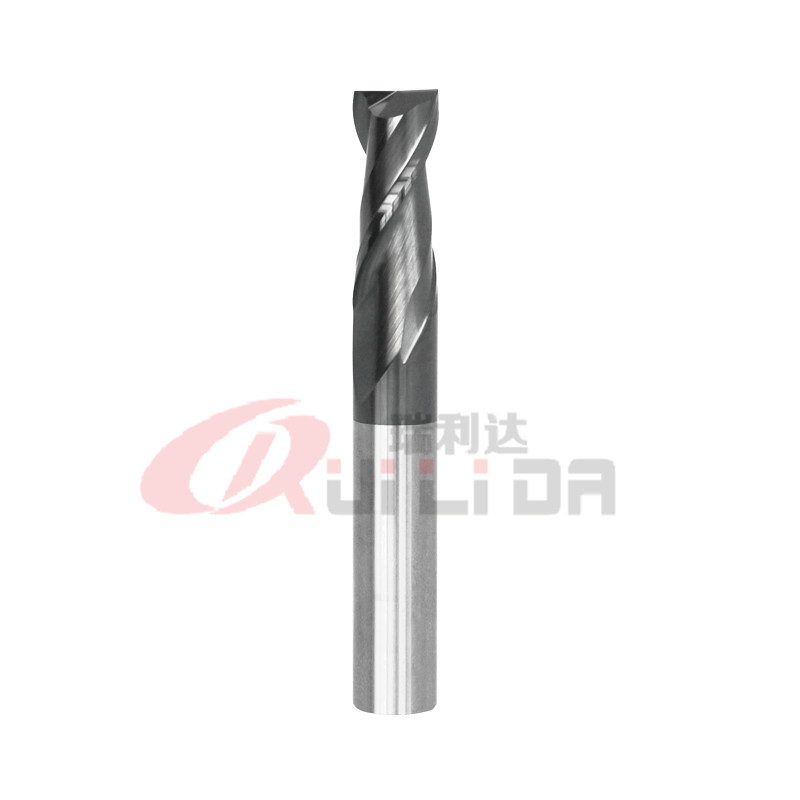

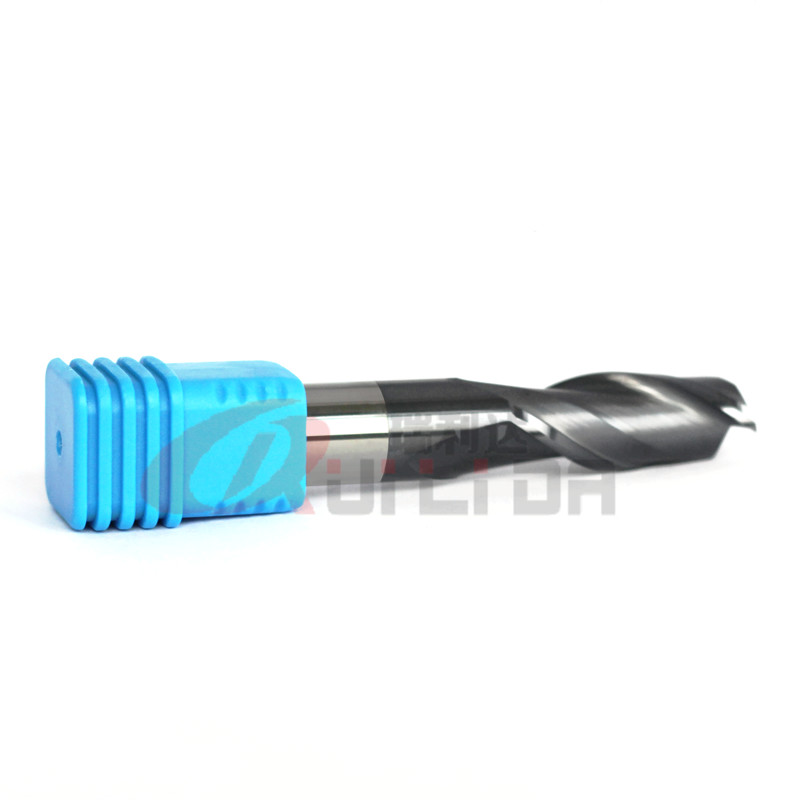

0.5" 12mm Two Flute End Mill Steel Tungsten Carbide Milling Cutters CNC
Place of Origin | China |
---|---|
Brand Name | RLD Tools |
Model Number | HRC50-12mm |
Minimum Order Quantity | 1 |
Price | EXW 13.0USD/negotiable |
Packaging Details | 1pcs end mill in a plastic tube, 10pcs a rubber bundle, then in a carton. |
Delivery Time | 6-7 work days |
Payment Terms | T/T/PayPal/Credit Card |
Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct | HRC50 2 Flute 12mm Carbide Flat Endmill | Raw Material | ZY10EF |
---|---|---|---|
Flute Number | 2 | Diameter | 12mm |
Flute Length | 30mm | Overall Length | 75mm |
Shank Diameter | 12mm | Application | Iron, Steel Under Hardness HRC45 |
Coating | AlTiN | ||
High Light | 0.5" 12mm two flute end mill,0.5" 12mm 2 flute end mill steel,0.5" 12mm end mill cutter 2 flute |
China Manufacturer HRC50 2 Flute 12mm Dia Tungsten Solid Carbide Square End Mill CNC Milling Cutter
Product name | RLD HRC50 2 flutes 12mm Flat Carbide End Mill |
Specification | 12*30*75*12D*2F |
Suitable for | Iron, steel under the hardness HRC45 |
Machine type | CNC milling machine |
Flutes | 2 |
Coating | AlTiN/Customized |
Helix Angle | 35° |
Co | 10% |
HRA | 91.8 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized |
RLD HRC50 Square End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2.5 | 4 | 2/4 |
1.5 | 50 | 4 | 4 | 2/4 |
2 | 50 | 5 | 4 | 2/4 |
2.5 | 50 | 6.5 | 4 | 2/4 |
3 | 50 | 7.5 | 3 | 2/4 |
3 | 50 | 7.5 | 4 | 2/4 |
3.5 | 50 | 9 | 4 | 2/4 |
4 | 50 | 10 | 4 | 2/4 |
4 | 75 | 14 | 4 | 2/4 |
4 | 100 | 18 | 4 | 2/4 |
5 | 50 | 13 | 5 | 2/4 |
5 | 50 | 13 | 6 | 2/4 |
6 | 50 | 15 | 6 | 2/4 |
6 | 75 | 21 | 6 | 2/4 |
6 | 100 | 27 | 6 | 2/4 |
8 | 60 | 20 | 8 | 2/4 |
8 | 75 | 30 | 8 | 2/4 |
8 | 100 | 35 | 8 | 2/4 |
10 | 75 | 25 | 10 | 2/4 |
10 | 100 | 40 | 10 | 2/4 |
12 | 75 | 30 | 12 | 2/4 |
12 | 100 | 45 | 12 | 2/4 |
14 | 100 | 45 | 14 | 2/4 |
16 | 100 | 45 | 16 | 2/4 |
18 | 100 | 45 | 18 | 2/4 |
20 | 100 | 45 | 20 | 2/4 |
6 | 150 | 35 | 6 | 2/4 |
8 | 150 | 50 | 8 | 2/4 |
10 | 150 | 55 | 10 | 2/4 |
12 | 150 | 60 | 12 | 2/4 |
14 | 150 | 65 | 14 | 2/4 |
16 | 150 | 65 | 16 | 2/4 |
18 | 150 | 65 | 18 | 2/4 |
20 | 150 | 75 | 20 | 2/4 |
More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
We mainly use ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large quantities, we can send by air or by sea.
We also can send the goods to your shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance on Alibaba (credit card), etc.
For customized tools, 30% in advance, the balance is paid before shipment.
6. Can you produce special carbide tools?
Yes, our company can produce customized sizes carbide tools according to the drawing.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Please send an inquiry to us for more details.
8. Where is your factory?
Our factory is in Changzhou City, Jiangsu Province, China.
9. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
