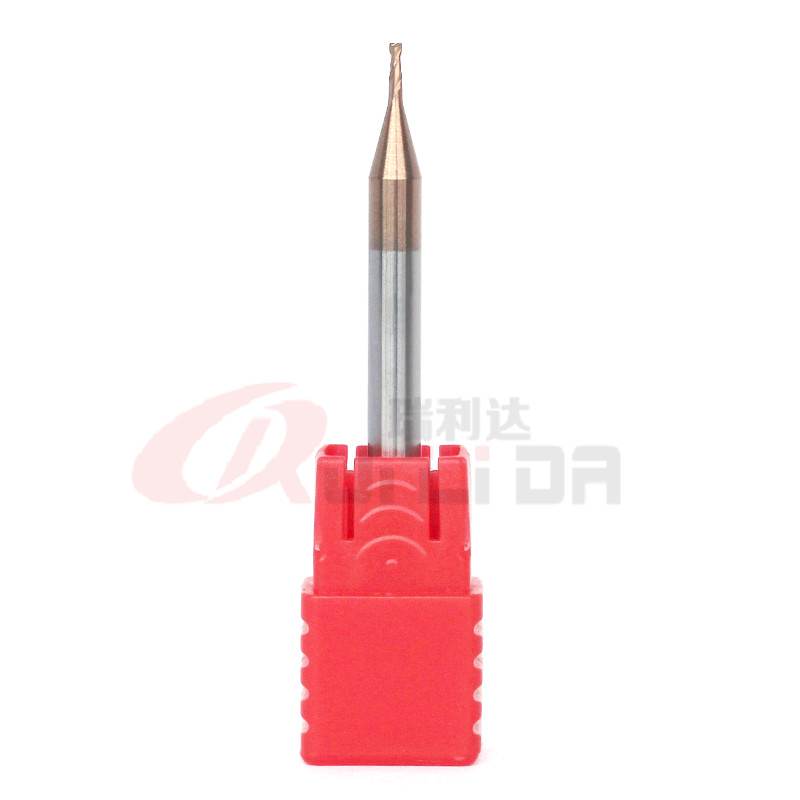

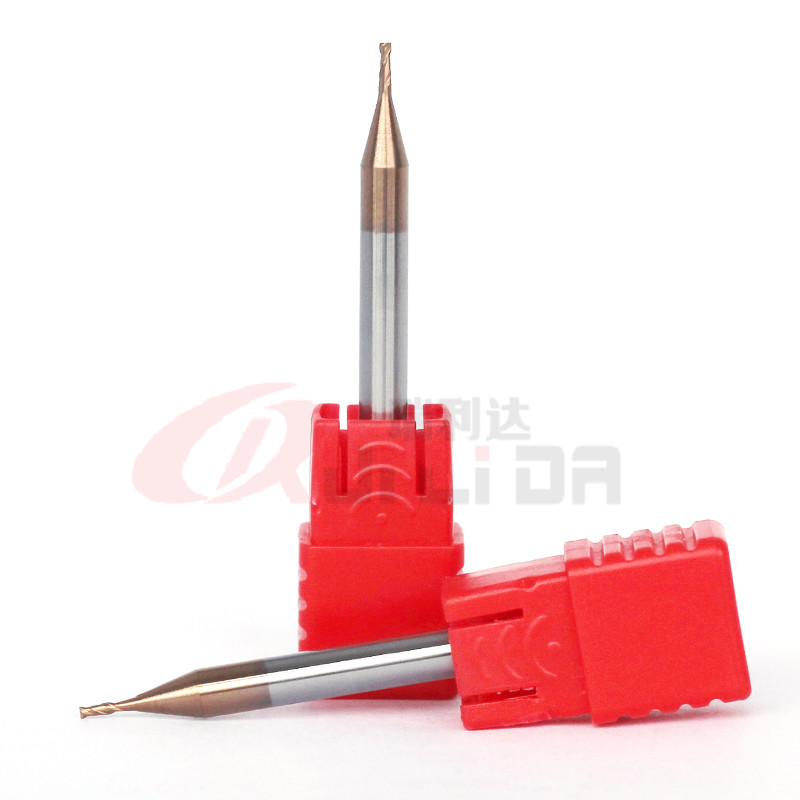

1/25" 1mm Double Flute End Mill 2 Flute Milling Cutter Slot Mills
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC55 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | 1pcs solid carbide end mill in a plastic tube, ten pieces a bundle, then put in carton. |
| Delivery Time | 5-8 business days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC55 2 Flute 1mm Solid Carbide End Mill | Flute Diameter | 1mm |
|---|---|---|---|
| Flute Length | 3mm | Overall Length | 50mm |
| Shank Dia | 4mm | Coating | AlTiSiN |
| Material | WF25 | Number Of Flute | 2 |
| High Light | 1/25" 1mm double flute end mill 2 flute HRC55 RLD,1/25" 1mm 2 flute milling cutter slot mills RLD,1mm end mill cutter HRC55 RLD |
||
Product Description
HRC55 2 Flutes Solid Carbide End Mill Cutter for Slot Milling 1mm End Mill Cutter
| Product name | RLD HRC55 2F 1mm Solid Carbide End Mill |
| Size | 1*3*50*4D*2F |
| Suitable for | Iron, alloy steel, hardened steel, etc. |
| Machine type | CNC Slot Milling |
| Flutes | 2 |
| Coating | AlTiSiN |
| Helix angle | 35 |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA or |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
RLD HRC55 2F Square End Mill Standard Size |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 2 |
| 1.5 | 50 | 4.5 | 4 | 2 |
| 2 | 50 | 6 | 4 | 2 |
| 2.5 | 50 | 7.5 | 4 | 2 |
| 3 | 50 | 9 | 3 | 2 |
| 3 | 50 | 9 | 4 | 2 |
| 3.5 | 50 | 10.5 | 4 | 2 |
| 4 | 50 | 12 | 4 | 2 |
| 4 | 75 | 16 | 4 | 2 |
| 4 | 100 | 20 | 4 | 2 |
| 5 | 50 | 15 | 5 | 2 |
| 5 | 50 | 15 | 6 | 2 |
| 6 | 50 | 18 | 6 | 2 |
| 6 | 75 | 24 | 6 | 2 |
| 6 | 100 | 30 | 6 | 2 |
| 8 | 60 | 24 | 8 | 2 |
| 8 | 75 | 32 | 8 | 2 |
| 8 | 100 | 40 | 8 | 2 |
| 10 | 75 | 30 | 10 | 2 |
| 10 | 100 | 45 | 10 | 2 |
| 12 | 75 | 36 | 12 | 2 |
| 12 | 100 | 45 | 12 | 2 |
| 14 | 100 | 45 | 14 | 2 |
| 16 | 100 | 45 | 16 | 2 |
| 18 | 100 | 45 | 18 | 2 |
| 20 | 100 | 45 | 20 | 2 |
| 6 | 150 | 35 | 6 | 2 |
| 8 | 150 | 50 | 8 | 2 |
| 10 | 150 | 60 | 10 | 2 |
| 12 | 150 | 70 | 12 | 2 |
| 14 | 150 | 65 | 14 | 2 |
| 16 | 150 | 65 | 16 | 2 |
| 18 | 150 | 65 | 18 | 2 |
| 20 | 150 | 70 | 20 | 2 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machines.
The stability of tolerance of ANCA & is better than Chinese grinding machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.
We also can send the goods to your shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce special carbide end mills according to your drawings or samples.
7. Do you have a discount for the large amount?
Yes, our company has a discount for large quantities.
Welcome to send inquiries to us for more details.
8. What kind of inspection facilities do you have.
We have PG1000 and Omega inspection facilities to check the precision of each tool.
