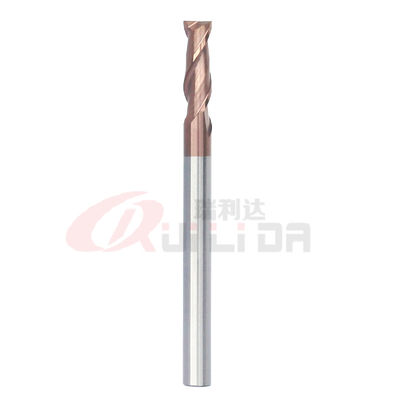

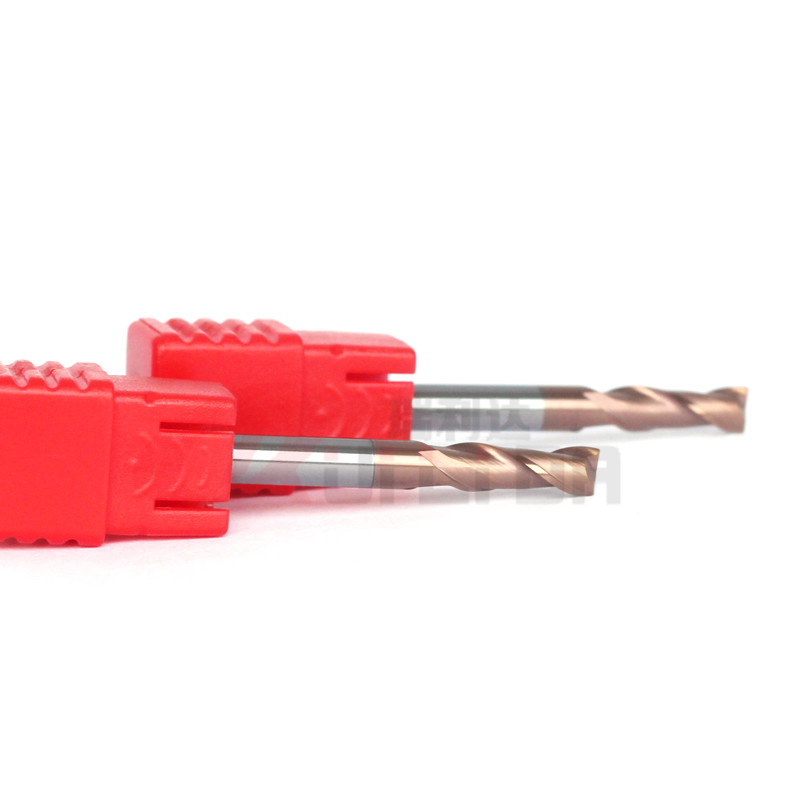

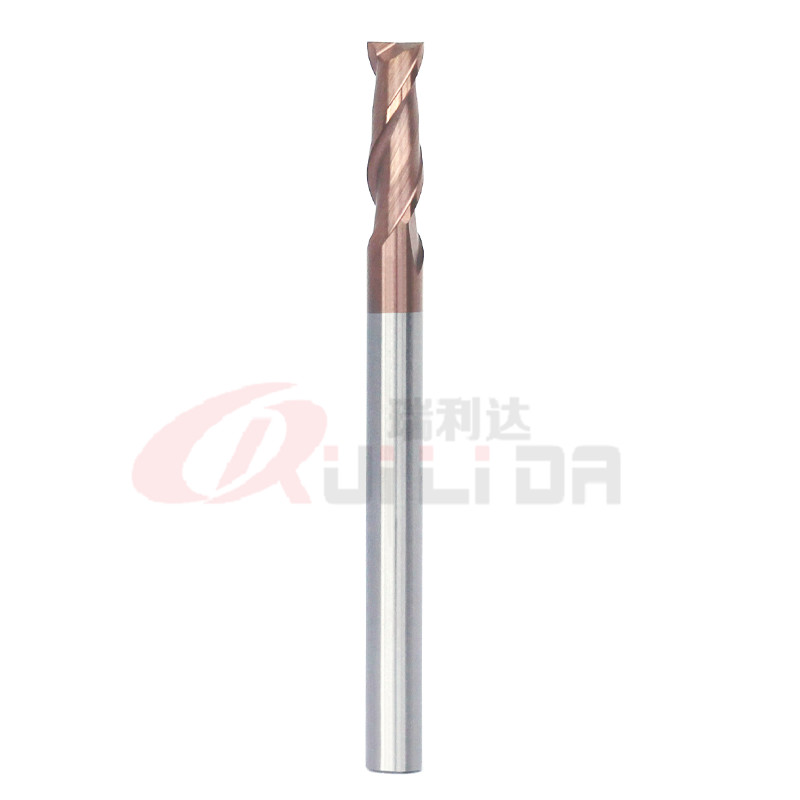

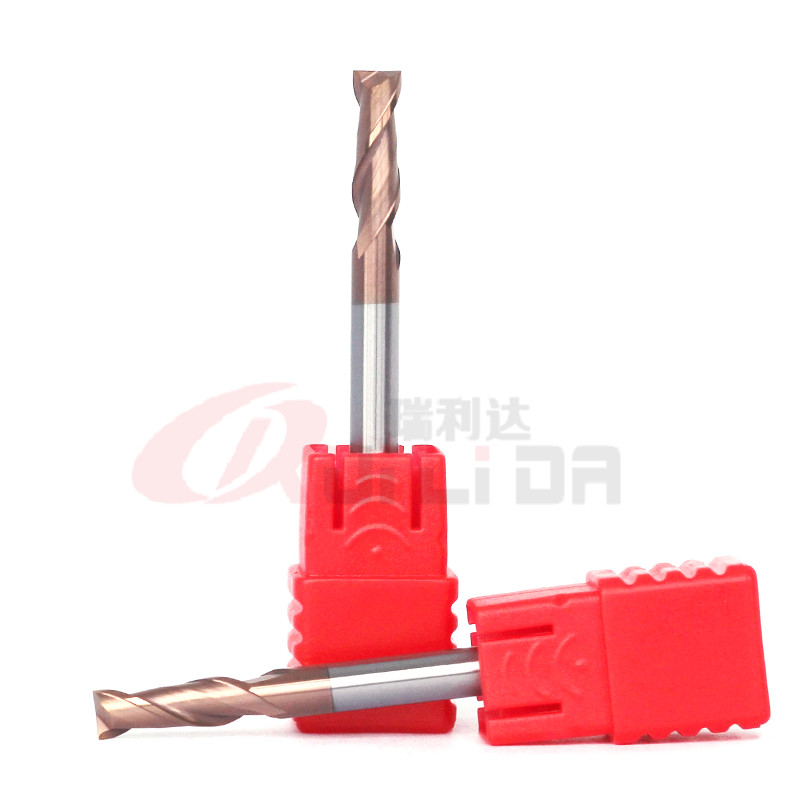

Slot Milling 1/8" 4mm End Mill Cutter 2 Flutes Solid Carbide
Place of Origin | China |
---|---|
Brand Name | RLD Tools |
Model Number | HRC55 |
Minimum Order Quantity | 1 |
Price | Negotiable |
Packaging Details | 1pcs solid carbide end mill in a plastic tube, ten pieces a bundle, then put in carton. |
Delivery Time | 5-8 business days |
Payment Terms | T/T/PayPal/Credit Card |
Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | HRC55 2 Flute 4mm Solid Carbide End Mill | Flute Diameter | 4mm |
---|---|---|---|
Flute Length | 12mm | Overall Length | 50mm |
Shank Dia | 4mm | Coating | AlTiSiN |
Material | CB WF25 | Helix | 35 |
High Light | Slot Milling 1/8" 4mm end mill cutter,1/8" 4mm end mill cutter 2 Flutes,4mm carbide end mill |
HRC55 2 Flutes Solid Carbide End Mill Cutter For Slot Milling 4mm End Mill
Product name | RLD HRC55 2F 4mm Solid Carbide End Mill |
Size | 4*12*50*4D*2F |
Suitable for | Iron, alloy steel, mold steel, etc. |
Machine type | CNC Slot Milling |
Flutes | 2 |
Coating | AlTiSiN |
Helix angle | 35 |
Co | 12% |
HRA | 92.2 |
TRS Min(N/mm²) | 3800 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA or |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized |
RLD HRC55 2F Square End Mill Standard Size |
||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 3 | 4 | 2 |
1.5 | 50 | 4.5 | 4 | 2 |
2 | 50 | 6 | 4 | 2 |
2.5 | 50 | 7.5 | 4 | 2 |
3 | 50 | 9 | 3 | 2 |
3 | 50 | 9 | 4 | 2 |
3.5 | 50 | 10.5 | 4 | 2 |
4 | 50 | 12 | 4 | 2 |
4 | 75 | 16 | 4 | 2 |
4 | 100 | 20 | 4 | 2 |
5 | 50 | 15 | 5 | 2 |
5 | 50 | 15 | 6 | 2 |
6 | 50 | 18 | 6 | 2 |
6 | 75 | 24 | 6 | 2 |
6 | 100 | 30 | 6 | 2 |
8 | 60 | 24 | 8 | 2 |
8 | 75 | 32 | 8 | 2 |
8 | 100 | 40 | 8 | 2 |
10 | 75 | 30 | 10 | 2 |
10 | 100 | 45 | 10 | 2 |
12 | 75 | 36 | 12 | 2 |
12 | 100 | 45 | 12 | 2 |
14 | 100 | 45 | 14 | 2 |
16 | 100 | 45 | 16 | 2 |
18 | 100 | 45 | 18 | 2 |
20 | 100 | 45 | 20 | 2 |
6 | 150 | 35 | 6 | 2 |
8 | 150 | 50 | 8 | 2 |
10 | 150 | 60 | 10 | 2 |
12 | 150 | 70 | 12 | 2 |
14 | 150 | 65 | 14 | 2 |
16 | 150 | 65 | 16 | 2 |
18 | 150 | 65 | 18 | 2 |
20 | 150 | 70 | 20 | 2 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of the solid carbide end mill.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machines.
The stability of tolerance of ANCA & is better than Chinese grinding machines.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide cutting tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you have a discount for the large amount?
Yes, our company has a discount for large quantities.
Welcome to send inquiries to us for more details.
8. What kind of inspection facilities do you have.
We have PG1000 and Omega inspection facilities to check the precision of each tool.
9. How many countries do your company export to?
We are exporting to more than 45 countries all over the world now.
