1/8" 1/2 Ball Nose End Mill Cutter 12mm Carbide End Mill Bits For Aluminum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | HRC60 Ball Nose End Mill 12R6 | ||
---|---|---|---|
High Light | 1/8 ball nose cutter HRC60 RLD,1/2 ball nose router bit,1/2 ball nose cutter HRC60 RLD |

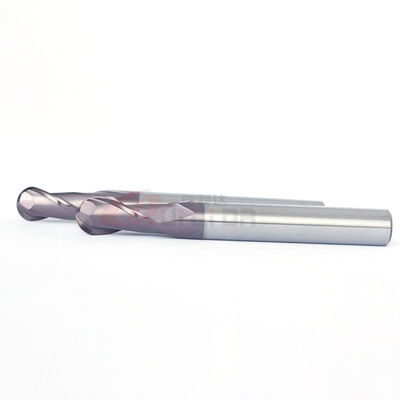

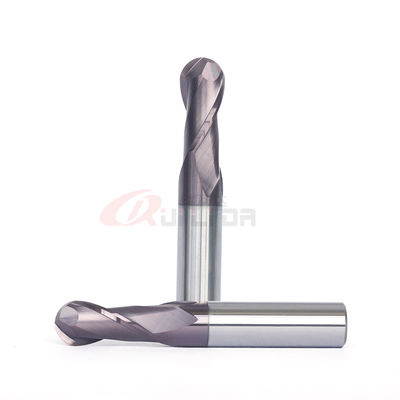

HRC60 Carbide Ball Nose End Mill For Stainless Steel 12mm Ball Mill Tool
Product name | RLD HRC60 2 flute 12R6 ball nose end mill |
Specification | R6*24*75*12D*2F |
Suitable for | Stainless Steel, Inconel, Super Alloy Steel, Mold Steel, etc |
Milling type | CNC Milling Machine |
Flutes | 2 |
Coating | TiAlN/Customized |
Helix | 30 |
Co | 12% |
HRA | 92.5 |
TRS Min(N/mm²) | 4200 |
Flute Tolerance | Within 0/-0.015mm |
Shank Tolerance | h6 |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized according to the workpiece |
RLD HRC60 2F Carbide Ball Nose End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2 | 4 | 2 |
1.5 | 50 | 3 | 4 | 2 |
2 | 50 | 4 | 4 | 2 |
2.5 | 50 | 5 | 4 | 2 |
3 | 50 | 6 | 3 | 2 |
3 | 50 | 7.5 | 4 | 2 |
3.5 | 50 | 9 | 4 | 2 |
4 | 50 | 10 | 4 | 2 |
4 | 75 | 14 | 4 | 2 |
4 | 100 | 18 | 4 | 2 |
5 | 50 | 13 | 5 | 2 |
5 | 50 | 13 | 6 | 2 |
6 | 50 | 15 | 6 | 2 |
6 | 75 | 21 | 6 | 2 |
6 | 100 | 27 | 6 | 2 |
8 | 60 | 20 | 8 | 2 |
8 | 75 | 30 | 8 | 2 |
8 | 100 | 35 | 8 | 2 |
10 | 75 | 20 | 10 | 2 |
10 | 100 | 20 | 10 | 2 |
12 | 75 | 24 | 12 | 2 |
12 | 100 | 24 | 12 | 2 |
14 | 100 | 28 | 14 | 2 |
16 | 100 | 32 | 16 | 2 |
18 | 100 | 36 | 18 | 2 |
20 | 100 | 40 | 20 | 2 |
6 | 150 | 12 | 6 | 2 |
8 | 150 | 16 | 8 | 2 |
10 | 150 | 20 | 10 | 2 |
12 | 150 | 24 | 12 | 2 |
14 | 150 | 28 | 14 | 2 |
16 | 150 | 32 | 16 | 2 |
18 | 150 | 36 | 18 | 2 |
20 | 150 | 40 | 20 | 2 |
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide end mills established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
They are imported from Australia and Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
For large amount, we can send by air or by sea.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T/Credit Card/PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
7. How many countries does your company exported to?
We are exporting to more than 45 countries all over the world now.
8. Where is your factory located?
Our factory is located in Changzhou City, Jiangsu Province, China.
9. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.
