13/16" 9/16" 14mm 16mm Roughing End Mill Cutter For Aluminum HRC60 4 Flutes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC60 Roughing End Mill For Steel 14mm | Coating | AlTiN/customized |
|---|---|---|---|
| Raw Material | GU25UF | Diameter | 14mm |
| Flute Length | 40mm | Overall Length | 100mm |
| Suitable For | Steel, Stainless Steel, Nickel Alloy, Etc | Pitch Type | Fine Pitch |
| High Light | 9/16" 14mm 16mm roughing end mill,9/16" 14mm roughing end mill cutter for aluminum RLD,9/16" 14mm 13/16 roughing end mill |
||
Product Description

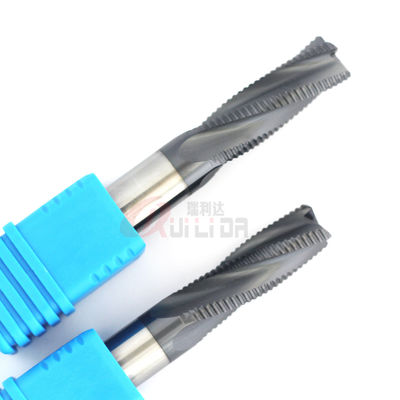

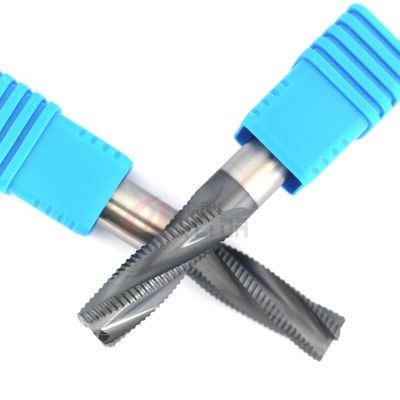

HRC60 4 Flutes 14mm Roughing End Mill Fine Pitch For Stainless Steel
These carbide rougher's are designed with proprietary knuckle geometry.
This design maximizes strength at the cutting edge to remove the maximum
amount of material with minimal vibration or chatter.
This tool works well for hardened steels, titanium, inconel,and other space-age materials
while milling faster than conventional finishing end mills
| Product name |
HRC60 4 Flutes 14mm Roughing End Mill |
| Feature | Fine pitch |
| Suitable for | Steel, stainless steel, titanium |
| Machine type | Rough milling |
| Flutes | 4 |
| Coating | AlTiN |
| Helix angle | 30° |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC60 Roughing End Mill for Steel |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 15 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 10 | 75 | 22 | 10 | 4 |
| 12 | 75 | 27 | 12 | 4 |
| 14 | 100 | 40 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of the solid carbide end mill.
2. Which CNC grinding machine do you use?
ANCA and machine.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. Do you have a discount for the large amount?
Yes, we have a discount for large quantities.
