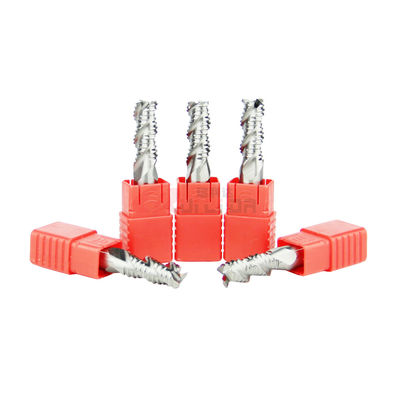

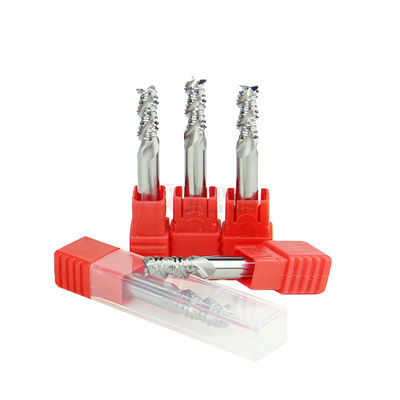

1/4" Extra Roughing Carbide End Mill For Brass Aluminum Uncoated HRC50 3fl
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 Roughing End Mill For Aluminum | Coating | Uncoated/customized |
|---|---|---|---|
| Raw Material | YG10X Carbide | Suitable For | Aluminum, Brass, Soft Metal, Etc |
| Produced By | ANCA / Machine | Origin | Jiangsu, China |
| High Light | extra long roughing end mill HRC50 3fl,extra roughing carbide end mill for brass HRC50 3fl,1/4 carbide roughing end mill HRC50 3fl |
||
Product Description
HRC50 Roughing End Mill Cutter For Aluminum Uncoated Carbide Roughing End Mills
Roughing End Mills, also known as ripping cutters or hoggers,
are designed to remove large amounts of metal quickly and more efficiently than standard end mills.
Coarse tooth roughing end mills remove large chips for heavy cuts, deep slotting
| Product name |
HRC50 3 Flutes Roughing End Mill for Aluminum |
| Feature | Coarse pitch with high efficiency |
| Suitable for | Aluminum material |
| Machine type | CNC Milling Machine |
| Flutes | 3 |
| Coating | Uncoated |
| Helix angle | 45° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
|
HRC50 |
YG10X |
0.6μm |
91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
|
HRC55 |
WF25 |
0.6μm |
92.2 |
Cast Iron, Alloy Steel, General steel under hardness HRC50 |
|
HRC60 |
GU25UF |
0.4μm |
92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
|
HRC65 |
GU092 |
0.2μm |
93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC50 Roughing End Mill for Aluminum |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |
| 14 | 100 | 45 | 14 | 3 |
| 16 | 100 | 45 | 16 | 3 |
| 18 | 100 | 45 | 18 | 3 |
| 20 | 100 | 45 | 20 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer specialized in producing
carbide end mills, carbide drill bits, and carbide reamers.
2. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & machine.
ANCA is from Australia.
is from Germany.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
For large quantities, we can send by air or by sea.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.
7. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
