3/16" 13/32" 5/8" Roughing End Mill For Stainless Steel Fine Pitch HRC60 4 Flutes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC60 Roughing End Mill For Steel 16mm | Coating | AlTiN |
|---|---|---|---|
| Raw Material | GU25UF | Diameter | 16mm |
| Flute Length | 45mm | Overall Length | 100mm |
| Suitable For | Steel, Stainless Steel, Nickel Alloy, Etc | Pitch Type | Fine Pitch |
| High Light | 13/32 roughing end mill HRC60 RLD,3/16 roughing end mill HRC60 RLD,5/8" roughing end mill for stainless steel Fine Pitch |
||
Product Description

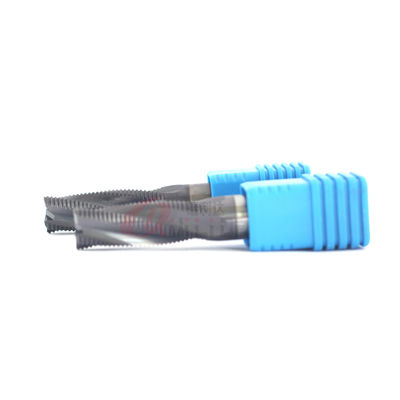

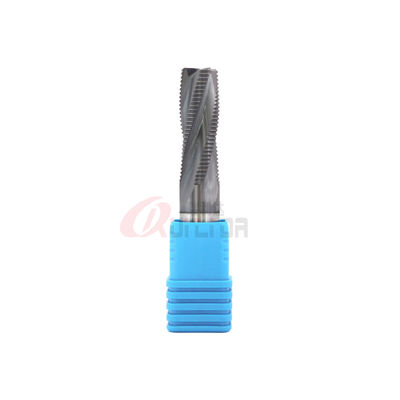

HRC60 4 Flutes 16mm Carbide Roughing End Mill Fine Pitch For Stainless Steel
AlTiN (Aluminum Titanium Nitride)
Properties: Good lubricity and exceptional heat resistance.
Applications: Carbon Steels, Alloy Steels, Tool Steels, Ni Alloys, Ti Alloys, 300 / 400 PH Stainless.
Recommended for: Stainless steels, Ni alloys, Ti alloys, & other high-temperature alloys.
| Product name |
HRC60 4 Flutes 16mm Roughing End Mill |
| Feature | Fine pitch |
| Suitable for | Steel, stainless steel, titanium aloy. |
| Machine type | Rough milling |
| Flutes | 4 |
| Coating | AlTiN |
| Helix angle | 30° |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC60 Roughing End Mill for Steel |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 15 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 10 | 75 | 22 | 10 | 4 |
| 12 | 75 | 27 | 12 | 4 |
| 14 | 100 | 40 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of the solid carbide end mill.
2. Which CNC grinding machine do you use?
ANCA and machine.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
7. Do you have a discount for the large amount?
Yes, we have a discount for large quantities.
