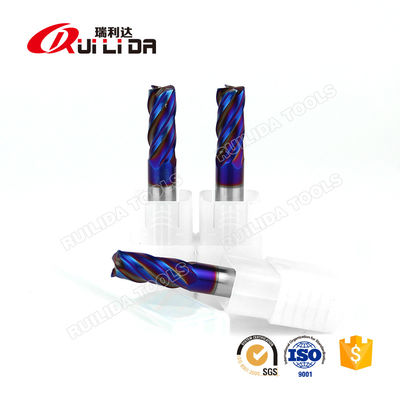

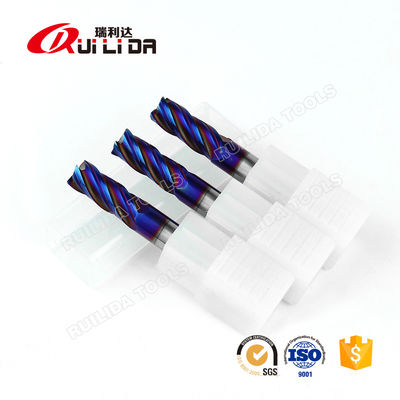

0.118" 3/32 Inch 3mm Hardened Steel End Mills With Corner Radius Cutter 1/4 Shank
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | HRC65 4 Flute Solid Carbide Corner Radius End Mill | Flute Number | 4 |
|---|---|---|---|
| Material | GU092 GESAC | Coating | Blue Coating |
| Suitable For | Hardened Steel, Mold Steel, Titanium | Helix | Variable Helix |
| Single For Double End | Single | Flute Type | Spiral |
| High Light | 3mm end mill with corner radius,0.118" 3mm Hardened Steel End Mills With Corner Radius,3 32 inch end mill 1/4 shank |
||
Product Description
HRC65 4 Flutes Carbide Corner Radius End Mill For Hardened Steel Radius Cutter Mill
Solid carbide provides better rigidity than high-speed steel. It is extremely heat resistant and
used for high-speed applications on stainless steel, titanium, hardened steel, and other tough-to-machine materials.
| Product name | RLD HRC65 corner radius end mill |
| Size | Customized |
| Suitable for | Alloy steel, titanium, hardened steel, mold steel, etc. |
| Machine type | Finishing |
| Flutes | 4 |
| Coating | Bule Nano |
| Helix angle | Variable Helix |
| Co | 9% |
| HRA | 93.5 |
| TRS Min(N/mm²) | 4100 |
| Tolerance | Within 0/-0.015mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
| RLD Corner Radius End Mill Standard Size HRC65 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
| 3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
| 4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
| 4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
| 4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
| 5 (R0.5,1) | 50 | 13 | 6 | 4 |
| 6 (R0.5,1) | 50 | 15 | 6 | 4 |
| 6 (R0.5,1) | 75 | 18 | 6 | 4 |
| 6 (R0.5,1) | 100 | 24 | 6 | 4 |
| 8 (R0.5,1) | 60 | 20 | 8 | 4 |
| 8 (R0.5,1) | 75 | 24 | 8 | 4 |
| 8(R0.5,1) | 100 | 32 | 8 | 4 |
| 10 (R0.5,1) | 75 | 25 | 10 | 4 |
| 10 (R0.5,1) | 100 | 30 | 10 | 4 |
| 12 (R0.5,1) | 75 | 30 | 12 | 4 |
| 12 (R0.5,1) | 100 | 36 | 12 | 4 |
FAQ
1. Do you prepare HRC65 4 Flute Corner Radius End Mill in stock?
Yes, we usually prepare some standard metric sizes in stock.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
The stability of tolerance for ANCA & is good.
4. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For the large amount, we can send by air or by sea.
5. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
6. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
7. Can you produce special carbide tools?
Yes, we can produce customized round carbide tools.
