3/16" 1/8" 1/16" Metric Corner Radius End Mills Extra Long Reach End Mill HRC 65 4Fl

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct | HRC65 6R0.5 4 Flute Solid Carbide Corner Radius End Mill | Flute Dia | 6R0.5 |
---|---|---|---|
Flute Length | 18mm | Overall Length | 75mm |
Coating | Blue Naco Coating | Suitable For | Hard Material |
High Light | 1/16 end mill extra long,1/8 extra long end mill HRC65 RLD,3/16 extra long end mill HRC65 RLD |

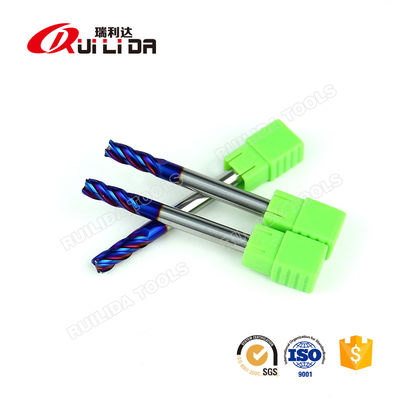

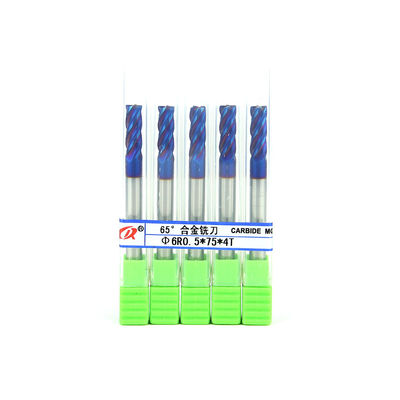

HRC65 4 Flutes Extra Long Corner Radius End Mill 6R0.5 Corner Radius Cutter
Product name | RLD HRC65 corner radius end mill 6R0.5 |
Size | 6R0.5*18*75*6D*4F |
Suitable for | Alloy steel, titanium, hardened steel, mold steel, etc. |
Machine type | Finishing |
Flutes | 4 |
Coating | Bule Nano |
Helix angle | Variable Helix |
Co | 9% |
HRA | 93.5 |
TRS Min(N/mm²) | 4100 |
Tolerance | Within 0/-0.015mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
The coating also can be customized |
RLD Corner Radius End Mill Standard Size HRC65 |
||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
5 (R0.5,1) | 50 | 13 | 6 | 4 |
6 (R0.5,1) | 50 | 15 | 6 | 4 |
6 (R0.5,1) | 75 | 18 | 6 | 4 |
6 (R0.5,1) | 100 | 24 | 6 | 4 |
8 (R0.5,1) | 60 | 20 | 8 | 4 |
8 (R0.5,1) | 75 | 24 | 8 | 4 |
8(R0.5,1) | 100 | 32 | 8 | 4 |
10 (R0.5,1) | 75 | 25 | 10 | 4 |
10 (R0.5,1) | 100 | 30 | 10 | 4 |
12 (R0.5,1) | 75 | 30 | 12 | 4 |
12 (R0.5,1) | 100 | 36 | 12 | 4 |
FAQ
1. Do you prepare HRC65 4 Flute Corner Radius End Mill in stock?
Yes, we usually prepare some standard metric sizes in stock.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
The stability of tolerance for ANCA & is good.
5. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For the large amount, we can send by air or by sea.
6. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
7. Can you produce special carbide tools?
Yes, we can produce customized round carbide tools.
