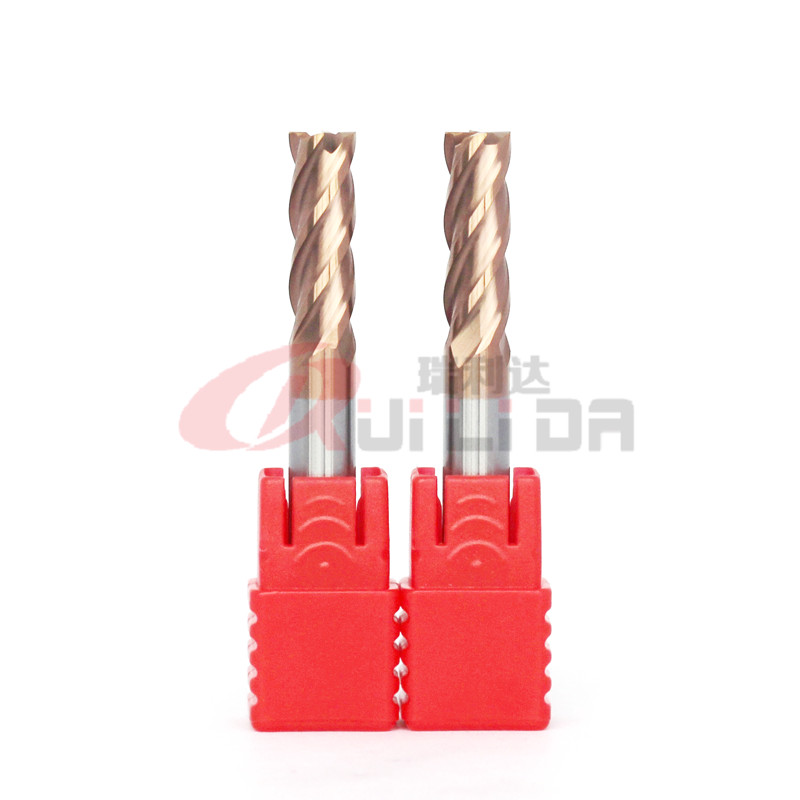

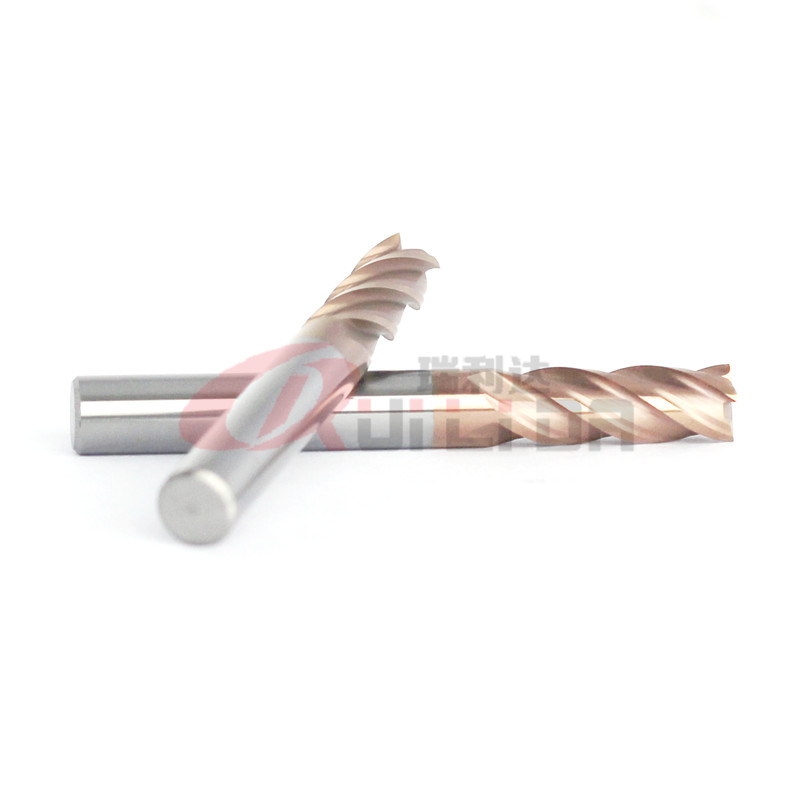

Solid Carbide 1/4 Inch End Mill Extra Long AlTiSiN Coating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Imperial Milling Cutters 1/4" End Mill | Diameter | 1/4" |
---|---|---|---|
Overall Length | 2" | Variable Helix | No |
Variable Index | No | Flute Type | Spiral |
High Light | Carbide 1/4 Inch End Mill Extra Long AlTiSiN,1/4 extra long end mill HRC55 RLD,Imperial carbide mill bits |
HRC55 Imperial Milling Cutters 4 Flutes 1/4" Extra Long Carbide End Mill Cutter
End mills are used for carving out pockets, for producing grooves or contours,
as well as for milling over surfaces or edges. With a finishing cutter,
very good dimensional accuracy and a smooth surface can be achieved at high speeds and at a low feed rate.
Product name | HRC50 Imperial Milling Cutters 4 Flutes 1/4" End Mill |
Feature | Wide application |
Suitable for | Hardened steel, stainless steel, iron, cast iron, etc. |
Machine type | CNC milling machine |
Flutes | 4 |
Coating | AlTiSiN / customized |
Helix | 35 degree |
Co | 12% |
HRA | 92.2 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized according to your requirement. |
Clent's Feedback
FAQ
1. Do you prepare inch size carbide end mill in stock?
For inch size end mill, we only produce against the order.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide end mills, drill bits, and reamers.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
ANCA is from Australia
is from Germany.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY is also acceptable.
6. What kind of inspection facilities do you have.
We have PG1000, Omega to ensure the precision of each tool.
