16mm 5/8 Inch Roughing Imperial Milling Cutters Router Bit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | HRC60 Roughing End Mill For Steel 5/8 Inch | Raw Material | GU25UF Rod |
---|---|---|---|
Diameter | 5/8 Inch | Flute Length | 1.75 Inch |
Overall Length | 4 Inch | Suitable For | Super Alloy Steel, Stainless Steel, Hard Steel, Etc |
Milling Type | Rough Milling | Feature | Fine Pitch |
High Light | 16mm milling cutter,end milling cutter 16 mm,Imperial solid end milling cutter |

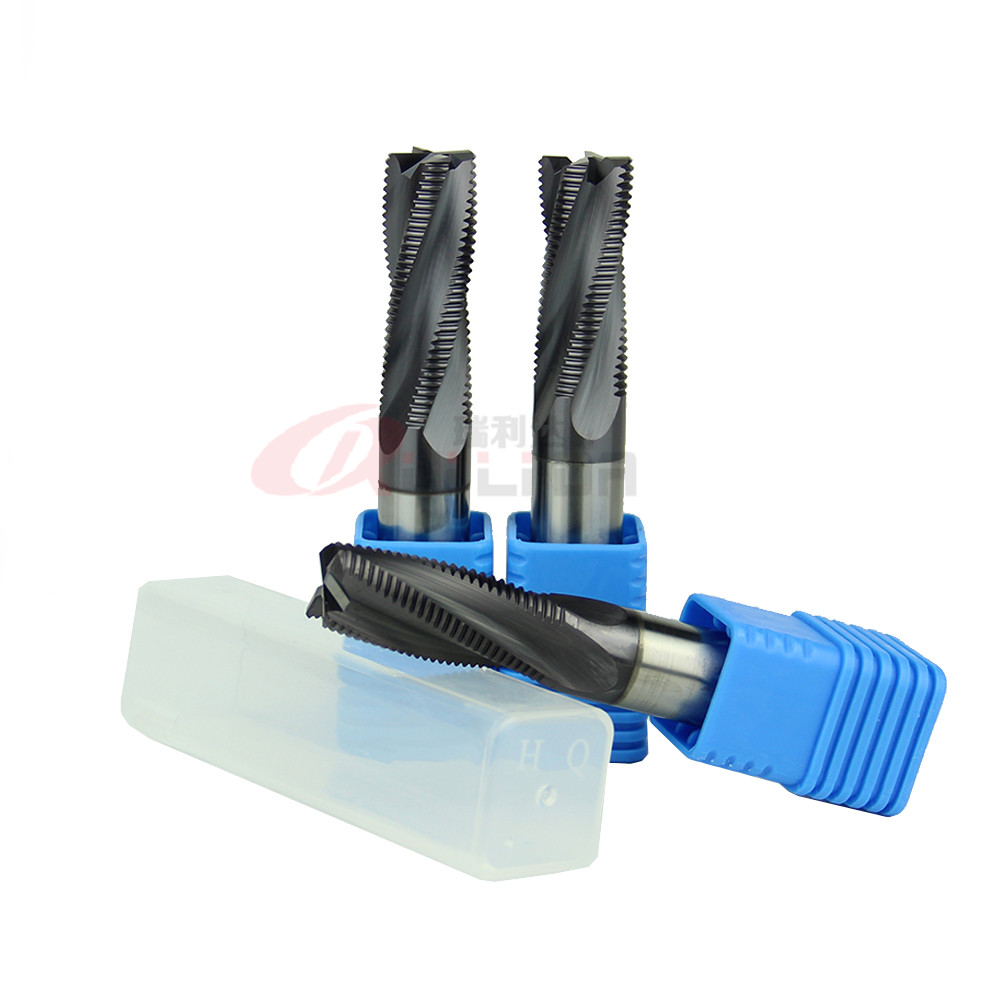

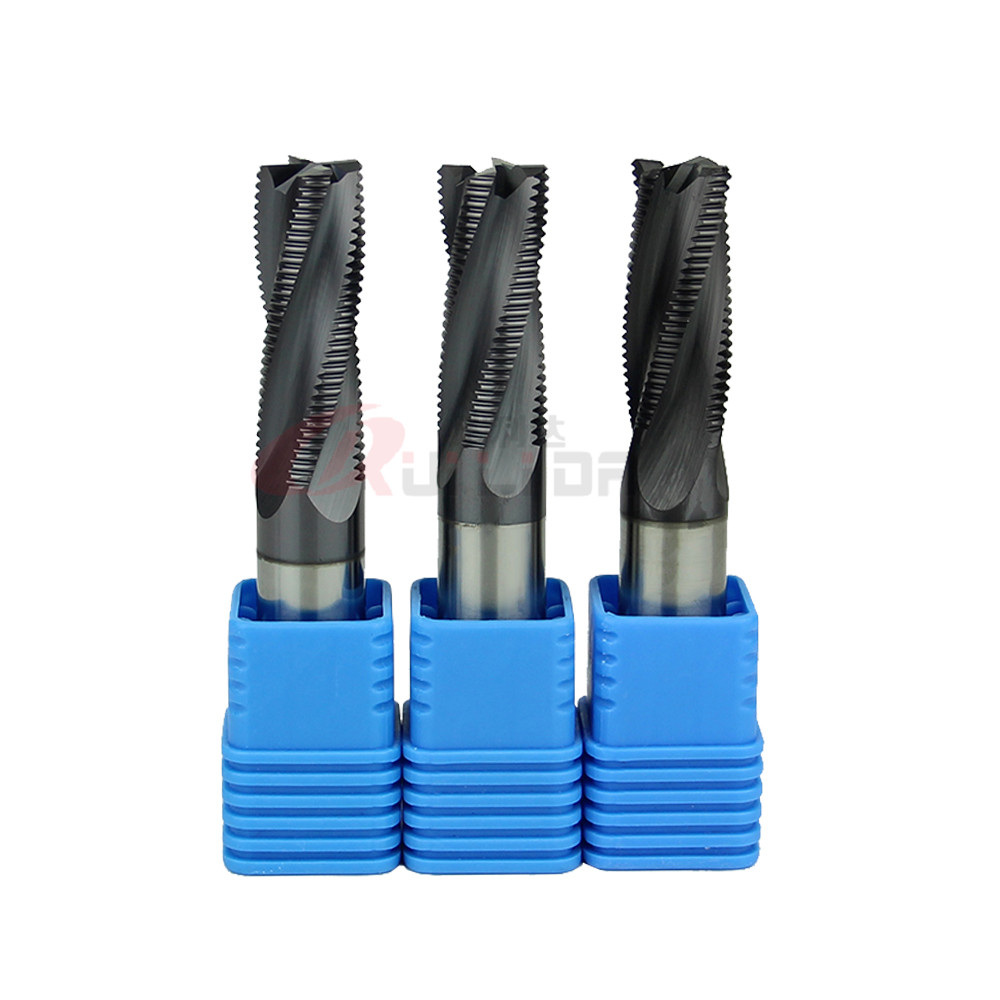

HRC60 4 Flutes 5/8 Inch Roughing End Mill Pitch Imperial Milling Cutters
The advantages and properties of the aluminum-titanium-nitrite coating (AlTiN coating):
Aluminum-titanium-nitrite (AlTiN) is a combination of aluminum, titanium, and nitrogen.
It is an all-around coating that is suitable for universal use. With the AlTiN coating, hard materials such as steel or stainless steel can be processed, and materials such as brass, bronze or plastic can also be processed.
Another advantage over uncoated tools or tools with a TiN coating is that the use of cooling lubricant is not absolutely necessary.
However, the use of coolant generally increases the service life of the milling cutter.
Product name |
HRC60 4 Flutes 5/8 Inch Roughing Imperial Milling Cutters |
Feature | Fine pitch high efficiency |
Suitable for | Steel, stainless steel, titanium, etc. |
Machine type | Rough milling |
Flutes | 4 |
Coating | AlTiN |
Helix angle | 30° |
Co | 12% |
HRA | 92.5 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of the solid carbide end mill.
2. Which CNC grinding machine do you use?
ANCA and machine.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept the payment through CNY.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. Do you have a discount for the large amount?
Yes, we have a discount for large quantities.
Welcome to send inquiries to us.
8. Do you prepare the inch size end mill in stock?
For inch size end mill, we only produce against the order.
