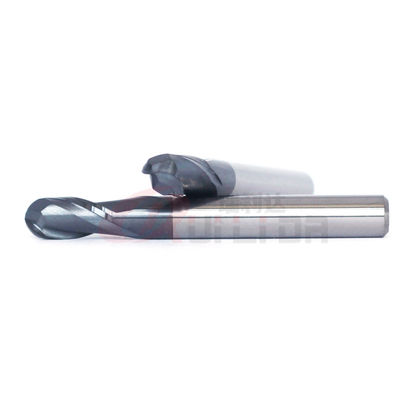

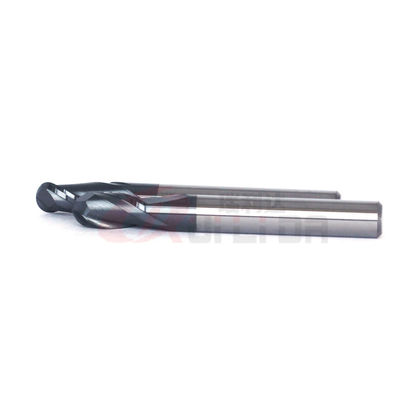

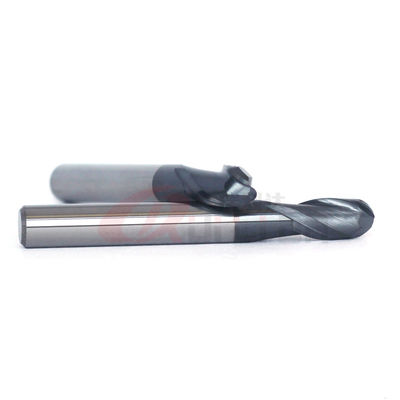

3/16" Imperial Milling Cutters 5mm 6mm Ball Nose End Mill For Aluminum 2 Flute
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 Imperial Milling Cutters 2F Ballnose End Mill 3/16" | Diameter | 3/16" |
|---|---|---|---|
| Flute Length | 3/8" | Overall Length | 2" |
| Shank Diameter | 3/16" | Helix | 30° |
| Flute Type | Sprial | Carbide Rod | ZY10EF Carbide |
| High Light | milling cutter 6mm,5mm milling cutter,Imperial solid milling cutter |
||
Product Description
HRC50 Imperial Milling Cutters 3/16" 2 Flute Ballnose End Mill For Steel
| Product name | Imperial Milling Cutters 2 Flute Ballnose End Mill 3/16" |
| Specification | 3/16*3/8*2*2F |
| Suitable for | Iron, Steel, Stainless Steel, etc |
| Milling type | CNC Milling Machine |
| Flutes | 2 |
| Coating | AlTiN |
| Helix | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Flute Tolerance | Within 0/-0.02mm |
| Shank Tolerance | h6 |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to the workpiece |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band
Step3: Use the air bubble film to encase the plastic pipe
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide end mills established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
They are imported from Australia and Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
For large amount, we can send by air or by sea.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T/Credit Card/PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
