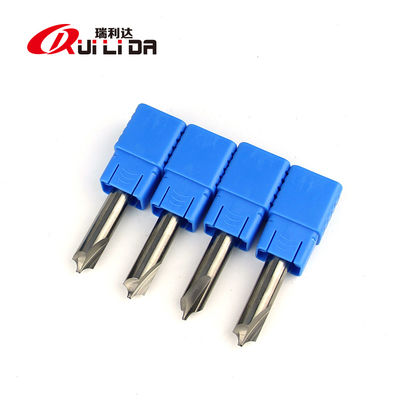

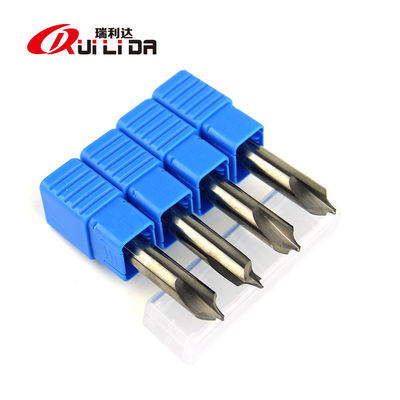

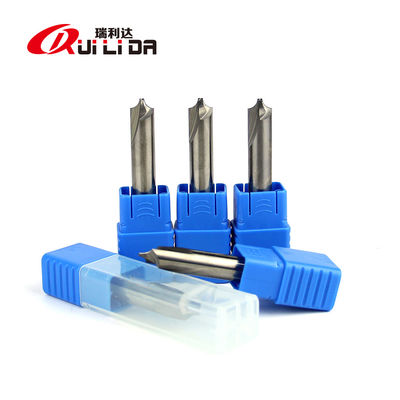

1/2" Radius 3 Flute 2 Flute Corner Radius End Mill For Aluminum Hss HRC50
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 2 Flute Solid Carbide Inner Corner Radius End Mill | Flute Dia | NR4 |
|---|---|---|---|
| Overall Length | 75mm | Shank Dia | 12mm |
| Tolerance | 0/0.02mm | Origin | Jiangsu ,China |
| High Light | 3 flute corner radius end mill HRC50 RLD,hss corner radius end mill HRC50 RLD,1/2 radius corner rounding end mill |
||
Product Description
HRC50 2 Flute Solid Carbide Inner Corner Radius End Mill For Aluminum NR4
| Product name | RLD HRC50 Inner Corner Radius End Mill For Aluminum NR4 |
| Size | NR4×75×12D×2F |
| Suitable for | Aluminum, plastic, brass, acrylic, etc. |
| Feature | Finishing |
| Flute Number | 2 |
| Coating | Uncoated |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band
Step3: Use the air bubble film to encase the plastic pipe
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
Send the goods to your shipping agent in China is also possible.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept CNY.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Can you do OEM?
Yes, we can make the laser engraving and customized label.
Laser engraving is free.
6. Do you have any discount for the large quantity?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
7. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.
