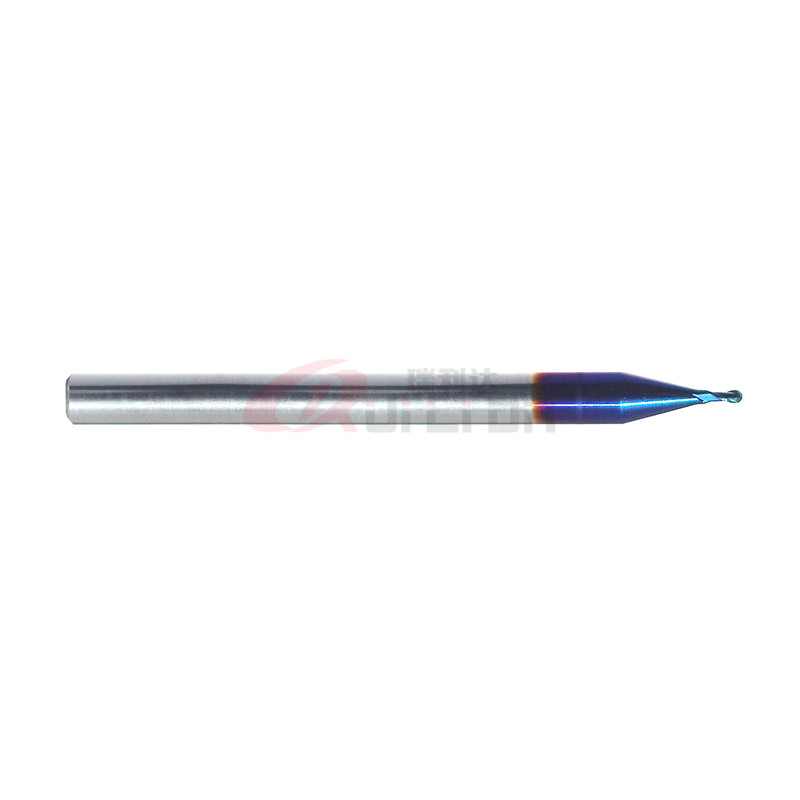

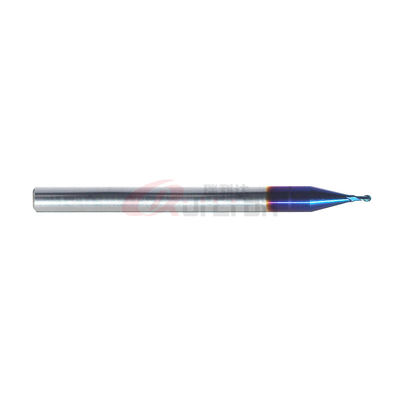

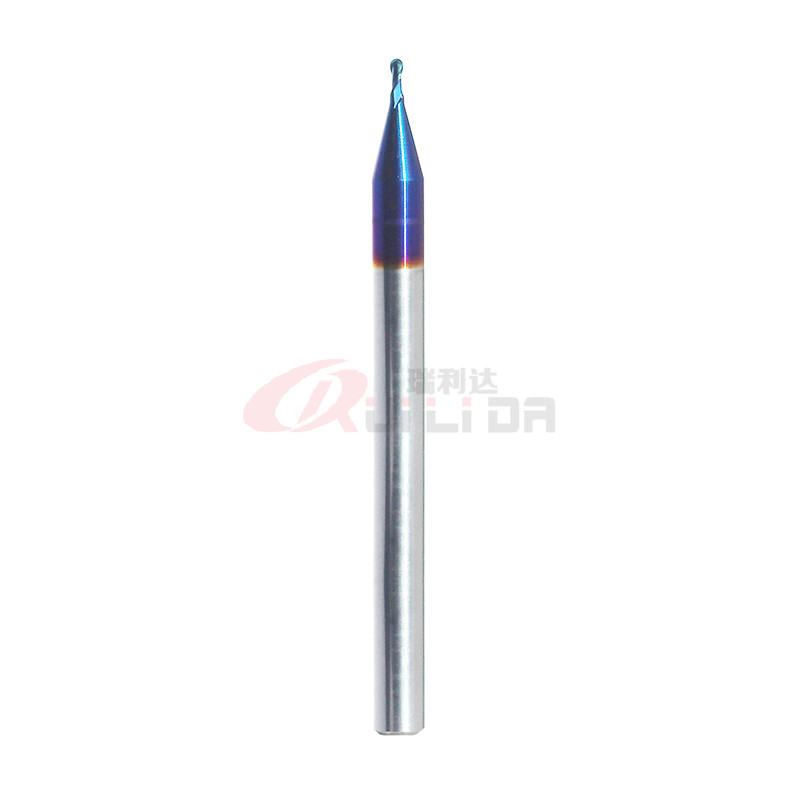

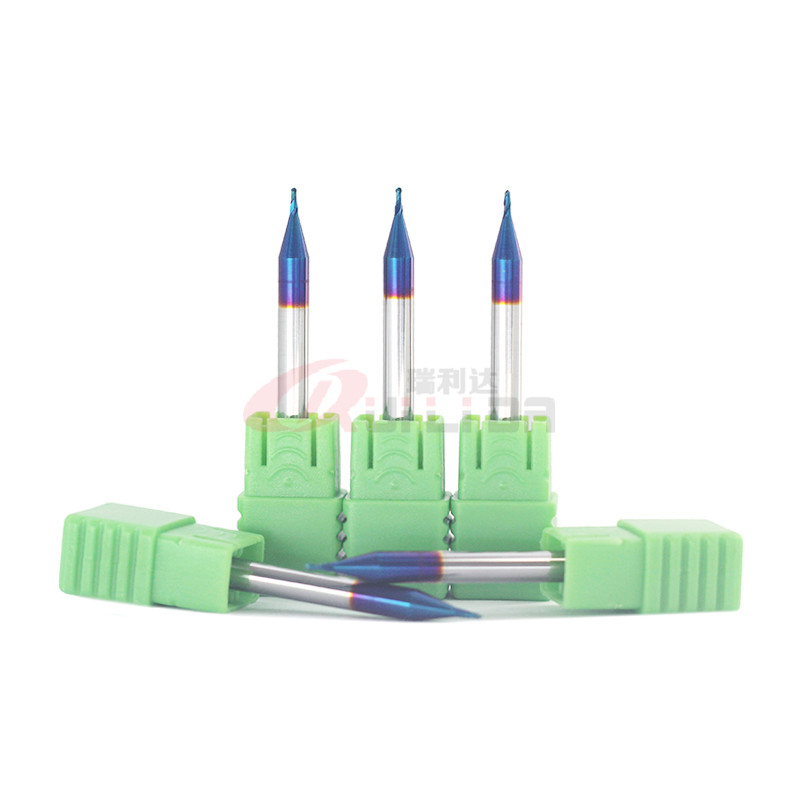

HRC65 High Hardness 1mm 2 Flutes Carbide Ball Nose Endmill For Titanium

  • HRC65 High Hardness 1mm 2 Flutes Carbide Ball Nose Endmill For Titanium
  • HRC65 High Hardness 1mm 2 Flutes Carbide Ball Nose Endmill For Titanium
  • HRC65 High Hardness 1mm 2 Flutes Carbide Ball Nose Endmill For Titanium
  • HRC65 High Hardness 1mm 2 Flutes Carbide Ball Nose Endmill For Titanium
Place of Origin China
Brand Name RLD Tools
Model Number HRC65-R0.5
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 800000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC65 Ball Nose End Mill Diameter R0.5
Flute Length 2mm Overall Length 50mm
Shank Diameter 4mm Helix Angle 30°
Flute NO. 2 Suitable For High Hardness Mold Steel
Coating Blue NaCo Raw Material GU092
High Light

2 Flutes Carbide Ball Nose Endmill

,

HRC65 Carbide Ball Nose Endmill

,

Titanium Ball Nose End Mill
Leave a Message
Product Description

HRC65 High Hardness 1mm 2 Flutes 30 Degree End Mill Carbide Ball Nose Endmill

RLD End Mill Catalog in English.pdf

Our company only cooperates with big reliable carbide rod suppliers.

Only sells the carbide tools produced by ourselves.

So don't need to worry about the stability of quality.



More quantity will enjoy more discount.



We have PG1000, Omega inspection facilities to ensure the precision of each tool.



HRC65 ball nose end mill is suitable for cutting the heated hard steel under the hardness HRC65.



Product name RLD HRC65 2 flutes 1mm R0.5 high hardness ball nose end mill
Specification  R0.5*2*50*4D*2F
Suitable for  High hardness mold steel, titanium,  etc.
Machine type CNC Milling Machine
Flutes 2
Coating  Blue Naco
Helix 30 degree
Co 9%
HRA 93.5-94.3
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to workpiece





       RLD HRC65 2 Flutes Carbide High Hardness Ball Nose End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2

HRC65 High Hardness 1mm 2 Flutes Carbide Ball Nose Endmill For Titanium 0



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a  professional manufacturer of carbide tools which established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA &  machines.



3. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.



4. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.

For large amount, we can send by air or by sea.

We also can send the goods to your shipping agent in China.



5. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



6. Which payment methods do you accept?

We accept T/T/Credit Card/PayPal, etc.

We also can accept CNY.



7. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



8. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, Brazil, etc.


9. How do you ensure the stability of quality?
Our company only cooperates with big rod suppliers.
And we only sell the end mills produced by ourselves.
