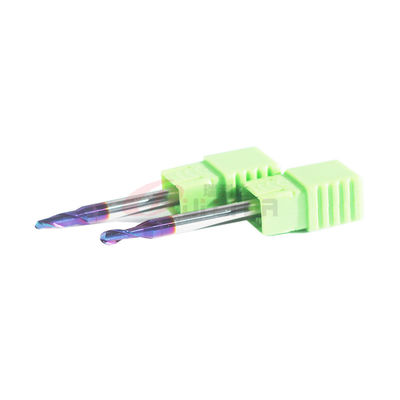

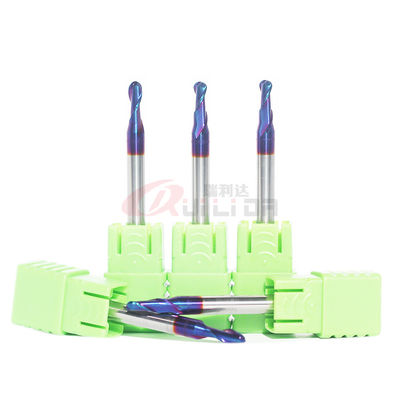

2 Flutes Ball Nose End Mill 2mm 30 Degree For High Hardness Mold Steel

Place of Origin China
Brand Name RLD Tools
Model Number HRC65-R1.0
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 800000pcs/month
Product Details
Product Name HRC65 Ball Nose End Mill Diameter R1.0
Flute Length 4mm Helix Angle 30
Flute NO. 2 Suitable For High Hardness Mold Steel
Coating Blue Nano Raw Material GU092
Grain Size 0.2μm Origin JIANGSU, CHINA
High Light

Ball Nose End Mill 2mm

,

Mold Steel Ball Nose End Mill

,

30 Degree Ball Nose Bit

Leave a Message
Product Description

HRC65 High Hardness 2mm 2 Flutes 30 Degree Carbide Ball Nose End Mill for Hard Steel

RLD End Mill Catalog in English.pdf



Good wear resistance by high-quality blue nano PVD coating
High precision edge tolerance
Reinforced edge design for preventing edge chipping
Outstanding performance at high-speed machining by ultra-fine micro-grain carbide (0.2μm)



HRC65 ball nose end mill is suitable for cutting the heated hard steel under the hardness HRC65.



Product name HRC65 2 flutes 2mm R1.0 high hardness ball nose end mill
Specification  R1.0*4*50*4D*2F
Suitable for  High hardness mold steel, titanium,  etc.
Machine type CNC Milling Machine
Flutes 2
Coating  Blue Naco
Helix 30°
Co 9%
HRA 93.5-94.3
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to workpiece





       RLD HRC65 2 Flutes Carbide High Hardness Ball Nose End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2

2 Flutes Ball Nose End Mill 2mm 30 Degree For High Hardness Mold Steel 0
